Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
28153CFIXED IND 15UH 4.77A 28MOHM SMD |
3,018 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | - | 4.77 A | - | Unshielded | 28mOhm Max | 31 @ 1MHz | 17.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28155CFIXED IND 1.5MH 410MA 2.62OHM SM |
1,217 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 mH | - | 410 mA | - | Unshielded | 2.62Ohm Max | 19.8 @ 800kHz | 3.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28332CFIXED IND 3.3UH 9.3A 7.5MOHM SMD |
4,029 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | - | 9.3 A | - | Unshielded | 7.5mOhm Max | 34.6 @ 1MHz | 42MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28333CFIXED IND 33UH 3.22A 63MOHM SMD |
3,495 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | - | 3.22 A | - | Unshielded | 63mOhm Max | 42.8 @ 1MHz | 11.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

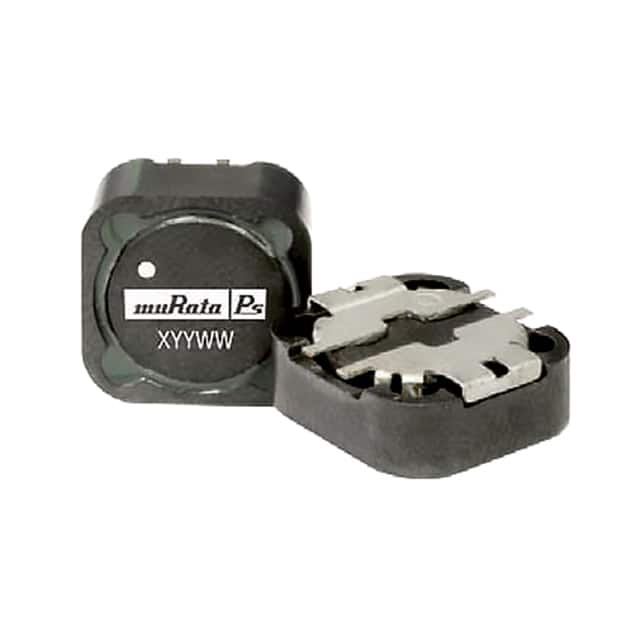

47100SCFIXED IND 10UH 3.8A 32.3MOHM SMD |
2,177 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | - | Shielded | 32.3mOhm Max | 22 @ 1MHz | 22MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47101SCFIXED IND 100UH 1.3A 267MOHM SMD |
3,711 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.3 A | - | Shielded | 267mOhm Max | 20 @ 800kHz | 8MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47220SCFIXED IND 22UH 2.7A 62.9MOHM SMD |
3,027 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.7 A | - | Shielded | 62.9mOhm Max | 29 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47221SCFIXED IND 220UH 800MA 629MOHM SM |
3,000 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 800 mA | - | Shielded | 629mOhm Max | 20 @ 800kHz | 6MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47330SCFIXED IND 33UH 2.2A 91.1MOHM SMD |
4,920 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 2.2 A | - | Shielded | 91.1mOhm Max | 23 @ 1MHz | 13MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47470SCFIXED IND 47UH 1.9A 168MOHM SMD |
2,601 |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.9 A | - | Shielded | 168mOhm Max | 23 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
