Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW04CAR45K00DFIXED IND 450NH 200MA 1.23OHM SM |
2,448 |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 450 nH | ±10% | 200 mA | - | Unshielded | 1.23Ohm Max | - | 850MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR51K00DFIXED IND 510NH 200MA 1.31OHM SM |
4,337 |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 510 nH | ±10% | 200 mA | - | Unshielded | 1.31Ohm Max | - | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
#FSLM2520-820J=P2FIXED IND 82UH 65MA 12.5 OHM SMD |
2,422 |
|
Datasheet | LLM2520 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 65 mA | - | - | 12.5Ohm Max | 25 @ 2.52MHz | 11MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|
|
FDUE1040D-H-1R0M=P3FIXED IND 1UH 18A 2.515 MOHM SMD |
4,452 |
|
Datasheet | FDUE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 18 A | 16A | Shielded | 2.515mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|

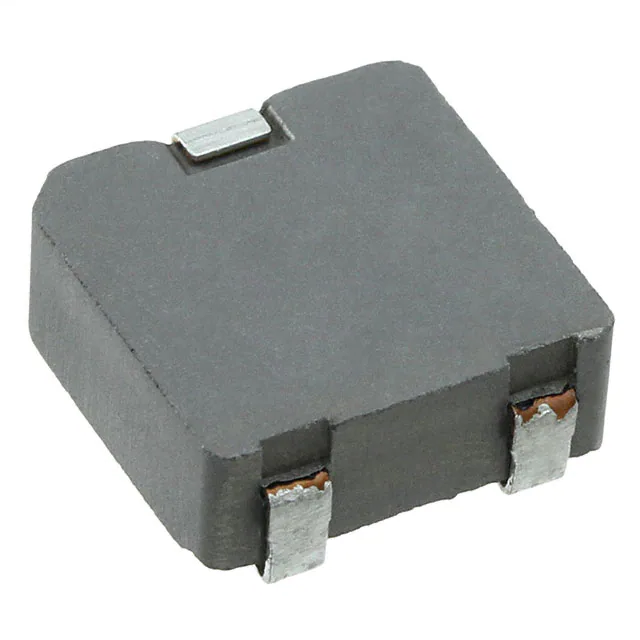

FDA1254-H-4R7M=P3FIXED IND 4.7UH 10.2A 8.8MOHM SM |
2,698 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 10.2 A | 11.2A | Shielded | 8.8mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
|
FDA1055-H-3R3M=P3FIXED IND 3.3UH 11.2A 7.3MOHM SM |
3,006 |
|
Datasheet | FDA1055 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.2 A | 11.7A | Shielded | 7.3mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.425" W (10.80mm x 10.80mm) | 0.217" (5.50mm) |
|
MDH12577C-330MA=P3FIXED IND 33UH 2.7A 39 MOHM SMD |
2,800 |
|
Datasheet | MDH12577C | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 4A | Unshielded | 39mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
FDSD0415-H-1R0M=P3FIXED IND 1UH 4.5A 41 MOHM SMD |
4,047 |
|
Datasheet | FDSD0415 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 4.5 A | 5.3A | Shielded | 41mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.059" (1.50mm) |
|
FDVE1040-H-3R3M=P3FIXED IND 3.3UH 9A 10.1MOHM SMD |
3,892 |
|
Datasheet | FDVE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 3.3 µH | ±20% | 9 A | 9.8A | Unshielded | 10.1mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
DFE201208S-1R0M=P2FIXED IND 1UH 2.1A 84 MOHM SMD |
3,262 |
|
Datasheet | DFE201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.1 A | 2.7A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
