Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH6PPN1R5N43LFIXED IND 1.5UH 4.15A 10MOHM SMD |
2,246 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 4.15 A | 6.5A | Shielded | 10mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

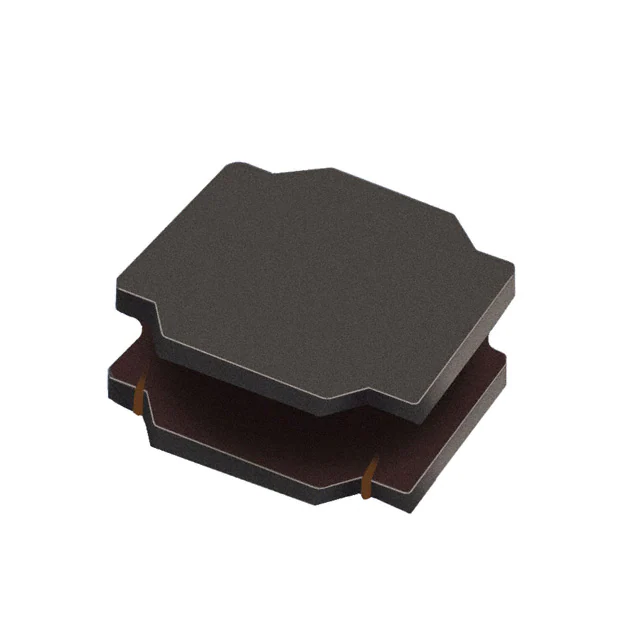

LQH88PN1R5N38LFIXED IND 1.5UH 7.1A 8 MOHM SMD |
1,387 |
|
Datasheet | LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 7.1 A | 8.5A | Shielded | 8mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
LQH3NPN221MG0LFIXED IND 220UH 130MA 16.8OHM SM |
1,637 |
|
Datasheet | LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 130 mA | 100mA | Shielded | 16.8Ohm Max | - | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LQP15MN3N2W02DFIXED IND 3.2NH 190MA 400MOHM SM |
4,722 |
|
Datasheet | LQP15 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thick Film | - | 3.2 nH | ±0.05nH | 190 mA | - | - | 400mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.018" (0.45mm) |
|
LQH3NPN1R0MMREFIXED IND 1UH 2.15A 50.4MOHM SMD |
1,027 |
|
Datasheet | LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.15 A | 1.6A | Shielded | 50.4mOhm Max | - | 135MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQM2HPN1R0MJCLFIXED IND 1UH 1.5A 108 MOHM SMD |
1,886 |
|
Datasheet | LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | - | Shielded | 108mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM2HPN2R2NJCLFIXED IND 2.2UH 1A 219 MOHM SMD |
1,349 |
|
Datasheet | LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±30% | 1 A | - | Shielded | 219mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQM31PN1R0MC0LFIXED IND 1UH 1.1A 175 MOHM SMD |
4,090 |
|
Datasheet | LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PN1R5MC0LFIXED IND 1.5UH 1A 213 MOHM SMD |
3,400 |
|
Datasheet | LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1 A | - | Shielded | 213mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PN2R2MC0LFIXED IND 2.2UH 900MA 313MOHM SM |
3,734 |
|
Datasheet | LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 900 mA | - | Shielded | 313mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
