Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH6045C-680MA=P3FIXED IND 68UH 800MA 220MOHM SMD |
3,164 |
|
Datasheet | MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 800 mA | 720mA | Shielded | 220mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
1274AS-H-1R5N=P3FIXED IND 1.5UH 8.9A 7.7MOHM SMD |
4,798 |
|
Datasheet | DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.9 A | 15.3A | Shielded | 7.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

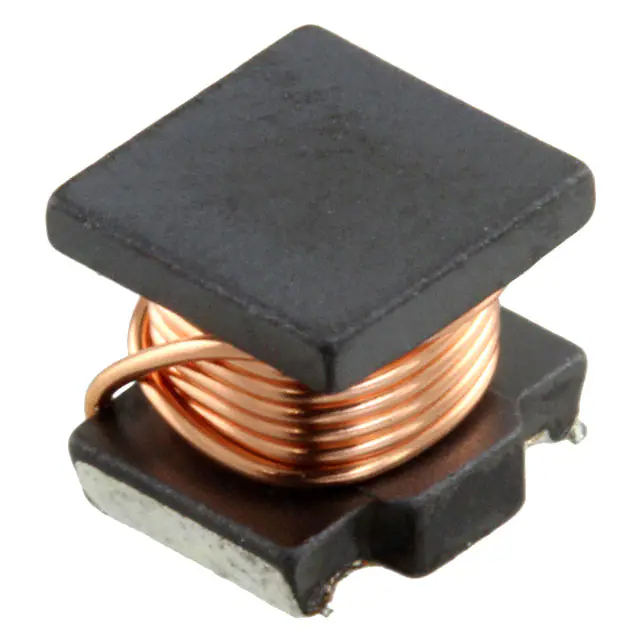

LQH55DN1R5M03LFIXED IND 1.5UH 3.7A 30.8MOHM SM |
3,814 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.7 A | - | Unshielded | 30.8mOhm Max | - | 110MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
DFEH7030D-1R0M=P3FIXED IND 1UH 9.1A 9.9 MOHM SMD |
1,441 |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1 µH | ±20% | 9.1 A | 12A | Shielded | 9.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-1R5M=P3FIXED IND 1.5UH 7.6A 15MOHM SMD |
1,136 |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1.5 µH | ±20% | 7.6 A | 9.7A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-5R6M=P3FIXED IND 5.6UH 3.8A 54MOHM SMD |
4,355 |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 5.6 µH | ±20% | 3.8 A | 5.4A | Shielded | 54mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-6R8M=P3FIXED IND 6.8UH 3.5A 59MOHM SMD |
1,367 |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 5.2A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEH7030D-8R2M=P3FIXED IND 8.2UH 3.1A 78MOHM SMD |
4,773 |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 8.2 µH | ±20% | 3.1 A | 4.2A | Shielded | 78mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MDH10060C-471MA=P3FIXED IND 470UH 560MA 750MOHM SM |
4,596 |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 560 mA | 560mA | Shielded | 750mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-680MA=P3FIXED IND 68UH 1.7A 91 MOHM SMD |
3,392 |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.7 A | 1.6A | Shielded | 91mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
