Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg "1276AS-H-100M=P2")
|
1276AS-H-100M=P2FIXED IND 10UH 800MA 588MOHM SMD |
54,131 |
|
Datasheet | DFE322510C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 800 mA | 1A | Shielded | 588mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
-DFE18SAN_G0.jpg "DFE18SANR47MG0L")
|
DFE18SANR47MG0LFIXED IND 470NH 2.6A 54 MOHM SMD |
34,728 |
|
Datasheet | DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 470 nH | ±20% | 2.6 A | 3.6A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQH2HPN4R7MGRLFIXED IND 4.7UH 1A 360 MOHM SMD |
7,885 |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1 A | 1.09A | Shielded | 360mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-DFE18SAN_E0.jpg "DFE18SAN1R0ME0L")
|
DFE18SAN1R0ME0LFIXED IND 1UH 1.6A 144 MOHM SMD |
3,329 |
|
Datasheet | DFE18SAN | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | - | Metal | 1 µH | ±20% | 1.6 A | 2A | Shielded | 144mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
-Height-1.20mm.jpg "1277AS-H-4R7M=P2")
|
1277AS-H-4R7M=P2FIXED IND 4.7UH 1.4A 180MOHM SMD |
26,034 |
|
Datasheet | DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.4 A | 1.8A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
1277AS-H-1R0M=P2FIXED IND 1UH 3.1A 45 MOHM SMD |
16,242 |
|
Datasheet | DFE322512C | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.1 A | 3.7A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

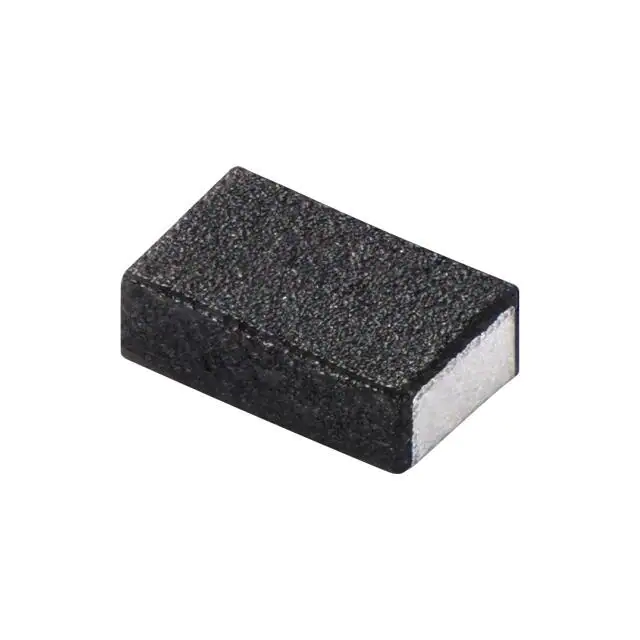

DFE21CCN2R2MELLFIXED IND 2.2UH 2100MA NONAUTO |
10,417 |
|
Datasheet | DFE21CCN_EL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.8 A | 2.1A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
LQM2MPZR10MJHLFIXED IND 100NH 4A 19 MOHM SMD |
12,804 |
|
Datasheet | LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 4 A | 4A | Shielded | 19mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQH5BPN2R2NT0LFIXED IND 2.2UH 2.6A 36 MOHM SMD |
10,462 |
|
Datasheet | LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.6 A | 4A | Shielded | 36mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
LQH3NPZ2R2MMELFIXED IND 2.2UH 1.22A 78MOHM SMD |
14,163 |
|
Datasheet | LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | - | Shielded | 78mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
