Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHNR4030-470M-00000FIXED IND 47UH 720MA 579 MOHM SM |
10,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 720 mA | 950mA | Shielded | 579mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-330M-00000FIXED IND 33UH 840MA 429 MOHM SM |
10,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 840 mA | 1.1A | Shielded | 429mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-101M-00000FIXED IND 100UH 450MA 1.495 OHM |
10,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.495Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CHNR4030-560M-00000FIXED IND 56UH 650MA 722 MOHM SM |
10,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 650 mA | 850mA | Shielded | 722mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
WB0402T19NSJWW IND 0402 19NH 5% |
56,000 |
|
Datasheet | WB | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 19 nH | ±5% | 400 mA | - | Unshielded | 200mOhm Max | 24 @ 250MHz | 3.04GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
WB0603TR39SJWW IND 0603 390NH 5% |
16,000 |
|
Datasheet | WB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 100 mA | - | Unshielded | 4.35Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
CTTF0402F-12NJFIXED IND 12NH5% SMD |
40,000 |
|
Datasheet | CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 12 nH | ±5% | 180 mA | - | Unshielded | 1.6Ohm Max | 13 @ 500MHz | 3.7GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-1N2BFIXED IND 1.2NH0.1NH SMD |
20,000 |
|
Datasheet | CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-0N8BFIXED IND 0.8NH0.1NH SMD |
10,000 |
|
Datasheet | CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.8 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
NPIS48LP220MTRFIND SMT 4.0X4.0X1.8 22UH 700MA 0 |
57,000 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 900mA | Shielded | 290mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.070" (1.80mm) |
|
|
CHNR5040-680M-00000FIXED IND 68UH 800MA 520 MOHM SM |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 800 mA | 900mA | Shielded | 520mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-330M-00000FIXED IND 33UH 1.2A 244 MOHM SMD |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 244mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-101M-00000FIXED IND 100UH 700mA 728 MOHM |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 700 mA | 750mA | Shielded | 728mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-560M-00000FIXED IND 56UH 800MA 494 MOHM SM |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 800 mA | 1A | Shielded | 494mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-470M-00000FIXED IND 47UH 1A 354 MOHM SMD |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1 A | 1.1A | Shielded | 354mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
CHNR5040-151M-00000FIXED IND 150UH 600MA 975 MOHM S |
9,000 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 600 mA | 650mA | Shielded | 975mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
WRFI1206-S-27NJTWirewound RF Inductor,1206,27nH, |
38,000 |
|
Datasheet | WRFI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 110mOhm | 50 @ 300MHz | 1.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1206 | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
|
WRFI1206-S-56NJTWirewound RF Inductor,1206,56nH, |
38,000 |
|
Datasheet | WRFI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 140mOhm | 55 @ 300MHz | 1.45GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1206 | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|

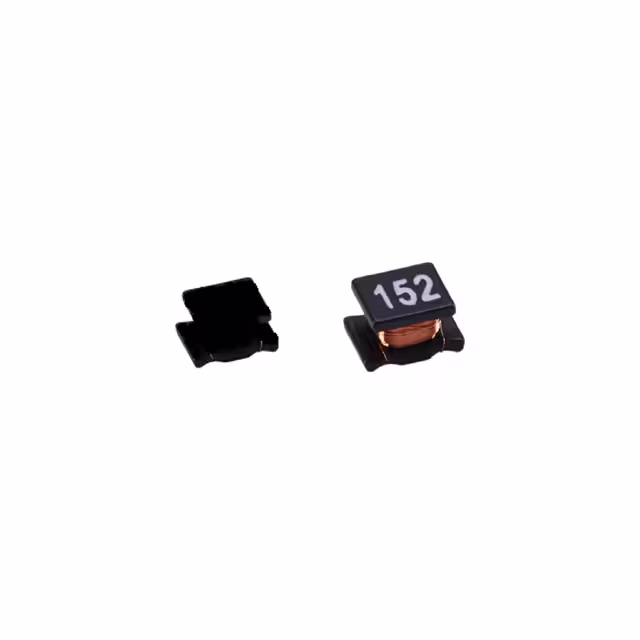

VLH322515-2R2MFIXED IND 2.2UH 790MA 126MOHM SM |
2,000 |
|
Datasheet | VLH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 790 mA | - | Unshielded | 126mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.073" (1.85mm) |
|

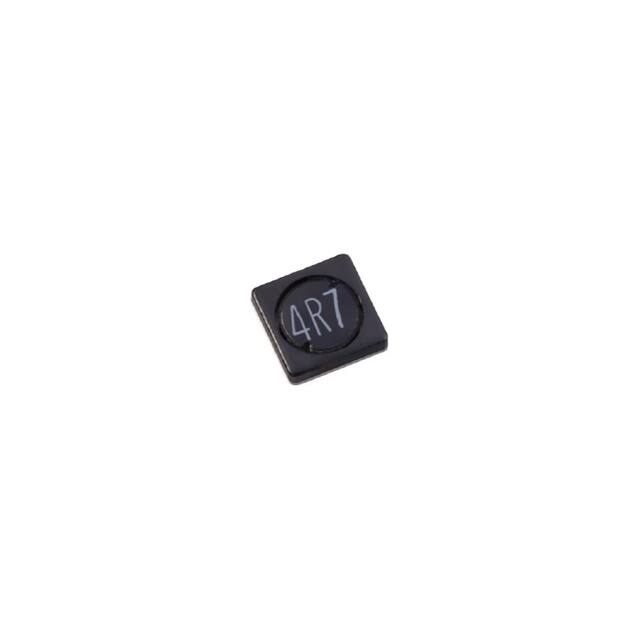

PCF4020NT4R7FIXED IND 4.7UH 1.1A 146MOHM SMD |
10,500 |
|
Datasheet | PCF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.1 A | - | Shielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
