Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WB1008T39NSJWW IND 1008 39NH 5% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 60 @ 350MHz | 1.5GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008T4R7SJWW IND 1008 4700NH 5% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 µH | ±5% | 260 mA | - | Unshielded | 4Ohm Max | 20 @ 25MHz | 90MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008TR75SJWW IND 1008 750NH 5% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 750 nH | ±5% | 360 mA | - | Unshielded | 1.54Ohm Max | 45 @ 100MHz | 360MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB0805TR33SGWW IND 0805 330NH 2% |
3,000 |
|
Datasheet | WB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 300 mA | - | Unshielded | 1.4Ohm Max | 48 @ 250MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

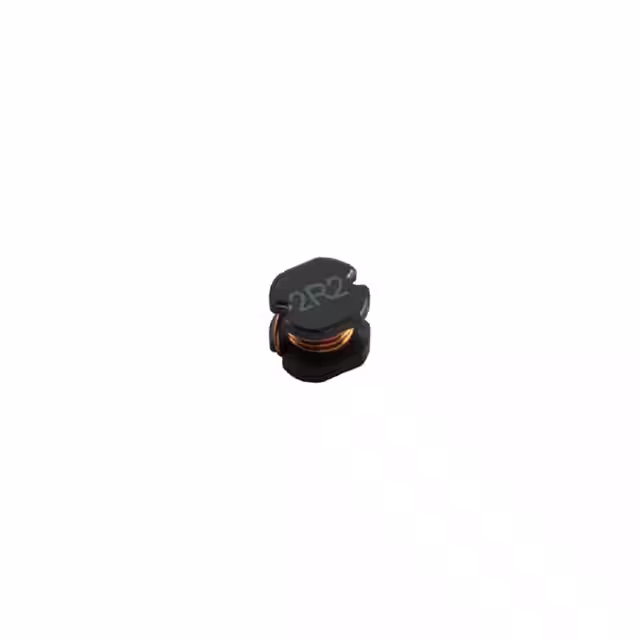

PCD0302MT4R7FIXED IND 4.7UH 1A 170 MOHM SMD |
2,000 |
|
Datasheet | PCD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
WB1008TR27SGWW IND 1008 270NH 2% |
16,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 500 mA | - | Unshielded | 910mOhm Max | 45 @ 100MHz | 600MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008T27NSGWW IND 1008 27NH 2% |
14,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008T56NSGWW IND 1008 56NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008T82NSGWW IND 1008 82NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 1 A | - | Unshielded | 220mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008TR47SGWW IND 1008 470NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR18SGWW IND 1008 180NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR10SGWW IND 1008 100NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR12SGWW IND 1008 120NH 2% |
12,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR39SGWW IND 1008 390NH 2% |
10,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±2% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008T2R7SGWW IND 1008 2700NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 µH | ±2% | 290 mA | - | Unshielded | 3.2Ohm Max | 22 @ 25MHz | 140MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008TR82SGWW IND 1008 820NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±2% | 400 mA | - | Unshielded | 1.61Ohm Max | 45 @ 100MHz | 350MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR91SGWW IND 1008 910NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 910 nH | ±2% | 380 mA | - | Unshielded | 1.68Ohm Max | 35 @ 50MHz | 320MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008TR36SGWW IND 1008 360NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 360 nH | ±2% | 660 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 530MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
|
|
WB1008T22NSGWW IND 1008 22NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.083" (2.10mm) |
|
|
WB1008TR62SGWW IND 1008 620NH 2% |
4,000 |
|
Datasheet | WB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±2% | 300 mA | - | Unshielded | 1.4Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.110" L x 0.079" W (2.79mm x 2.00mm) | 0.080" (2.03mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
