Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTLQ2220CF-103M10MH SMD UNSHLD POWER INDUCTOR |
695 |
|
Datasheet | CTLQ2220CF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 mH | ±20% | 50 mA | - | Unshielded | 140Ohm Max | - | 500kHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
SER2010-102MLDFIXED IND 1UH 45A 1MOHM SM |
6,883 |
|
Datasheet | SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 45 A | 42A | Shielded | 1mOhm Max | - | 81MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
FP1008R7-R150-RFIXED IND 150NH 72A 0.12MOHM SMD |
3,984 |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 72 A | 56A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
FP1008R7-R120-RFIXED IND 120NH 72A 0.12MOHM SMD |
4,023 |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 72 A | 70A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
|
SER2010-202MLDFIXED IND 2UH 45A 1MOHM SM |
3,078 |
|
Datasheet | SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±20% | 45 A | 27A | Shielded | 1mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-501MLDFIXED IND 500NH 45A 1MOHM SM |
362 |
|
Datasheet | SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 500 nH | ±20% | 45 A | 81A | Shielded | 1mOhm | - | 148MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-601MLDFIXED IND 600NH 45A 1MOHM SM |
221 |
|
Datasheet | SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 600 nH | ±20% | 45 A | 70A | Shielded | 1mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-122MLDFIXED IND 1.2UH 45A 1MOHM SM |
169 |
|
Datasheet | SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±20% | 45 A | 37A | Shielded | 1mOhm Max | - | 69MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
DRAP125-220-RFIXED IND 22UH 3.95A 42 MOHM SMD |
598 |
|
Datasheet | DRAP125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 3.95 A | 4.74A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.240" (6.10mm) |
|

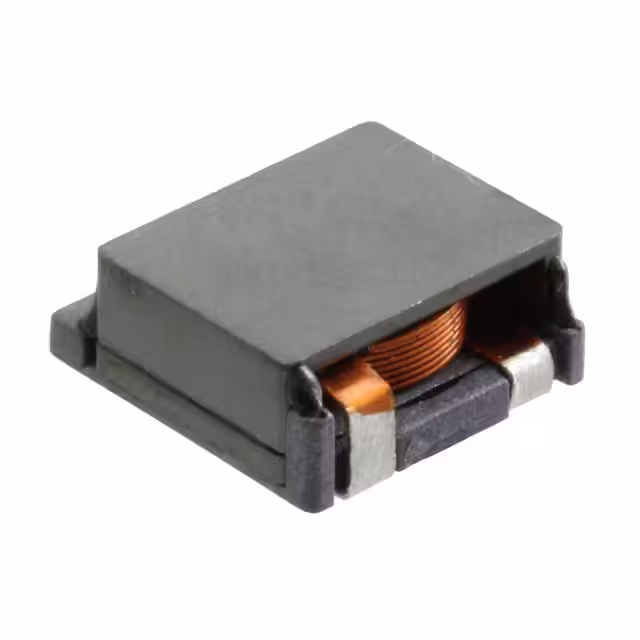

HM65-8R2LFTR13FIXED IND 8.2UH 4.5A 11.4 MOHM |
324 |
|
Datasheet | HM65 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 8.2 µH | ±20% | 4.5 A | - | Unshielded | 11.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.220" (5.60mm) |
|
DRA74-821-RFIXED IND 820UH 279MA 3.63OHM SM |
3,165 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 279 mA | 327mA | Shielded | 3.63Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
PE-53663NLFIXED IND 9.3UH 7.2A 18.7MOHM SM |
2,892 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.3 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PM2206.331NLTFIXED IND 330NH 19A 4.8 MOHM SMD |
1,976 |
|
Datasheet | PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 19 A | 34A | Unshielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
HM72E-12200HLFTR13FIXED IND 20UH 5A 40.5 MOHM SMD |
610 |
|
Datasheet | HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 20 µH | ±20% | 5 A | 8A | Unshielded | 40.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
7843331200WE-CHSA SMT HIGH CURRENT INDUCTO |
110 |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 5.6 A | 9.1A | Shielded | 33.2mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
B82111B0000C013FIXED IND 8UH 3A 25 MOHM TH |
5,056 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 3 A | - | Unshielded | 25mOhm | - | 145MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
B82111B0000C012FIXED IND 6UH 4A 17 MOHM TH |
3,099 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 4 A | - | Unshielded | 17mOhm | - | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - |
|
B82111B0000C014FIXED IND 17UH 2A 63 MOHM TH |
155 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 17 µH | ±20% | 2 A | - | Unshielded | 63mOhm | - | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
|
XEL4030-471MECFIXED IND 470NH 15.6A 4.6MOHM SM |
52,222 |
|
Datasheet | XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 15.6 A | 15.5A | Shielded | 4.6mOhm Max | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
XAL4030-332MECFIXED IND 3.3UH 6.6A 28.6MOHM SM |
49,497 |
|
Datasheet | XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.6 A | 5.5A | Shielded | 28.6mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
