Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

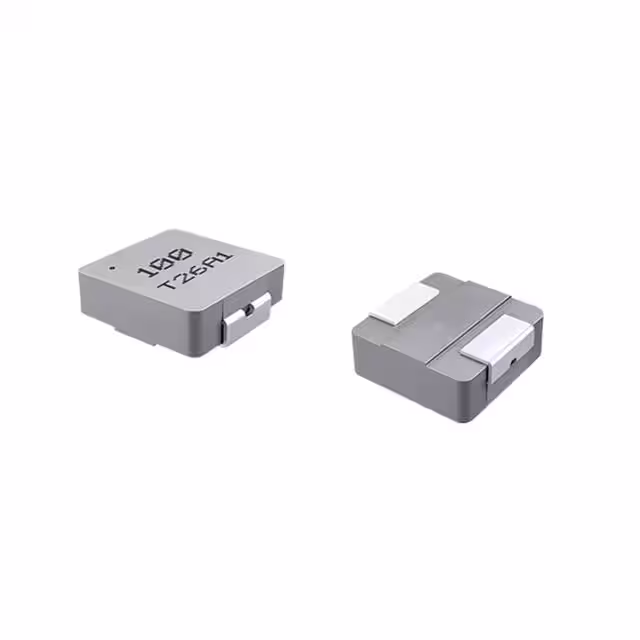

CSHB0412-100MSMD MOLDING POWER CHOKE |
1,000 |
|
Datasheet | CSHB0412 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 1.75 A | 1.75A | Shielded | 285mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
CSHB0421R-R68MSMD MOLDING POWER CHOKE |
995 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 680 nH | ±20% | 10.5 A | 11A | Shielded | 10.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
0603LS-151XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
992 |
|
Datasheet | 0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 150 nH | ±2% | 1.3 A | - | Unshielded | 150mOhm Max | 15 @ 7.9MHz | 106MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
CSHB0421-3R3MSMD MOLDING POWER CHOKE |
990 |
|
Datasheet | CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 5 A | 5A | Shielded | 36.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0412-2R2MSMD MOLDING POWER CHOKE |
985 |
|
Datasheet | CSHB0412 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 4.2 A | 4.2A | Shielded | 63mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
|
CSHB0421R-R33MSMD MOLDING POWER CHOKE |
980 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 330 nH | ±20% | 12 A | 14A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
CSHB0410-100MSMD MOLDING POWER CHOKE |
974 |
|
Datasheet | CSHB0410 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 1.65 A | 1.9A | Shielded | 312mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
CSHB0430R-1R0MSMD MOLDING POWER CHOKE |
973 |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1 µH | ±20% | 11.5 A | 9.6A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421-2R2MSMD MOLDING POWER CHOKE |
963 |
|
Datasheet | CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 5.5 A | 5.5A | Shielded | 29.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-3R3MSMD MOLDING POWER CHOKE |
961 |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 7.5 A | 6.5A | Shielded | 30.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-R22MSMD MOLDING POWER CHOKE |
958 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 220 nH | ±20% | 15 A | 18A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-5R6MSMD MOLDING POWER CHOKE |
952 |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 5.6 µH | ±20% | 6 A | 5.5A | Shielded | 58.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-R56MSMD MOLDING POWER CHOKE |
935 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 560 nH | ±20% | 11 A | 12A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
CSHB0415-4R7MSMD MOLDING POWER CHOKE |
921 |
|
Datasheet | CSHB0415 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 3.8 A | 3.8A | Shielded | 92mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
CSHB0421-100MSMD MOLDING POWER CHOKE |
920 |
|
Datasheet | CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 2.5 A | 2.5A | Shielded | 129mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
0603LS-331XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
847 |
|
Datasheet | 0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 330 nH | ±2% | 560 mA | - | Unshielded | 380mOhm Max | 15 @ 7.9MHz | 725MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0603LS-223XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
832 |
|
Datasheet | 0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 22 µH | ±2% | 130 mA | - | Unshielded | 8.81Ohm Max | 22 @ 2.5MHz | 19MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
CSHB0430R-150MSMD MOLDING POWER CHOKE |
783 |
|
Datasheet | CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.5 A | 2.5A | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-150MSMD MOLDING POWER CHOKE |
732 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 255mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0421R-R47MSMD MOLDING POWER CHOKE |
728 |
|
Datasheet | CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 470 nH | ±20% | 11.5 A | 13A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
