Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPS5015-225MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,247 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 2.2 mH | ±20% | 65 mA | 72mA | Shielded | 36Ohm Max | - | 2.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-154MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,245 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 150 µH | ±20% | 250 mA | 230mA | Shielded | 3.4Ohm Max | - | 9.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-333MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,212 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 33 µH | ±20% | 500 mA | 550mA | Shielded | 750mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-155MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,117 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.5 mH | ±20% | 90 mA | 80mA | Shielded | 25Ohm Max | - | 2.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-224MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,054 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 220 µH | ±20% | 220 mA | 200mA | Shielded | 4.5Ohm Max | - | 7.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-562MRCPOWER INDUCTOR, SHIELDED, 20% TO |
1,039 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 5.6 µH | ±20% | 1.1 A | 1.6A | Shielded | 175mOhm Max | - | 67MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-132MRCPOWER INDUCTOR, SHIELDED, 20% TO |
932 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1.3 µH | ±20% | 1.7 A | 2.5A | Shielded | 65mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-472MRCPOWER INDUCTOR, SHIELDED, 20% TO |
756 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.6A | Shielded | 150mOhm Max | - | 73MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-564MRCPOWER INDUCTOR, SHIELDED, 20% TO |
606 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 560 µH | ±20% | 140 mA | 100mA | Shielded | 8.5Ohm Max | - | 4.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-474MRCPOWER INDUCTOR, SHIELDED, 20% TO |
602 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 470 µH | ±20% | 160 mA | 120mA | Shielded | 7.5Ohm Max | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-684MRCPOWER INDUCTOR, SHIELDED, 20% TO |
586 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 680 µH | ±20% | 130 mA | 100mA | Shielded | 10.6Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
LPS5015-334MRCPOWER INDUCTOR, SHIELDED, 20% TO |
566 |
|
Datasheet | LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 330 µH | ±20% | 170 mA | 150mA | Shielded | 7.4Ohm Max | - | 5.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
CTCDRH125F-221M220UH SMD SHIELDED POWR INDUCTOR |
490 |
|
Datasheet | CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | - | 800mA | Shielded | 400mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
VLF403215MT-1R5NFIXED IND 1.5UH 3.38A 36MOHM SMD |
435 |
|
Datasheet | VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.38 A | 2.46A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
L101247A-100LFIXED IND 100NH 78A 0.125MOHM SM |
300 |
|
Datasheet | L101247A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 78 A | 129A | Unshielded | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | 0.472" (12.00mm) |
|
|
L101247A-150LFIXED IND 150NH 78A 0.125MOHM SM |
300 |
|
Datasheet | L101247A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 78 A | 84A | Unshielded | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | 0.472" (12.00mm) |
|

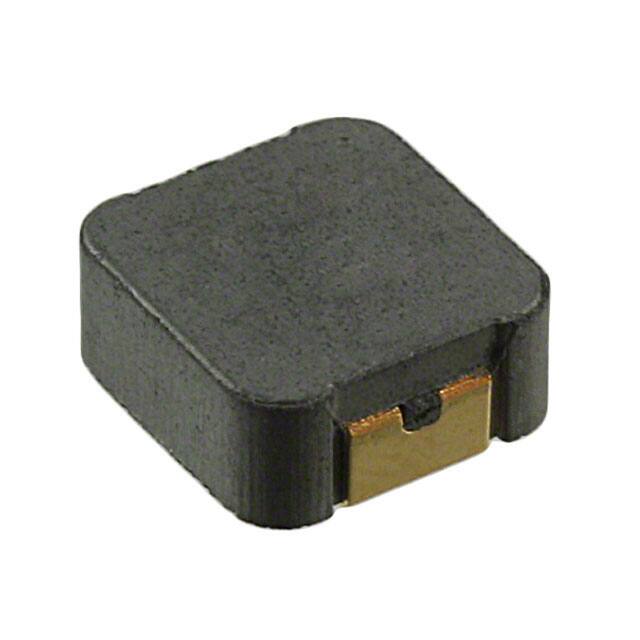

HM72B-066R8LFTR13FIXED IND 6.8UH 4.1A 68 MOHM SMD |
2,395 |
|
Datasheet | HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 6.8 µH | ±20% | 4.1 A | 8A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
PF0601.333NLFIXED IND 33UH 590MA 345MOHM SMD |
2,365 |
|
Datasheet | PF0601NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±20% | 590 mA | 590mA | Shielded | 345mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
HM72B-06R15LFTR13FIXED IND 150NH 23.3A 2.5 MOHM |
1,822 |
|
Datasheet | HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 150 nH | ±20% | 23.3 A | 52A | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
.jpg "AIRD-01-271K")
|
AIRD-01-271KFIXED IND 270UH 1.6A 300 MOHM TH |
2,427 |
|
Datasheet | AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.6 A | 4.1A | Unshielded | 300mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
