Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82134A5301M000FIXED IND 210UH 300MA 6.4 OHM TH |
933 |
|
Datasheet | B82134 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 210 µH | ±20% | 300 mA | - | Unshielded | 6.4Ohm | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) | - |
|
SRR1050HA-220YIND 22UH 30% 2.9A SHLD |
615 |
|
Datasheet | SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.9 A | 2.95A | Shielded | 62mOhm Max | - | 10.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
MHW1306SG1R0MFIXED IND 1UH 20A 1.18 MOHM SMD |
450 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1 µH | ±20% | 20 A | 30A | - | 1.18mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" L x 0.492" W (12.70mm x 12.50mm) | 0.240" (6.10mm) |
|
FP4-120-RFIXED IND 120NH 40A 0.65MOHM SMD |
1,349 |
|
Datasheet | FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 40 A | 54A | Unshielded | 0.65mOhm Max | - | - | - | -40°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|
IHLP1212ABERR56M11FIXED IND 560NH 5.1A 22 MOHM SMD |
5,975 |
|
Datasheet | IHLP-1212AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 5.1 A | 6.7A | Shielded | 22mOhm Max | - | 135MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
FP1108L1-R150-RFIXED IND 150NH 64A 0.1 MOHM SMD |
4,550 |
|
Datasheet | FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 64 A | 45A | Unshielded | 0.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.323" W (11.00mm x 8.20mm) | 0.327" (8.30mm) |
|

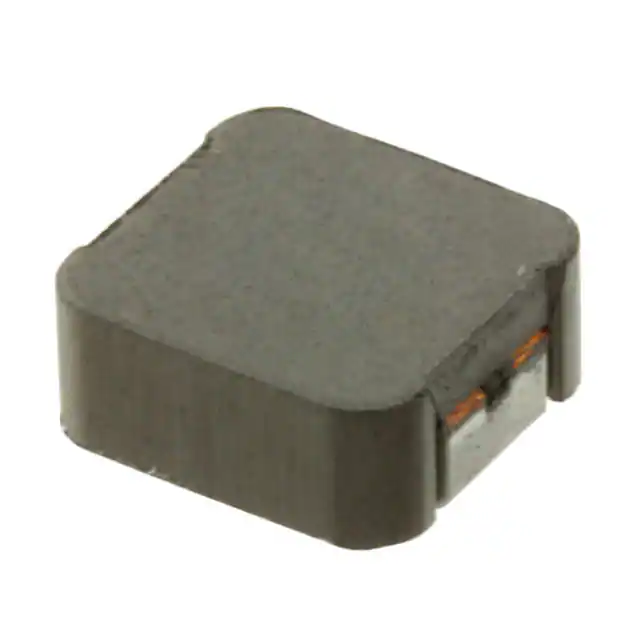

HA72E-063R3LFTR13FIXED IND 3.3UH 6.6A 30 MOHM SMD |
1,678 |
|
Datasheet | HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 3.3 µH | ±20% | 6.6 A | 8A | Unshielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
MGV12031R5M-10FIXED IND 1.5UH 19A 5.5 MOHM SMD |
999 |
|
Datasheet | MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±20% | 19 A | 35A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0404 (1010 Metric) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
LTF3020T-1R8N-DFIXED IND 1.8UH 1.78A 60MOHM SMD |
985 |
|
Datasheet | LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 1.78 A | 1.34A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
|
LTF3020T-2R7N-DFIXED IND 2.7UH 1.49A 87MOHM SMD |
944 |
|
Datasheet | LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 1.49 A | 1.09A | Shielded | 87mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
SLF12555T-152MR29-PFFIXED IND 1.5MH 480MA 2.076 OHM |
400 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 480 mA | 290mA | Shielded | 2.076Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|
SLF12555T-470M1R6-PFFIXED IND 47UH 2.5A 74.2MOHM SMD |
153 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | 1.6A | Shielded | 74.2mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
SLF12555T-330M1R9-PFFIXED IND 33UH 3.1A 49.8MOHM SMD |
121 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.1 A | 1.9A | Shielded | 49.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|
LPD3015-103MRCFIXED IND 10UH 530MA 1.04OHM SM |
70,840 |
|
Datasheet | LPD3015 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 530 mA | 600mA | Shielded | 1.04Ohm Max | - | 48MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LPD3015-152MRCFIXED IND 1.5UH 1.2A 204MOHM SM |
22,602 |
|
Datasheet | LPD3015 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.2 A | 1.8A | Shielded | 204mOhm Max | - | 140MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
CTDO1813PF-472HC4.7UH SMD POWER INDUCTOR |
11,007 |
|
Datasheet | CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.2 A | 2.6A | Unshielded | 54mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
DO1813H-331MLDDO1813H-331 |
10,914 |
|
Datasheet | DO1813H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 0.33 µH | ±20% | 7 A | 10A | Unshielded | 4mOhm | - | 600MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
DO1813H-472MLDDO1813H-472 |
9,194 |
|
Datasheet | DO1813H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.6A | Unshielded | 54mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
DO1813H-103MLDDO1813H-103 |
9,090 |
|
Datasheet | DO1813H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 9.55 µH | ±20% | 1.5 A | 1.9A | Unshielded | 110mOhm | - | 40MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
LPD3015-223MRCFIXED IND 22UH 400MA 1.89OHM SM |
6,566 |
|
Datasheet | LPD3015 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 400 mA | 440mA | Shielded | 1.89Ohm Max | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
