Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIP0530GX-1R0MPBDGPOWER INDUCTOR 5.7X5.4X3 1.0UH 2 |
3,930 |
|
Datasheet | AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 10.5 A | 14A | Shielded | 8.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
TMPC 0412HP-4R7MG-Z024.7 UH SHIELDED MOLDED INDUCTOR |
3,896 |
|
Datasheet | TMPC0412HP | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 2 A | 2.5A | Unshielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
AIP0530GX-3R3MPBDGPOWER INDUCTOR 5.7X5.4X3 3.3UH 2 |
3,790 |
|
Datasheet | AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 7.7 A | 8.7A | Shielded | 23mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
TMPC 0412HP-2R2MG-Z022.2 UH SHIELDED MOLDED INDUCTOR |
3,775 |
|
Datasheet | TMPC0412HP | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 2.8 A | 3.5A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
TFM201610GHM-R68MTAAFIXED IND 680NH SMD |
3,000 |
|
Datasheet | TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal | 680 nH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
TMPC 0604H-R15MG-R6705-D150 NH SHIELDED MOLDED INDUCTOR |
2,993 |
|
Datasheet | TMPC0604H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 30 A | 55A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.157" (4.00mm) |
|
|
TMPA606010AF-100MN-D10 UH SHIELDED MOLDED INDUCTOR S |
2,992 |
|
Datasheet | TMPA606010SP | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 10 µH | ±20% | 1.7 A | 2.1A | Shielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
TMPC 0604H-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
2,000 |
|
Datasheet | TMPC0604H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4 A | 7A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.157" (4.00mm) |
|
|
TMPC 0603H-R15MG-0R907-D150 NH SHIELDED MOLDED INDUCTOR |
2,000 |
|
Datasheet | TMPC0603H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 27 A | 45A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
84333CFIXED IND 33UH 550MA 860MOHM SMD |
1,940 |
|
Datasheet | 8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | 550 mA | - | Unshielded | 860mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
|
|
TMPC 0605H-2R2MG-D2.2 UH SHIELDED MOLDED INDUCTOR |
1,587 |
|
Datasheet | TMPC0605H | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 10 A | 14A | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
TMPC 0605H-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,537 |
|
Datasheet | TMPC0605H | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 6.5 A | 10A | Unshielded | 30.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
TMPC 0503HV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,380 |
|
Datasheet | TMPC0503HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 4.6 A | 6A | Unshielded | 53Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
TMPC 0503HV-2R2MG-D2.2 UH SHIELDED MOLDED INDUCTOR |
1,230 |
|
Datasheet | TMPC0503HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35Ohm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R3-150-RFIXED IND 15UH 1.3A 342 MOHM SMD |
3,500 |
|
Datasheet | ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.3 A | 3A | Shielded | 342mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
SIM061R0M10MAEMOLDED IND 0806 1.0UH M SHLD AEC |
1,900 |
|
Datasheet | SIM | 0806 (2016 Metric) | Strip | Active | Molded | Metal | 1 µH | ±20% | 3.2 A | 3.8A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
SIM062R2M10MAEMOLDED IND 0806 2.2UH M SHLD AEC |
1,900 |
|
Datasheet | SIM | 0806 (2016 Metric) | Strip | Active | Molded | Metal | 2.2 µH | ±20% | 2 A | 2.45A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|

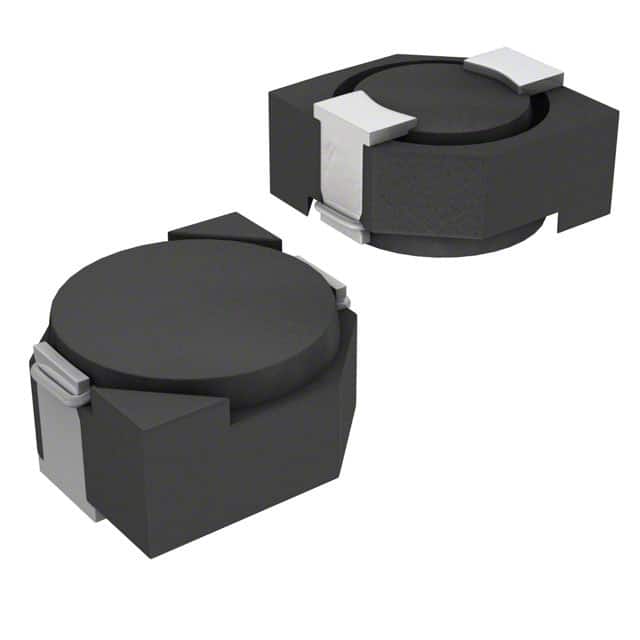

HM66-80151LFTR13FIXED IND 150UH 1.15A 506MOHM SM |
1,600 |
|
Datasheet | HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 150 µH | ±20% | 1.15 A | - | Shielded | 506mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
AIAC-1008C-15NK-TFIXED IND 15NH 900MA 7.3MOHM SMD |
1,488 |
|
Datasheet | AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 15 nH | ±10% | 900 mA | - | Unshielded | 7.3mOhm Max | 70 @ 300MHz | 2.5GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | 0.087" (2.20mm) |
|
887FU-252M=P3FIXED IND 2.5MH 37MA 81 OHM SMD |
2,094 |
|
Datasheet | D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.5 mH | ±20% | 37 mA | 42mA | Unshielded | 81Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
