Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS3015470M-10FIXED IND 47UH 350MA 1.25OHM SMD |
5,996 |
|
Datasheet | TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 350 mA | 350mA | Shielded | 1.25Ohm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
MLK1005S3N0STD25FIXED IND 3NH 400MA 220 MOHM SMD |
4,526 |
|
Datasheet | MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 3 nH | ±0.3nH | 400 mA | - | Unshielded | 220mOhm Max | 6 @ 100MHz | 7.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
CT0603CSF-18NGSMD CER CORE WIRE-WOUND INDUCTOR |
4,044 |
|
Datasheet | ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 18 nH | ±2% | - | - | - | 170mOhm | - | 3.1GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
TYS30152R2N-10FIXED IND 2.2UH 1.6A 60 MOHM SMD |
3,744 |
|
Datasheet | TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.6 A | 1.6A | Shielded | 60mOhm Max | - | 86MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
L0806CR47MDMITFIXED IND 470NH 1.6A 75 MOHM SMD |
1,141 |
|
Datasheet | L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.6 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

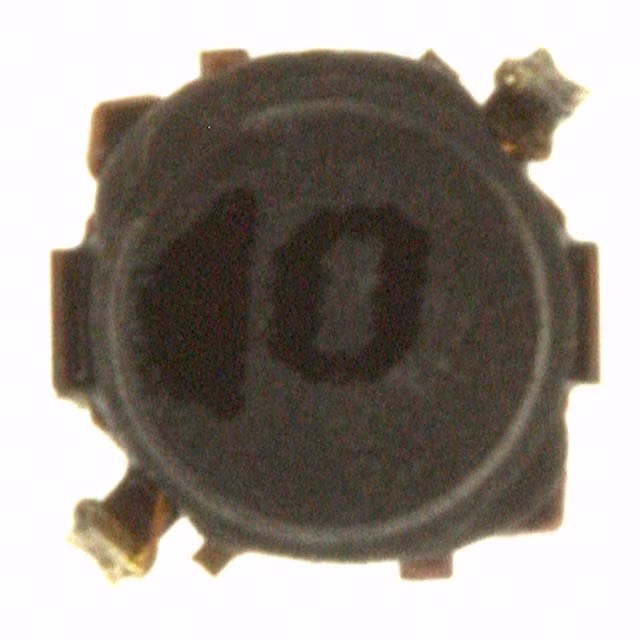

ELL-VFG150MCFIXED IND 15UH 480MA 540MOHM SMD |
1,925 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 480 mA | 500mA | Shielded | 540mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
CT0805FSF-102JSMD FER CORE WIRE-WOUND INDUCTOR |
1,800 |
|
Datasheet | ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±5% | - | - | - | 800mOhm | - | 280MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R27GSMD CER CORE WIRE-WOUND INDUCTOR |
1,400 |
|
Datasheet | ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±2% | - | - | - | 2.3Ohm | - | 900MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
887FU-821M=P3FIXED IND 820UH 63MA 30 OHM SMD |
8,179 |
|
Datasheet | D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 63 mA | 71mA | Unshielded | 30Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|
L0805C100MDWLTFIXED IND 10UH 205MA 1 OHM SMD |
4,353 |
|
Datasheet | L-DWL | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 205 mA | - | Unshielded | 1Ohm | - | 32MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
SBCP-47HY6R8BFIXED IND 6.8UH 1.9A 52 MOHM TH |
2,564 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | 1.93A | Unshielded | 52mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
ELJ-QE22NJFAFIXED IND 22NH 290MA 520MOHM SMD |
2,780 |
|
Datasheet | QE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 22 nH | ±5% | 290 mA | - | Unshielded | 520mOhm Max | 15 @ 100MHz | 3.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-FAR22MF2FIXED IND 220NH 360MA 290MOHM SM |
4,399 |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 360 mA | - | Unshielded | 290mOhm Max | 25 @ 25.2MHz | 230MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ASPI-0410FS-2R2M-T35FIXED IND 2.2UH 1.15A 150MOHM SM |
1,926 |
|
Datasheet | ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.15 A | 1.25A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
TMPC 0603H-3R3MG-D3.3 UH SHIELDED MOLDED INDUCTOR |
1,830 |
|
Datasheet | TMPC0603H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ASPI-0410FS-100M-T35FIXED IND 10UH 560MA 380MOHM SMD |
1,741 |
|
Datasheet | ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 560 mA | 620mA | Shielded | 380mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
TYA4012R68M-10FIXED IND 680NH 3.25A 55MOHM SMD |
17,498 |
|
Datasheet | TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.25 A | 5.2A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40122R2M-10FIXED IND 2.2UH 2.5A 90 MOHM SMD |
16,861 |
|
Datasheet | TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.5 A | 2.8A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40121R5M-10FIXED IND 1.5UH 2.8A 75 MOHM SMD |
13,814 |
|
Datasheet | TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.8 A | 3.8A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA4012100M-10FIXED IND 10UH 850MA 360MOHM SMD |
9,452 |
|
Datasheet | TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.55A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
