Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L06031R5AHLTRFIXED IND 1.5NH 1A 60 MOHM SMD |
4,098 |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.5 nH | ±0.05nH | 1 A | - | Unshielded | 60mOhm Max | 26 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06031R8AHLTRFIXED IND 1.8NH 1A 70 MOHM SMD |
1,770 |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.8 nH | ±0.05nH | 1 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R2AHLTRFIXED IND 2.2NH 1A 80 MOHM SMD |
3,557 |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.2 nH | ±0.05nH | 1 A | - | Unshielded | 80mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R7AHLTRFIXED IND 2.7NH 750MA 80MOHM SMD |
3,475 |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.7 nH | ±0.05nH | 750 mA | - | Unshielded | 80mOhm Max | 21 @ 450MHz | 9GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

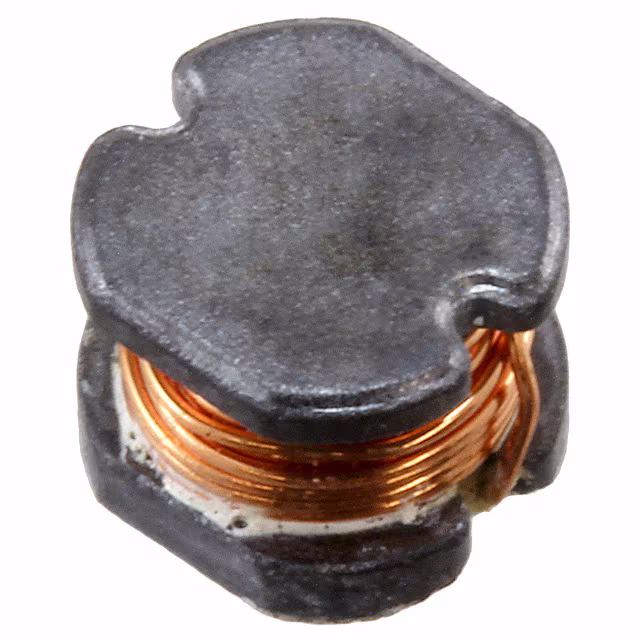

LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD |
1,386 |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD |
4,360 |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
LMXN1310M4R7CTASFIXED IND 4.7UH 36 MOHM SMD |
2,008 |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | 4.2A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.20mm x 9.90mm) | 0.250" (6.35mm) |
|

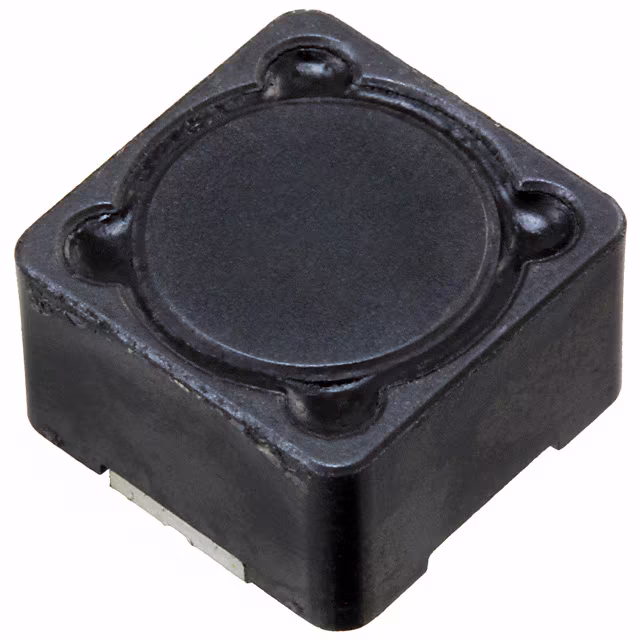

LMXS1212M330HTASFIXED IND 33UH 2.7A 97 MOHM SMD |
4,388 |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | - | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD |
1,997 |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | - | 200mA | Shielded | 2.58Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.118" (3.00mm) |
|
LMXS131JM220FTASFIXED IND 22UH 4A 32 MOHM SMD |
2,900 |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | - | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
