Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS0814N7JTRAIR CORE INDUCTORS |
3,597 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 14.7 nH | ±5% | 4.4 A | - | Unshielded | 7.2mOhm Max | 90 @ 400MHz | 3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.061" L x 0.084" W (1.55mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0821N5JTRAIR CORE INDUCTORS |
3,783 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 21.5 nH | ±5% | 4.4 A | - | Unshielded | 9mOhm Max | 130 @ 400MHz | 3.7GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.101" L x 0.084" W (2.57mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0825N0JTRAIR CORE INDUCTORS |
3,125 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 25 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 2.5GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.117" L x 0.084" W (2.97mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0816N6JTRAIR CORE INDUCTORS |
3,275 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 16.6 nH | ±5% | 4.4 A | - | Unshielded | 8mOhm Max | 130 @ 400MHz | 3.4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.087" L x 0.084" W (2.21mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0823N0JTRAIR CORE INDUCTORS |
2,002 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 23 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 2.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.088" L x 0.084" W (2.24mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0808N1JTRAIR CORE INDUCTORS |
3,183 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8.1 nH | ±5% | 4.4 A | - | Unshielded | 6mOhm Max | 130 @ 400MHz | 5.2GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.058" L x 0.084" W (1.47mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0812N1JTRAIR CORE INDUCTORS |
4,911 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.1 nH | ±5% | 4.4 A | - | Unshielded | 7mOhm Max | 130 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.073" L x 0.084" W (1.85mm x 2.13mm) | 0.078" (1.98mm) |
|
|
AS0827N3JTRAIR CORE INDUCTORS |
2,007 |
|
Datasheet | AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27.3 nH | ±5% | 4.4 A | - | Unshielded | 10mOhm Max | 130 @ 400MHz | 3.2GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.117" L x 0.084" W (2.97mm x 2.13mm) | 0.078" (1.98mm) |
|
LMLP06A6M100CTARFIXED IND 10UH 1A 235 MOHM SMD |
3,021 |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 235mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

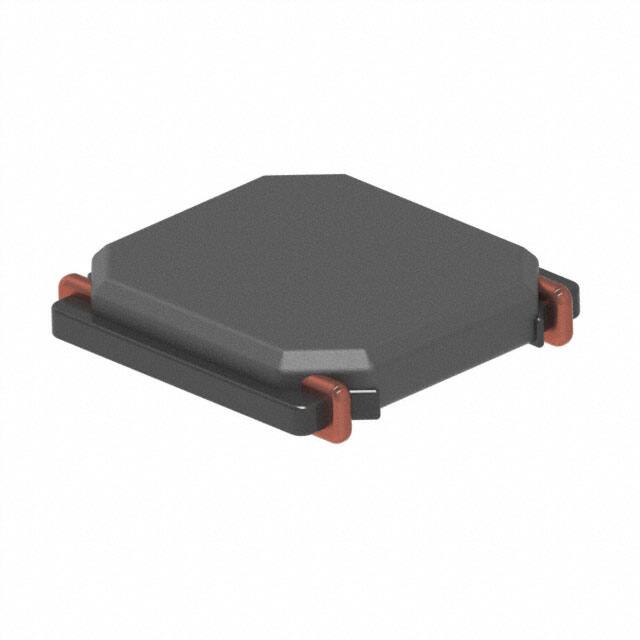

LMLP0606M100CTARFIXED IND 10UH 850MA 500MOHM SMD |
1,600 |
|
Datasheet | LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 850 mA | 1A | Shielded | 500mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.043" (1.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
