Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D0840L150FIXED IND 15UH 5.2A 65 MOHM SMD |
1,018 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.2 A | 6.5A | Shielded | 65mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L4R7FIXED IND 4.7UH 8.7A 23.5MOHM SM |
3,977 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 8.7 A | 11A | Shielded | 23.5mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
SBC7-330-342FIXED IND 33UH 3.4A 50 MOHM TH |
3,085 |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 6.2A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
SBCP-87HY102HFIXED IND 1MH 250MA 2.82 OHM TH |
1,185 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 250 mA | 270mA | Unshielded | 2.82Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|

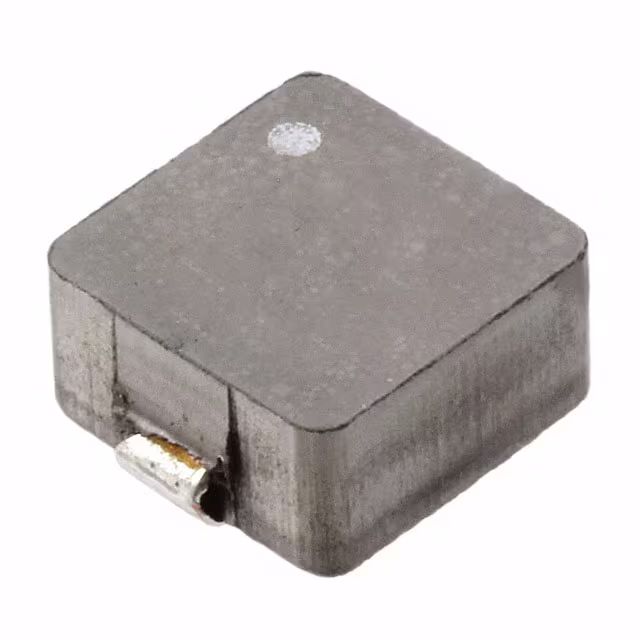

MPCH1055L1R3FIXED IND 1.3UH 18.5A 2.3MOHM SM |
4,632 |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.3 µH | ±20% | 18.5 A | 17A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.394" W (11.70mm x 10.00mm) | 0.217" (5.50mm) |
|
|
MPXV1D1250L1R0FIXED IND 1UH 28.8A 2.6MOHM SMD |
2,984 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 28.8 A | 43A | Shielded | 2.6mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPX1D2213L100FIXED IND 10UH 34A 4.4 MOHM SMD |
1,284 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 34 A | 36A | Shielded | 4.4mOhm Max | - | 5.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L101FIXED IND 100UH 10A 47.4MOHM SMD |
3,608 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 10 A | 10.5A | Shielded | 47.4mOhm Max | - | 1.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPXV1D2213L4R7FIXED IND 4.7UH 48A 2.2 MOHM SMD |
2,548 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 48 A | 40A | Shielded | 2.2mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
SBC3-151-791FIXED IND 150UH 790MA 360MOHM TH |
2,523 |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 790 mA | 810mA | Unshielded | 360mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
