Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

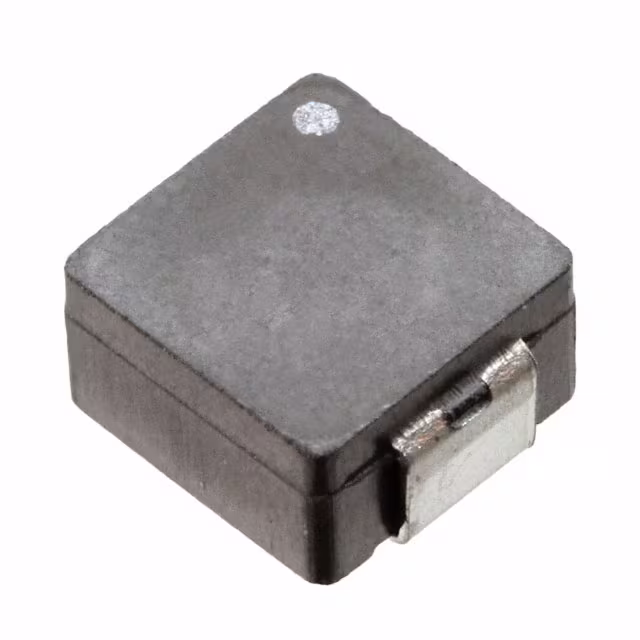

MPLCH0740L4R7FIXED IND 4.7UH 5.8A 33 MOHM SMD |
2,057 |
|
Datasheet | MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.8 A | 6.5A | Shielded | 33mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
MPLC0730L2R2FIXED IND 2.2UH 7.3A 19 MOHM SMD |
1,704 |
|
Datasheet | MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.3 A | 8.2A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|

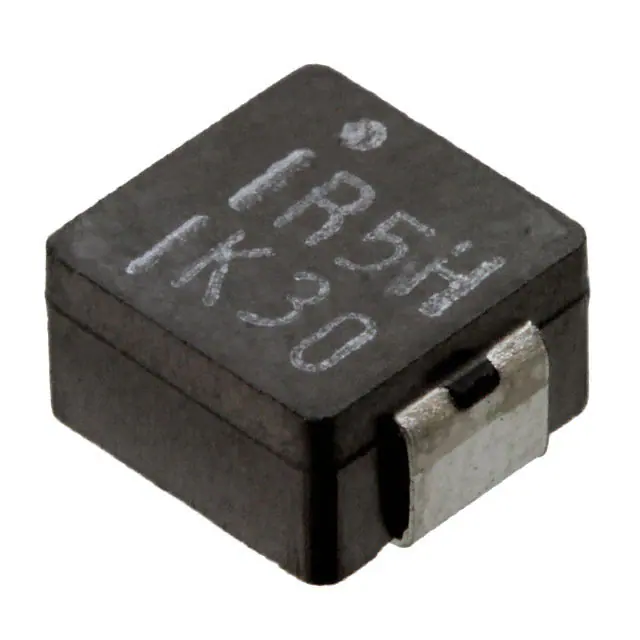

MPLCH0740L1R5FIXED IND 1.5UH 11.1A 9 MOHM SMD |
1,470 |
|
Datasheet | MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 11.1 A | 10.8A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
MPXV1D0650L1R0FIXED IND 1UH 15.6A 6 MOHM SMD |
3,072 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 15.6 A | 13A | Shielded | 6mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
SBCP-87HY4R7HFIXED IND 4.7UH 3.2A 30 MOHM TH |
2,464 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 4.3A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
MPXV1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM |
1,922 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 13.2 A | 12A | Shielded | 8.3mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D0650L6R8FIXED IND 6.8UH 5.7A 44.2MOHM SM |
635 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.7 A | 5.5A | Shielded | 44.2mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPX1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM |
294 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 3.7 A | 5A | Shielded | 119.7mOhm Max | - | 5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

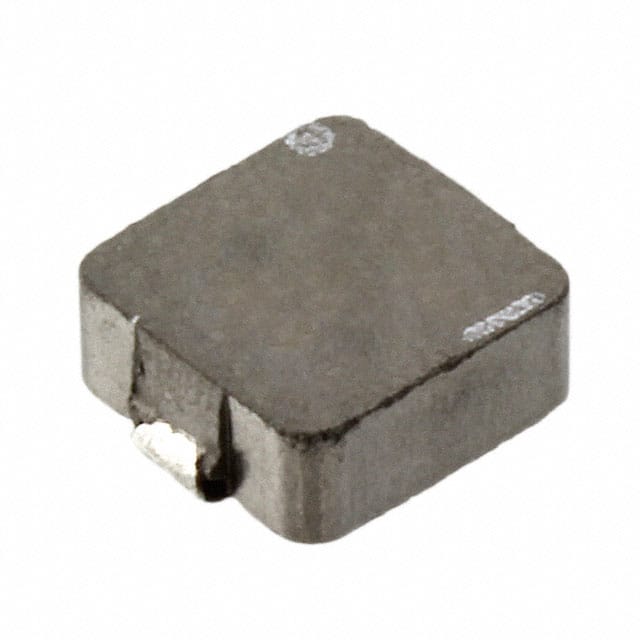

MPC0730LR20CFIXED IND 200NH 23A 1.2 MOHM SMD |
4,571 |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±25% | 23 A | 17.5A | Shielded | 1.2mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SBCP-87HY330HFIXED IND 33UH 1.5A 120 MOHM TH |
1,993 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.5A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
