Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC212236A-471K470uH, 10%, 54.5mOhm, 26.3Amp Ma |
1,332 |
|
Datasheet | PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 470 µH | ±10% | 13.4 A | 26.3A | Shielded | 54.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC212236A-681K680uH, 10%, 74.0mOhm, 21.9Amp Ma |
1,020 |
|
Datasheet | PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 680 µH | ±10% | 11.2 A | 21.9A | Shielded | 74mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC282820B-900MHFPFC CHOKE 90.0UH, 28.0A, 12.5 M |
1,023 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 90 µH | ±20% | 15.5 A | 14.4A | Unshielded | 12.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-330MHFPFC CHOKE 33.0UH, 46.0A, 4.5 M |
4,756 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 33 µH | ±20% | 26 A | 23.7A | Unshielded | 4.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-161MHFPFC CHOKE 165.0UH, 20.8A, 22.3M |
3,714 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 165 µH | ±20% | 11.7 A | 10.7A | Unshielded | 22.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-121MHFPFC CHOKE 125.0UH, 23.8A, 16.7M |
3,301 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 125 µH | ±20% | 13.5 A | 12.3A | Unshielded | 16.7mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-221MHFPFC CHOKE 220.0UH, 17.9A, 31.0M |
4,364 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 220 µH | ±20% | 10 A | 9.2A | Unshielded | 31mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|

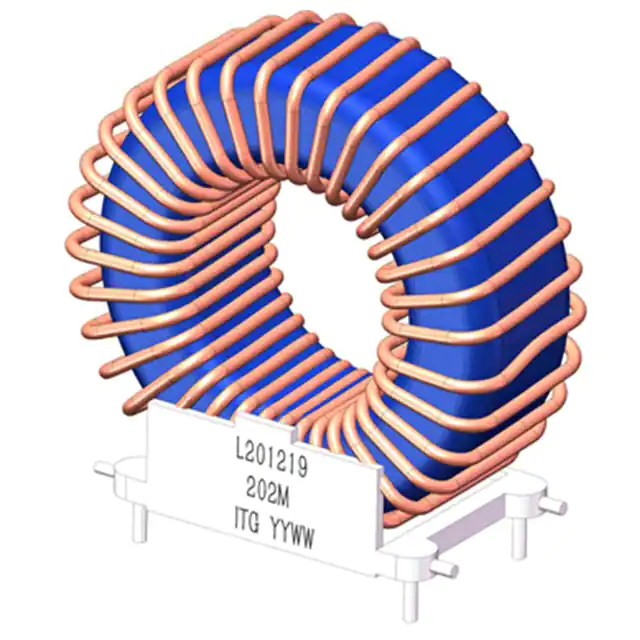

L201219-831MHF836.7uH, 20%, 80 mOhm DCR, 5.2A |
2,918 |
|
Datasheet | L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 836.7 µH | ±20% | 5.2 A | 3.3A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
PFC282822B-171MHFPFC CHOKE 175.0UH, 20.4A, 23.8M |
4,498 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 175 µH | ±20% | 11 A | 10.5A | Unshielded | 23.8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
|
|
PFC282822B-381MHFPFC CHOKE 380.0UH, 14.0A, 56.3M |
4,738 |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 380 µH | ±20% | 7 A | 7.2A | Unshielded | 56.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
