FETs, MOSFETs
Explore FETs, MOSFETs parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI3443DVMOSFET P-CH 20V 4.4A MICRO6 |
4,639 |
|
Datasheet | HEXFET® | SOT-23-6 Thin, TSOT-23-6 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 2.5V, 4.5V | 65mOhm @ 4.4A, 4.5V | 1.5V @ 250µA | 15 nC @ 4.5 V | ±12V | 1079 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro6™(TSOP-6) |
|
SI3475DV-T1-E3MOSFET P-CH 200V 950MA 6TSOP |
5,510 |
|
Datasheet | TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 950mA (Tc) | 6V, 10V | 1.61Ohm @ 900mA, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 500 pF @ 50 V | - | 2W (Ta), 3.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

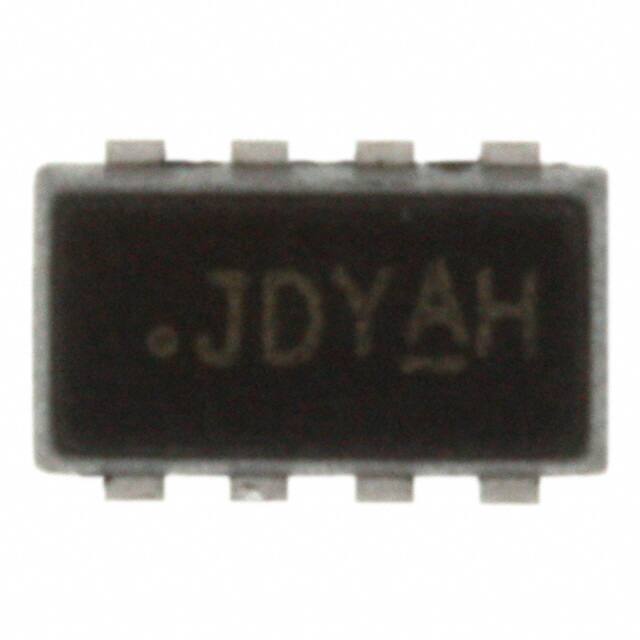

SI5856DC-T1-E3MOSFET N-CH 20V 4.4A 1206-8 |
3,634 |
|
Datasheet | TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.8V, 4.5V | 40mOhm @ 4.4A, 4.5V | 1V @ 250µA | 7.5 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI8404DB-T1-E1MOSFET N-CH 8V 12.2A 4MICROFOOT |
7,639 |
|
Datasheet | TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 12.2A (Tc) | 1.8V, 4.5V | 31mOhm @ 1A, 4.5V | 1V @ 250µA | 33 nC @ 5 V | ±5V | 1950 pF @ 4 V | - | 2.78W (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
SIB417EDK-T1-GE3MOSFET P-CH 8V 9A PPAK SC75-6 |
9,295 |
|
Datasheet | TrenchFET® | PowerPAK® SC-75-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 9A (Tc) | 1.2V, 4.5V | 58mOhm @ 5.8A, 4.5V | 1V @ 250µA | 12 nC @ 5 V | ±5V | 565 pF @ 4 V | - | 2.4W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6 |
|
MCT04N15-TPInterface |
5,559 |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4A | 10V | 160mOhm @ 4A, 10V | 1.5V @ 250µA | 19 nC @ 10 V | ±20V | 900 pF @ 25 V | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
FQI13N06LTUMOSFET N-CH 60V 13.6A I2PAK |
5,911 |
|
Datasheet | QFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 13.6A (Tc) | 5V, 10V | 110mOhm @ 6.8A, 10V | 2.5V @ 250µA | 6.4 nC @ 5 V | ±20V | 350 pF @ 25 V | - | 3.75W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
TSM6N60CH C5GMOSFET N-CHANNEL 600V 6A TO251 |
2,878 |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 4V @ 250µA | 20.7 nC @ 10 V | ±30V | 1248 pF @ 25 V | - | 89W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
FQD19N10LTFMOSFET N-CH 100V 15.6A DPAK |
2,656 |
|
Datasheet | QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15.6A (Tc) | 5V, 10V | 100mOhm @ 7.8A, 10V | 2V @ 250µA | 18 nC @ 5 V | ±20V | 870 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
TSM4NB65CH C5GMOSFET N-CHANNEL 650V 4A TO251 |
2,646 |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3.37Ohm @ 2A, 10V | 4.5V @ 250µA | 13.46 nC @ 10 V | ±30V | 549 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
DMTH6006SPS-13MOSFET N-CH 60V PWRDI5060 |
3,262 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17.8A (Ta), 100A (Tc) | 10V | 6.2mOhm @ 10.5A, 10V | 4V @ 250µA | 27.9 nC @ 10 V | ±20V | 1721 pF @ 30 V | - | 2.94W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
NTD85N02RGMOSFET N-CH 24V 12A/85A DPAK |
6,372 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 12A (Ta), 85A (Tc) | 4.5V, 10V | 5.2mOhm @ 20A, 10V | 2V @ 250µA | 17.7 nC @ 5 V | ±20V | 2050 pF @ 20 V | - | 1.25W (Ta), 78.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
DMN2005UFGQ-13MOSFET N-CH 20V 18A PWRDI3333 |
4,077 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 18A (Ta), 50A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | 1.2V @ 250µA | 164 nC @ 10 V | ±12V | 6495 pF @ 10 V | - | 1.05W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
BUK7Y07-30B,115MOSFET N-CH 30V 75A LFPAK56 |
7,269 |
|
Datasheet | TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 1mA | 31 nC @ 10 V | ±20V | 1773 pF @ 25 V | - | 105W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
;;2.jpg "STD50NH02LT4")
|
STD50NH02LT4MOSFET N-CH 24V 50A DPAK |
6,113 |
|
Datasheet | STripFET™ III | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 50A (Tc) | 5V, 10V | 10.5mOhm @ 25A, 10V | 1.8V @ 250µA | 24 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
HUFA75307P3MOSFET N-CH 55V 15A TO220-3 |
6,759 |
|
Datasheet | UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 15A (Tc) | 10V | 90mOhm @ 15A, 10V | 4V @ 250µA | 20 nC @ 20 V | ±20V | 250 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
DMT8008SPS-13MOSFET N-CH 80V 83A PWRDI5060-8 |
5,455 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 83A (Tc) | 6V, 10V | 7.8mOhm @ 14A, 10V | 4V @ 1mA | 34 nC @ 10 V | ±20V | 1950 pF @ 40 V | - | 1.3W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH10H009LPS-13MOSFET N-CH 100V PWRDI5060 |
4,998 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Ta), 100A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.5V @ 250µA | 40.2 nC @ 10 V | ±20V | 2309 pF @ 50 V | - | 1.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH8008LPS-13MOSFET N-CH 80V 91A PWRDI5060-8 |
6,627 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 91A (Tc) | 4.5V, 10V | 7.8mOhm @ 14A, 10V | 2.8V @ 1mA | 41.2 nC @ 10 V | ±20V | 2345 pF @ 40 V | - | 1.5W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH8008SPS-13MOSFET N-CH 80V 92A PWRDI5060-8 |
8,143 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 92A (Tc) | 6V, 10V | 7.8mOhm @ 14A, 10V | 4V @ 1mA | 34 nC @ 10 V | ±20V | 1950 pF @ 40 V | - | 1.6W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
