FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPC2619ENGRTTRANS GAN 80V .0033OHM 6LGA |
9,667 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 100 V | 29A (Ta) | 5V | 3.3mOhm @ 16A, 5V | 2.5V @ 5.5mA | 8.3 nC @ 5 V | +6V, -4V | 1180 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2021ENGRTRANS GAN 80V 60A BUMPED DIE |
9,924 |
|
Datasheet | eGaN® | Die | Cut Tape (CT) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 80 V | 60A (Ta) | 5V | 2.5mOhm @ 29A, 5V | 2.5V @ 14mA | 15 nC @ 5 V | +6V, -4V | 1700 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2034GANFET N-CH 200V 48A DIE |
6,488 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 200 V | 48A (Ta) | 5V | 10mOhm @ 20A, 5V | 2.5V @ 7mA | 8.8 nC @ 5 V | +6V, -4V | 950 pF @ 100 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2302ENGRTTRANS GAN 100V DIE .0018OHM |
2,597 |
|
Datasheet | eGaN® | 7-PowerWQFN | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 100 V | 101A (Ta) | 5V | 1.8mOhm @ 50A, 5V | 2.5V @ 14mA | 23 nC @ 5 V | +6V, -4V | 3200 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 7-QFN (3x5) |
|
|
EPC2305ENGRTTRANS GAN 150V .003OHM 3X5MM QFN |
9,393 |
|
Datasheet | - | 7-PowerWQFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 150 V | 80A (Ta) | 5V | 2.2mOhm @ 30A, 5V | 2.5V @ 11mA | 21 nC @ 5 V | 6V | 2900 pF @ 75 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 7-QFN (3x5) |
|
EPC2001GANFET N-CH 100V 25A DIE OUTLINE |
3,682 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 100 V | 25A (Ta) | 5V | 7mOhm @ 25A, 5V | 2.5V @ 5mA | 10 nC @ 5 V | +6V, -5V | 950 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
EPC2010GANFET N-CH 200V 12A DIE |
9,605 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 200 V | 12A (Ta) | 5V | 25mOhm @ 6A, 5V | 2.5V @ 3mA | 7.5 nC @ 5 V | +6V, -4V | 540 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
EPC2012GANFET N-CH 200V 3A DIE |
2,980 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 200 V | 3A (Ta) | 5V | 100mOhm @ 3A, 5V | 2.5V @ 1mA | 1.8 nC @ 5 V | +6V, -5V | 145 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
EPC2014GANFET N-CH 40V 10A DIE OUTLINE |
8,087 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 40 V | 10A (Ta) | 5V | 16mOhm @ 5A, 5V | 2.5V @ 2mA | 2.8 nC @ 5 V | +6V, -5V | 325 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|

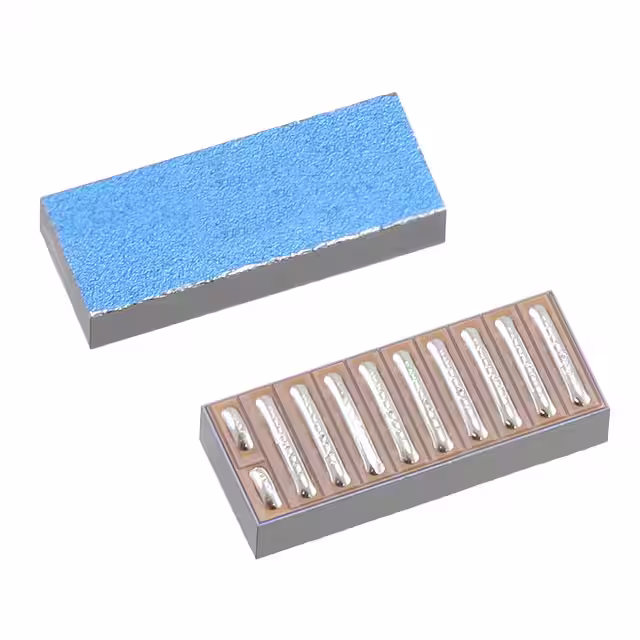

EPC2015GANFET N-CH 40V 33A DIE OUTLINE |
5,496 |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 40 V | 33A (Ta) | 5V | 4mOhm @ 33A, 5V | 2.5V @ 9mA | 11.6 nC @ 5 V | +6V, -5V | 1200 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
