FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMFTN490K-AQMOSFET SOT-23 N 40V 3A |
2,543 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 3A | 4.5V, 10V | 72mOhm @ 3A, 10V | 2.5V @ 250µA | 9.4 nC @ 10 V | ±20V | 415 pF @ 20 V | - | 1.25W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
DI025N06PTMOSFET POWERQFN 3X3 N 65V |
6,964 |
|
Datasheet | - | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 25A (Tc) | 4.5V, 10V | 20mOhm @ 8A, 10V | 2.5V @ 250µA | 9 nC @ 30 V | ±20V | 406 pF @ 30 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
|
DI040N03PTMOSFET POWERQFN 3X3 N 30V |
5,264 |
|
Datasheet | - | 8-PowerVDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1120 pF @ 15 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
|
MMFTP5618-AQMOSFET SOT-23 P -60V -1.25A |
6,562 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.25A (Ta) | 4.5V, 10V | 170mOhm @ 1.25A, 10V | 3V @ 1mA | 7 nC @ 10 V | ±20V | 361 pF @ 30 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
MD10P380MOSFET SOT-26 P -100V -1.6A |
9,481 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.6A (Ta) | 4.5V, 10V | 325mOhm @ 1A, 10V | 2.3V @ 250µA | 16 nC @ 10 V | ±20V | 1046 pF @ 50 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-26 |
|
MMFTN3404A-AQMOSFET SOT-23 N 30V 5.6A |
2,914 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 23mOhm @ 5.6A, 10V | 2.1V @ 250µA | - | ±20V | 744 pF @ 0 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
DI1A5N60D1MOSFET DPAK N 600V 1.5A 8OHM |
2,158 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.5A (Tc) | 10V | 8Ohm @ 750mA, 10V | 4V @ 250µA | 7.9 nC @ 10 V | ±30V | 156 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
DI010N03PW-AQMOSFET POWERQFN 2X2 N 30V |
8,075 |
|
Datasheet | - | 6-PowerUDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2V @ 250µA | 25 nC @ 10 V | ±20V | 1120 pF @ 15 V | - | 1.4W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-QFN (2x2) |
|

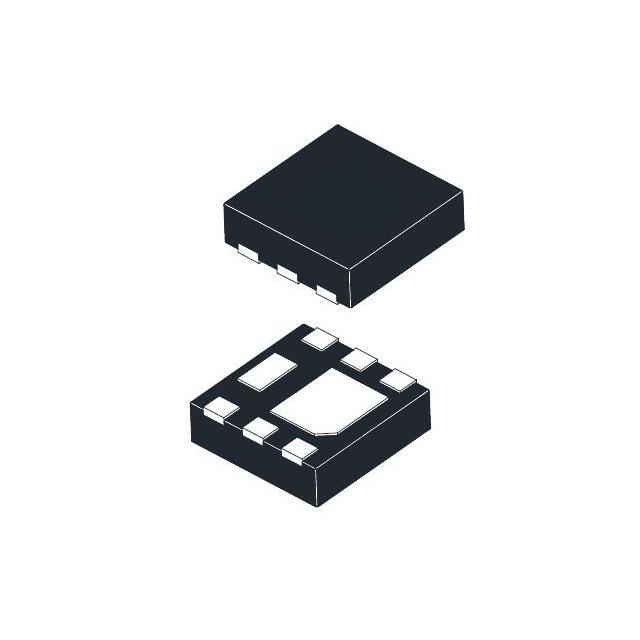

DI005P04PW-AQMOSFET POWERQFN 2X2 P -40V |
6,100 |
|
Datasheet | - | 6-PowerUDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 5.4A (Ta) | 4.5V, 10V | 40mOhm @ 4A, 10V | 2.5V @ 250µA | 19 nC @ 10 V | ±12V | 1078 pF @ 20 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-QFN (2x2) |
|
DI068N03PQ-AQMOSFET POWERQFN 5X6 N 30V |
6,811 |
|
Datasheet | - | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 68A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.5V @ 250µA | 79 nC @ 10 V | ±20V | 3650 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
