FETs, MOSFETs
Explore FETs, MOSFETs parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI7421DN-T1-E3MOSFET P-CH 30V 6.4A PPAK1212-8 |
3,568 |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.4A (Ta) | 4.5V, 10V | 25mOhm @ 9.8A, 10V | 3V @ 250µA | 40 nC @ 10 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
IRFR420APBFMOSFET N-CH 500V 3.3A DPAK |
1,695 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.3A (Tc) | 10V | 3Ohm @ 1.5A, 10V | 4.5V @ 250µA | 17 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
NVTFS6H850NLTAGMOSFET N-CH 80V 14.8A/64A 8WDFN |
878 |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 14.8A (Ta), 64A (Tc) | 4.5V, 10V | 8.6mOhm @ 10A, 10V | 2V @ 70µA | 26 nC @ 10 V | ±20V | 1450 pF @ 40 V | - | 3.9W (Ta), 73W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
,TO-226_straightlead.jpg "VN4012L-G")
|
VN4012L-GMOSFET N-CH 400V 160MA TO92-3 |
457 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 160mA (Tj) | 4.5V | 12Ohm @ 100mA, 4.5V | 1.8V @ 1mA | - | ±20V | 110 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TP2635N3-GMOSFET P-CH 350V 180MA TO92-3 |
344 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | P-Channel | MOSFET (Metal Oxide) | 350 V | 180mA (Tj) | 2.5V, 10V | 15Ohm @ 300mA, 10V | 2V @ 1mA | - | ±20V | 300 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
SQJ850EP-T2_GE3N-CHANNEL 60-V (D-S) 175C MOSFET |
8,710 |
|
Datasheet | - | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 4.5V, 10V | 23mOhm @ 10.3A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 1225 pF @ 30 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IPD30N06S215ATMA2MOSFET N-CH 55V 30A TO252-31 |
6,559 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 30A (Tc) | 10V | 14.7mOhm @ 30A, 10V | 4V @ 80µA | 110 nC @ 10 V | ±20V | 1485 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
IRFR014PBFMOSFET N-CH 60V 7.7A DPAK |
1,978 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.7A (Tc) | 10V | 200mOhm @ 4.6A, 10V | 4V @ 250µA | 11 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STF2N80K5MOSFET N-CH 800V 2A TO220FP |
846 |
|
Datasheet | SuperMESH5™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 4.5Ohm @ 1A, 10V | 5V @ 100µA | 3 nC @ 10 V | 30V | 95 pF @ 100 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
BSZ084N08NS5ATMA1MOSFET N-CH 80V 40A TSDSON |
34,017 |
|
Datasheet | OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 40A (Tc) | 6V, 10V | 8.4mOhm @ 20A, 10V | 3.8V @ 31µA | 25 nC @ 10 V | ±20V | 1820 pF @ 40 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8-FL |
|
RQ3L090GNTBMOSFET N-CH 60V 9A/30A 8HSMT |
17,625 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta), 30A (Tc) | 4.5V, 10V | 13.9mOhm @ 9A, 10V | 2.7V @ 300µA | 24.5 nC @ 10 V | ±20V | 1260 pF @ 30 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
|
|
SIS184DN-T1-GE3MOSFET N-CH 60V 17.4A/65.3A PPAK |
10,364 |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17.4A (Ta), 65.3A (Tc) | 7.5V, 10V | 5.8mOhm @ 10A, 10V | 3.4V @ 250µA | 32 nC @ 10 V | ±20V | 1490 pF @ 30 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
TPH4R50ANH1,LQMOSFET 100V 4.5MOHM SOP-ADV(N) |
6,077 |
|
Datasheet | U-MOSVIII-H | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 92A (Tc) | 10V | 4.5mOhm @ 46A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±20V | 5200 pF @ 50 V | - | 800mW (Ta) | 150°C | - | - | Surface Mount | 8-SOP Advance (5x5.75) |
|
|
IPD80R750P7ATMA1MOSFET N-CH 800V 7A TO252-3 |
4,134 |
|
Datasheet | CoolMOS™ P7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 750mOhm @ 2.7A, 10V | 3.5V @ 140µA | 17 nC @ 10 V | ±20V | 460 pF @ 500 V | - | 51W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD60R280PFD7SAUMA1MOSFET N-CH 600V 12A TO252-3 |
2,879 |
|
Datasheet | CoolMOS™ PFD7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 280mOhm @ 3.6A, 10V | 4.5V @ 180µA | 15.3 nC @ 10 V | ±20V | 656 pF @ 400 V | - | 51W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-344 |
|
STP10N60M2MOSFET N-CH 600V 7.5A TO220 |
689 |
|
Datasheet | MDmesh™ II Plus | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.5A (Tc) | 10V | 600mOhm @ 3A, 10V | 4V @ 250µA | 13.5 nC @ 10 V | ±25V | 400 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IPD22N08S2L50ATMA1MOSFET N-CH 75V 27A TO252-3 |
9,994 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 27A (Tc) | 5V, 10V | 50mOhm @ 50A, 10V | 2V @ 31µA | 33 nC @ 10 V | ±20V | 630 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
PSMN2R0-30YLDXMOSFET N-CH 30V 100A LFPAK56 |
7,117 |
|
Datasheet | - | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 2mOhm @ 25A, 10V | 2.2V @ 1mA | 46 nC @ 10 V | ±20V | 2969 pF @ 15 V | - | 142W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|

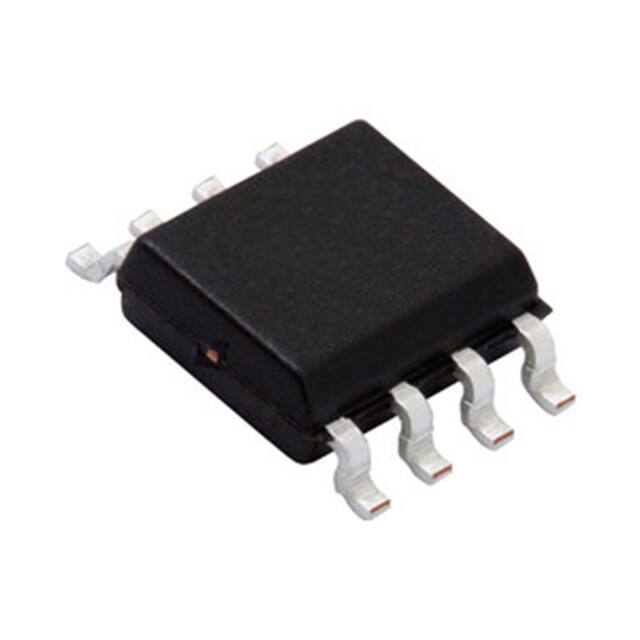

SI4090BDY-T1-GE3N-CHANNEL 100-V (D-S) MOSFET SO- |
7,063 |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 12.2A (Ta), 18.7A (Tc) | 6V, 10V | 10mOhm @ 12.2A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 3570 pF @ 50 V | - | 3.1W (Ta), 7.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRF9530PBF-BE3MOSFET P-CH 100V 12A TO220AB |
3,387 |
|
Datasheet | - | TO-220-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Tc) | - | 300mOhm @ 7.2A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
