FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA88N085TMOSFET N-CH 85V 88A TO263 |
2,748 |
|
Datasheet | TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 88A (Tc) | 10V | 11mOhm @ 25A, 10V | 4V @ 100µA | 69 nC @ 10 V | ±20V | 3140 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA90N055TMOSFET N-CH 55V 90A TO263 |
7,717 |
|
Datasheet | TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 90A (Tc) | 10V | 8.8mOhm @ 25A, 10V | 4V @ 50µA | 61 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTC160N085TMOSFET N-CH 85V 110A ISOPLUS220 |
4,564 |
|
Datasheet | - | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | ISOPLUS220™ |
|
IXTC180N085TMOSFET N-CH 85V 110A ISOPLUS220 |
7,789 |
|
Datasheet | - | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | 10V | 6.1mOhm @ 25A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 8800 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

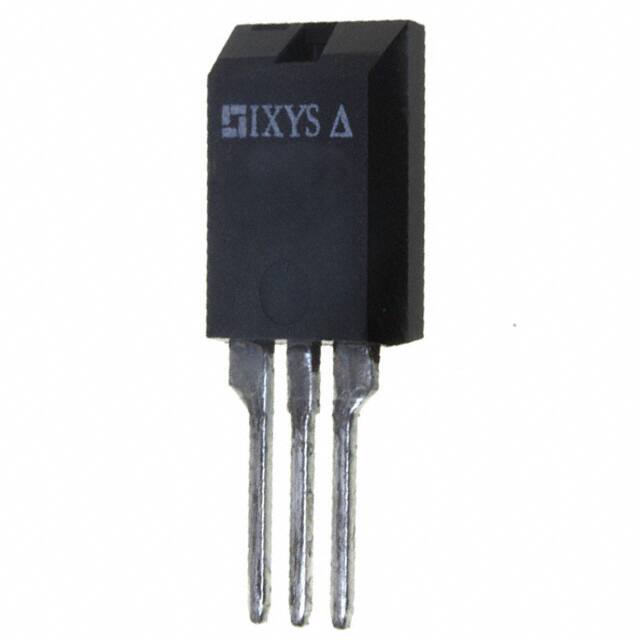

IXTC220N055TMOSFET N-CH 55V 130A ISOPLUS220 |
7,256 |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 130A (Tc) | 10V | 4.4mOhm @ 25A, 10V | 4V @ 250µA | 158 nC @ 10 V | ±20V | 7200 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTC220N075TMOSFET N-CH 75V 115A ISOPLUS220 |
2,913 |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 115A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 165 nC @ 10 V | ±20V | 7700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTC240N055TMOSFET N-CH 55V 132A ISOPLUS220 |
6,798 |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 132A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 1mA | 170 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

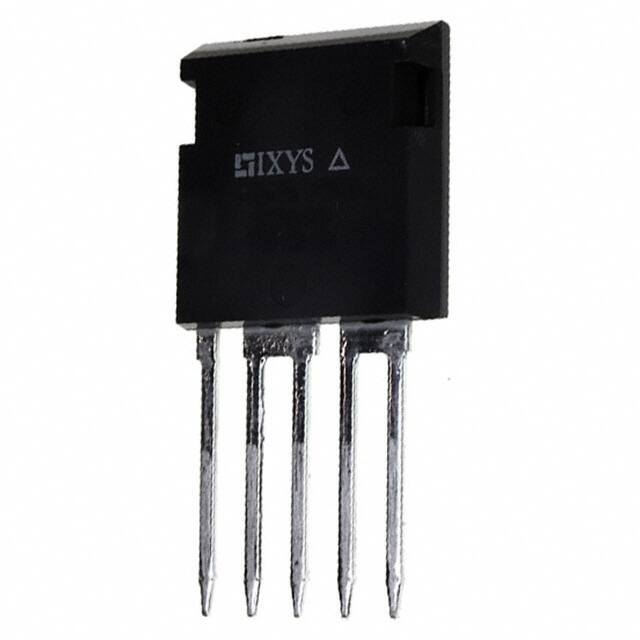

IXTF230N085TMOSFET N-CH 85V 130A I4PAC |
7,250 |
|
Datasheet | TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 130A (Tc) | 10V | 5.3mOhm @ 50A, 10V | 4V @ 250mA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXTF250N075TMOSFET N-CH 75V 140A I4PAC |
5,858 |
|
Datasheet | TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 140A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
.jpg "IXTH152N085T")
|
IXTH152N085TMOSFET N-CH 85V 152A TO247 |
5,540 |
|
Datasheet | TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 152A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 250µA | 114 nC @ 10 V | ±20V | 5500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
