FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTF2N300P3MOSFET N-CH 3000V 1.6A I4PAC |
7,938 |
|
Datasheet | Polar P3™ | ISOPLUSi5-PAK™ | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 3000 V | 1.6A (Tc) | 10V | 21Ohm @ 1A, 10V | 5V @ 250µA | 73 nC @ 10 V | ±20V | 1890 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXFN44N50U2MOSFET N-CH 500V 44A SOT-227B |
5,704 |
|
Datasheet | HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 120mOhm @ 500mA, 10V | 4V @ 8mA | 270 nC @ 10 V | ±20V | 8400 pF @ 25 V | - | 520W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN44N50U3MOSFET N-CH 500V 44A SOT-227B |
4,969 |
|
Datasheet | HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 120mOhm @ 500mA, 10V | 4V @ 8mA | 270 nC @ 10 V | ±20V | 8400 pF @ 25 V | - | 520W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
VMO150-01P1MOSFET N-CH 100V 165A ECO-PAC2 |
8,868 |
|
Datasheet | HiPerFET™ | ECO-PAC2 | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 165A (Tc) | 10V | 8mOhm @ 90A, 10V | 4V @ 8mA | 400 nC @ 10 V | ±20V | 9400 pF @ 25 V | - | 400W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | ECO-PAC2 |
|
VMO60-05FMOSFET N-CH 500V 60A TO240AA |
9,805 |
|
Datasheet | HiPerFET™ | TO-240AA | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 60A (Tc) | 10V | 75mOhm @ 500mA, 10V | 4V @ 24mA | 405 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 590W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | TO-240AA |
|
|
MCB60I1200TZ1200V 90A SIC POWER MOSFET |
5,189 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 90A (Tc) | 20V | 34mOhm @ 50A, 20V | 4V @ 15mA | 160 nC @ 20 V | +20V, -5V | 2790 pF @ 1000 V | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268AA (D3Pak-HV) |
|
|
MCB60I1200TZ-TUBSICFET N-CH 1.2KV 90A TO268AA |
9,441 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 90A (Tc) | 20V | 34mOhm @ 50A, 20V | 4V @ 15mA | 160 nC @ 20 V | +20V, -5V | 2790 pF @ 1000 V | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268AA (D3Pak-HV) |
|
VMO1200-01FMOSFET N-CH 100V 1220A Y3-LI |
5,864 |
|
Datasheet | HiPerFET™ | Y3-Li | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1220A (Tc) | 10V | 1.35mOhm @ 932A, 10V | 4V @ 64mA | 2520 nC @ 10 V | ±20V | - | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y3-Li |
|
|
VM0550-2FMOSFET N-CH 100V 590A MODULE |
7,888 |
|
Datasheet | HiPerFET™ | Module | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 590A (Tc) | - | 2.1mOhm @ 500mA, 10V | - | 2000 nC @ 10 V | - | 50000 pF @ 25 V | - | 2200W | - | - | - | Chassis Mount | Module |
|

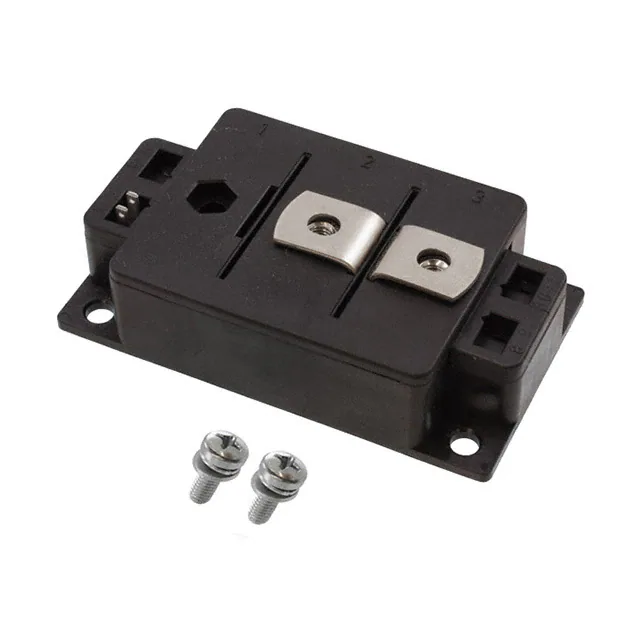

VMO580-02FMOSFET N-CH 200V 580A Y3-LI |
3,845 |
|
Datasheet | HiPerFET™ | Y3-Li | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 580A (Tc) | 10V | 3.8mOhm @ 430A, 10V | 4V @ 50mA | 2750 nC @ 10 V | ±20V | - | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y3-Li |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
