FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFT88N30PMOSFET N-CH 300V 88A TO268 |
7,053 |
|
Datasheet | HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 88A (Tc) | 10V | 40mOhm @ 44A, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
.jpg "IXFX170N20T")
|
IXFX170N20TMOSFET N-CH 200V 170A PLUS247-3 |
3,133 |
|
Datasheet | HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 170A (Tc) | 10V | 11mOhm @ 60A, 10V | 5V @ 4mA | 265 nC @ 10 V | ±20V | 19600 pF @ 25 V | - | 1150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXFX140N25TMOSFET N-CH 250V 140A PLUS247-3 |
4,717 |
|
Datasheet | HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 140A (Tc) | 10V | 17mOhm @ 60A, 10V | 5V @ 4mA | 255 nC @ 10 V | ±20V | 19000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
.jpg "IXTJ6N150")
|
IXTJ6N150MOSFET N-CH 1500V 3A TO247 |
9,752 |
|
Datasheet | - | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 3A (Tc) | 10V | 3.85Ohm @ 3A, 10V | 5V @ 250µA | 67 nC @ 10 V | ±30V | 2230 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISO247 |
.jpg "IXTH500N04T2")
|
IXTH500N04T2MOSFET N-CH 40V 500A TO247 |
5,085 |
|
Datasheet | TrenchT2™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 500A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.5V @ 250µA | 405 nC @ 10 V | ±20V | 25000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXFK120N30TMOSFET N-CH 300V 120A TO264AA |
5,544 |
|
Datasheet | HiPerFET™, Trench | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | 5V @ 4mA | 265 nC @ 10 V | ±20V | 20000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
|
|
IXTT500N04T2MOSFET N-CH 40V 500A TO268 |
2,493 |
|
Datasheet | TrenchT2™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 500A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.5V @ 250µA | 405 nC @ 10 V | ±20V | 25000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXTA6N100D2HVMOSFET N-CH 1000V 6A TO263HV |
7,136 |
|
Datasheet | Depletion | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 6A (Tj) | 0V | 2.2Ohm @ 3A, 0V | 4.5V @ 250µA | 95 nC @ 5 V | ±20V | 2650 pF @ 10 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
IXTQ30N50L2MOSFET N-CH 500V 30A TO3P |
7,581 |
|
Datasheet | Linear L2™ | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 4.5V @ 250µA | 240 nC @ 10 V | ±20V | 8100 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|

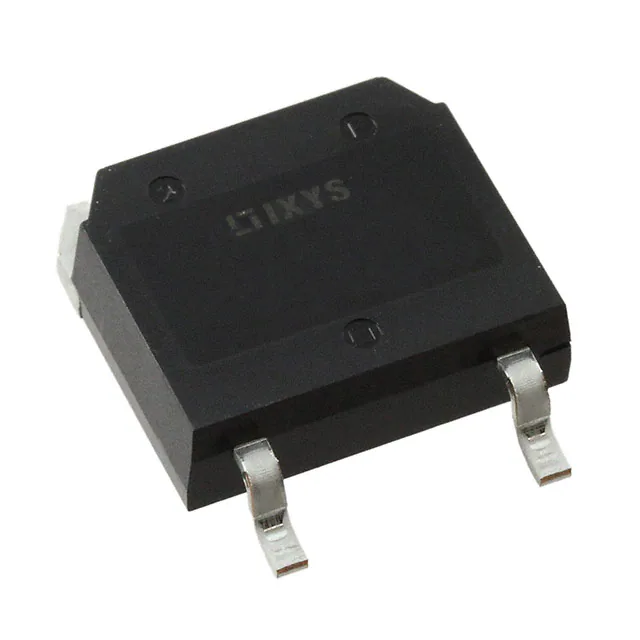

IXFT80N65X2HV-TRLMOSFET N-CH 650V 80A TO268HV |
8,931 |
|
Datasheet | HiPerFET™, Ultra X2 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | 38mOhm @ 40A, 10V | 5V @ 4mA | 140 nC @ 10 V | ±30V | 8300 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
