FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg "STD6NF10T4")
|
STD6NF10T4MOSFET N-CH 100V 6A DPAK |
2,177 |
|
Datasheet | STripFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 6A (Tc) | 10V | 250mOhm @ 3A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 280 pF @ 25 V | - | 30W (Tc) | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
STD2NK60Z-1MOSFET N-CH 600V 1.4A IPAK |
3,521 |
|
Datasheet | SuperMESH™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 8Ohm @ 700mA, 10V | 4.5V @ 50µA | 10 nC @ 10 V | ±30V | 170 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
STB4N62K3MOSFET N-CH 620V 3.8A D2PAK |
993 |
|
Datasheet | SuperMESH3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 3.8A (Tc) | 10V | 1.95Ohm @ 1.9A, 10V | 4.5V @ 50µA | 14 nC @ 10 V | ±30V | 450 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
STU9HN65M2MOSFET N-CH 650V 5.5A IPAK |
2,345 |
|
Datasheet | MDmesh™ M2 | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.5A (Tc) | 10V | 820mOhm @ 2.5A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±25V | 325 pF @ 100 V | - | 60W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
STF4N52K3MOSFET N-CH 525V 2.5A TO220FP |
1,834 |
|
Datasheet | SuperMESH3™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 20W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB7N52K3MOSFET N-CH 525V 6A D2PAK |
4,761 |
|
Datasheet | SuperMESH3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 6A (Tc) | 10V | 980mOhm @ 3.1A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 737 pF @ 100 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STL35N15F3MOSFET N-CH 150V 33A POWERFLAT |
1,751 |
|
Datasheet | STripFET™ III | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 33A (Tc) | 10V | 40mOhm @ 3.5A, 10V | 4V @ 250µA | 49.4 nC @ 10 V | ±20V | 1905 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
STB25NF06LAGMOSFET N-CHANNEL 60V 25A D2PAK |
1,578 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 5V, 10V | - | - | 14 nC @ 10 V | - | - | - | - | - | - | - | Surface Mount | D2PAK |
|

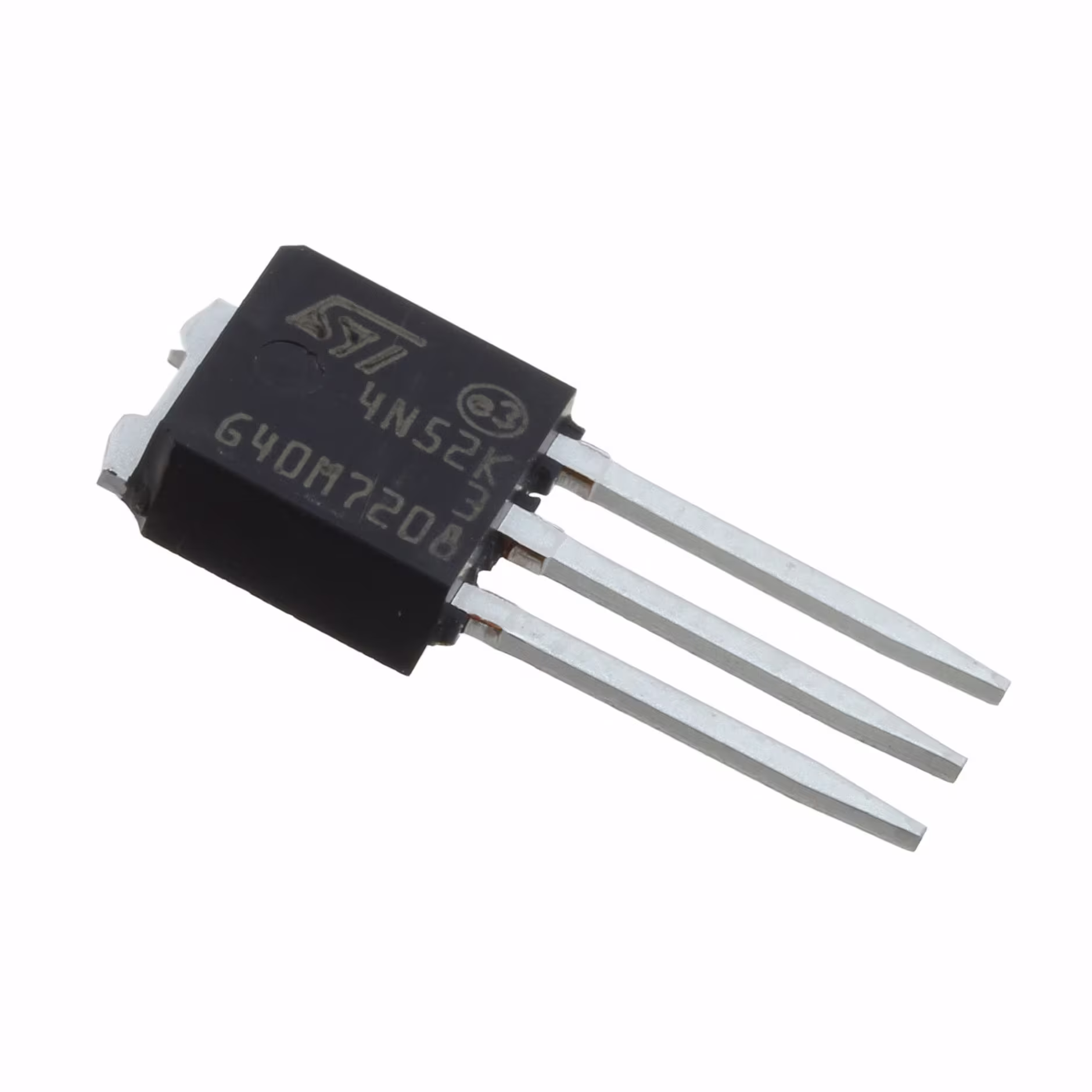

STU4N52K3MOSFET N-CH 525V 2.5A IPAK |
2,513 |
|
Datasheet | SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | IPAK |
|
STU7N60M2MOSFET N-CH 600V 5A IPAK |
3,000 |
|
Datasheet | MDmesh™ II Plus | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 950mOhm @ 2.5A, 10V | 4V @ 250µA | 8.8 nC @ 10 V | ±25V | 271 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
