FETs, MOSFETs
Explore FETs, MOSFETs parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF40B207MOSFET N-CH 40V 95A TO220AB |
1,841 |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 6V, 10V | 4.5mOhm @ 57A, 10V | 3.9V @ 50µA | 68 nC @ 10 V | ±20V | 2110 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPD50P03P4L11ATMA2MOSFET P-CH 30V 50A TO252-31 |
19,021 |
|
Datasheet | OptiMOS™ P2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | - | 10.5mOhm @ 50A, 10V | 2V @ 85µA | 55 nC @ 10 V | +5V, -16V | 3770 pF @ 25 V | - | 58W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
RQ6L020SPTCRMOSFET P-CH 60V 2A TSMT6 |
15,100 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4V, 10V | 210mOhm @ 2A, 10V | 3V @ 1mA | 7.2 nC @ 5 V | ±20V | 750 pF @ 10 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
IPA65R1K0CEXKSA1MOSFET N-CH 650V 7.2A TO220 |
1,456 |
|
Datasheet | CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.2A (Tc) | 10V | 1Ohm @ 1.5A, 10V | 3.5V @ 200µA | 15.3 nC @ 10 V | ±20V | 328 pF @ 100 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
IPD040N03LGATMA1MOSFET N-CH 30V 90A TO252-3 |
186 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.2V @ 250µA | 38 nC @ 10 V | ±20V | 3900 pF @ 15 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
FDMA7672MOSFET N-CH 30V 9A 6MICROFET |
7,388 |
|
Datasheet | PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 21mOhm @ 9A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 760 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
RQ7G080BGTCRNCH 40V 8A, TSMT8, POWER MOSFET |
5,756 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta) | 4.5V, 10V | 16.5mOhm @ 8A, 10V | 2.5V @ 1mA | 10.6 nC @ 10 V | ±20V | 530 pF @ 20 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
SVD2955T4GMOSFET P-CH 60V 12A DPAK |
4,682 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 10V | 180mOhm @ 6A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 750 pF @ 25 V | - | 55W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
TPH14006NH,L1QMOSFET N CH 60V 14A 8-SOP ADV |
4,380 |
|
Datasheet | U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta) | 6.5V, 10V | 14mOhm @ 7A, 10V | 4V @ 200µA | 16 nC @ 10 V | ±20V | 1300 pF @ 30 V | - | 1.6W (Ta), 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
IPD050N03LGATMA1MOSFET N-CH 30V 50A TO252-3 |
3,430 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 3200 pF @ 15 V | - | 68W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
RW4E045AJTCL1NCH 30V 4.5A POWER MOSFET: RW4E0 |
1,919 |
|
Datasheet | - | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 4 nC @ 4.5 V | ±12V | 450 pF @ 15 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-7T |
|
|
FDWS86380-F085MOSFET N-CH 80V 50A POWER56 |
1,434 |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.4mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1440 pF @ 40 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
|
IPD50N06S409ATMA2MOSFET N-CH 60V 50A TO252-31 |
250 |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 34µA | 47.1 nC @ 10 V | ±20V | 3785 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
AON7418MOSFET N-CH 30V 46A/50A 8DFN |
77,308 |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 46A (Ta), 50A (Tc) | 4.5V, 10V | 1.7mOhm @ 20A, 10V | 2.2V @ 250µA | 65 nC @ 10 V | ±20V | 2994 pF @ 15 V | - | 6.2W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3.3x3.3) |
|
SI7629DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
15,784 |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 2.5V, 10V | 4.6mOhm @ 20A, 10V | 1.5V @ 250µA | 177 nC @ 10 V | ±12V | 5790 pF @ 10 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI3438DV-T1-GE3MOSFET N-CH 40V 7.4A 6TSOP |
15,425 |
|
Datasheet | TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 7.4A (Tc) | 4.5V, 10V | 35.5mOhm @ 5A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 640 pF @ 20 V | - | 2W (Ta), 3.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SQJ443EP-T2_GE3P-CHANNEL 40-V (D-S) 175C MOSFET |
11,528 |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 29mOhm @ 18A, 10V | 2.5V @ 250µA | 57 nC @ 10 V | ±20V | 2030 pF @ 20 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
ISZ56DP15LMATMA1TRENCH >=100V |
9,850 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 1.35A (Ta), 6.7A (Tc) | 4.5V, 10V | 560mOhm @ 5A, 10V | 2V @ 724µA | 40 nC @ 10 V | ±20V | 1400 pF @ 75 V | - | 2.5W (Ta), 62.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 FL |
;;2.jpg "STD64N4F6AG")
|
STD64N4F6AGMOSFET N-CH 40V 54A DPAK |
5,836 |
|
Datasheet | STripFET™ F6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 54A (Tc) | 10V | 8.2mOhm @ 27A, 10V | 4.5V @ 250µA | 44 nC @ 10 V | ±20V | 2415 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

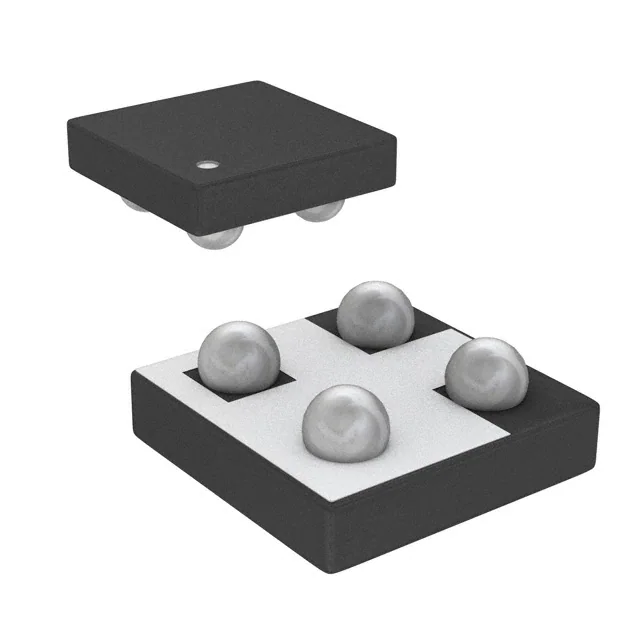

SI8409DB-T1-E1MOSFET P-CH 30V 4.6A 4MICROFOOT |
5,173 |
|
Datasheet | TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Ta) | 2.5V, 4.5V | 46mOhm @ 1A, 4.5V | 1.4V @ 250µA | 26 nC @ 4.5 V | ±12V | - | - | 1.47W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
