FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK303100LMOSFET N-CH 100V 15A U-G1 |
2,618 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4V, 10V | 135mOhm @ 8A, 10V | 2.5V @ 1mA | - | ±20V | 300 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G1 |
|
SK8603170LMOSFET N-CH 30V 20A/59A 8HSO |
7,322 |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 59A (Tc) | 4.5V, 10V | 4.1mOhm @ 14A, 10V | 3V @ 2.56mA | 17 nC @ 4.5 V | ±20V | 2940 pF @ 10 V | - | 2.8W (Ta), 24W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
MTMF82310BBFMOSFET N-CH 30V 18A SO8-F1-B |
8,332 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.2mOhm @ 5A, 10V | 2.5V @ 1mA | - | ±20V | 6000 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | SO8-F1-B |
|
SK8403160LMOSFET N-CH 30V 18A 8HSSO |
9,519 |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 14.5A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|
|
SK8603160LMOSFET N-CH 30V 22A/70A 8HSO |
8,971 |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 17A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2.8W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
FK8V03040LMOSFET N CH 33V 10A WMINI8-F1 |
8,788 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 33 V | 10A (Ta) | 4.5V, 10V | 10mOhm @ 5A, 10V | 2.5V @ 1.12mA | 7.2 nC @ 4.5 V | ±20V | 750 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
|
SK8603150LMOSFET N-CH 30V 26A/89A 8HSO |
3,780 |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 89A (Tc) | 4.5V, 10V | 2.5mOhm @ 20A, 10V | 3V @ 4.38mA | 28 nC @ 4.5 V | ±20V | 5180 pF @ 10 V | - | 2.9W (Ta), 34W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
2SK302200LMOSFET N-CH 60V 5A U-G2 |
4,928 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 5A (Tc) | 4V, 10V | 130mOhm @ 3A, 10V | 2.5V @ 1mA | - | ±20V | 220 pF @ 10 V | - | 1W (Ta), 10W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G2 |
|
2SK326800LMOSFET N-CH 100V 15A U-DL |
6,666 |
|
Datasheet | - | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 100mOhm @ 12A, 10V | 4V @ 1mA | - | ±20V | 960 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
|

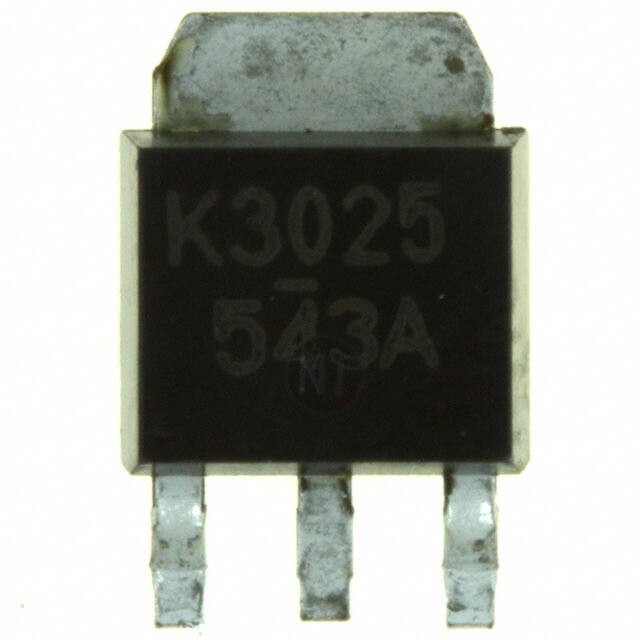

2SK302500LMOSFET N-CH 60V 30A U-DL |
7,920 |
|
Datasheet | - | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4V, 10V | 40mOhm @ 15A, 10V | 2.5V @ 1mA | - | ±20V | 1200 pF @ 10 V | - | 1W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
