FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDA70N20MOSFET N-CH 200V 70A TO3PN |
8,418 |
|
Datasheet | UniFET™ | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 70A (Tc) | 10V | 35mOhm @ 35A, 10V | 5V @ 250µA | 86 nC @ 10 V | ±30V | 3970 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
FDB24AN06LA0MOSFET N-CH 60V 7.8A/40A TO263AB |
5,130 |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.8A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 3V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FDD20AN06A0MOSFET N-CH 60V 8A/45A TO252AA |
6,400 |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta), 45A (Tc) | 10V | 20mOhm @ 45A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 950 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FDD24AN06LA0MOSFET N-CH 60V 7.1A/40A TO252AA |
6,607 |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.1A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 2V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
FDD26AN06A0MOSFET N-CH 60V 7A/36A TO252AA |
3,838 |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7A (Ta), 36A (Tc) | 10V | 26mOhm @ 36A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
FDP20AN06A0MOSFET N-CH 60V 9A/45A TO220-3 |
5,369 |
|
Datasheet | PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 9A (Ta), 45A (Tc) | 10V | 20mOhm @ 45A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 950 pF @ 25 V | - | 90W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FDP24AN06LA0MOSFET N-CH 60V 7.8A/40A TO220-3 |
5,331 |
|
Datasheet | PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.8A (Ta), 40A (Tc) | 5V, 10V | 19mOhm @ 40A, 10V | 3V @ 250µA | 21 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
BSS84_D87ZMOSFET P-CH 50V 130MA SOT23-3 |
8,547 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | 1.3 nC @ 5 V | ±20V | 73 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
FDG326PMOSFET P-CH 20V 1.5A SC88 |
8,744 |
|
Datasheet | PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 1.8V, 4.5V | 140mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 7 nC @ 4.5 V | ±8V | 467 pF @ 10 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|

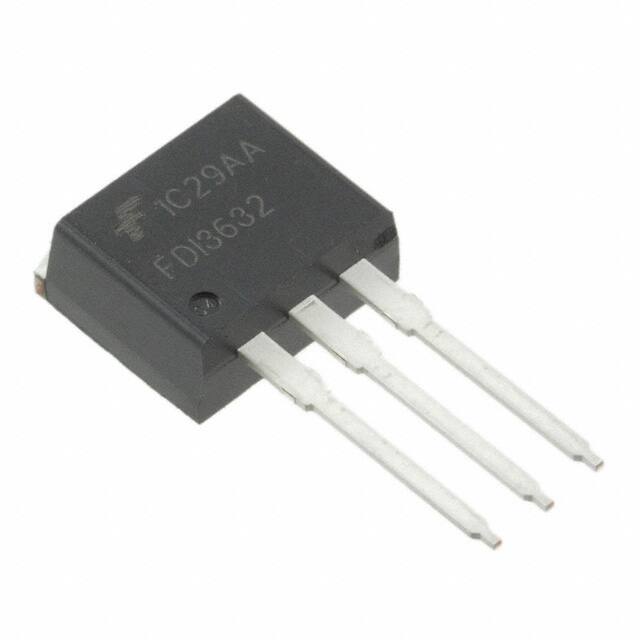

FDI3632MOSFET N-CH 100V 12A/80A I2PAK |
8,077 |
|
Datasheet | PowerTrench® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta), 80A (Tc) | 6V, 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
