FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMFSC1D9N06HLT8 60V LOW COSS DFN8 5X6 DUAL CO |
2,430 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Ta), 199A (Tc) | 4.5V, 10V | 1.9mOhm @ 50A, 10V | 2V @ 250µA | 64 nC @ 10 V | ±20V | 4910 pF @ 30 V | - | 3.8W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFN (5x6.15) |

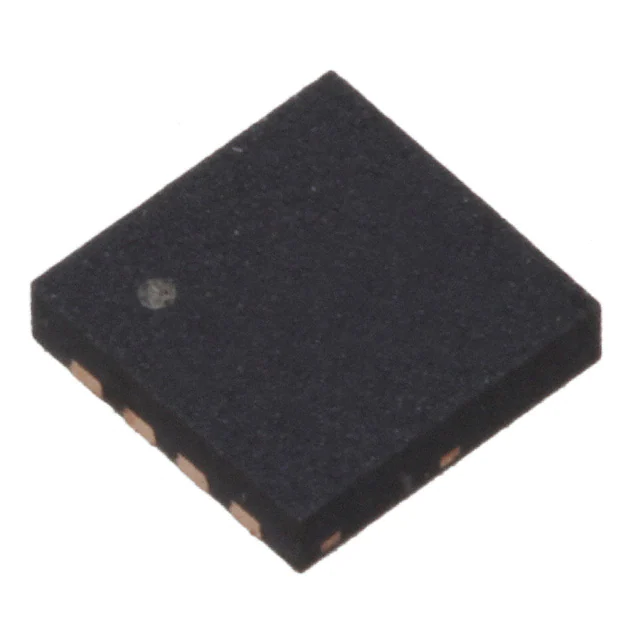

.JPG "FDMC5614P")
|
FDMC5614PMOSFET P-CH 60V 5.7A/13.5A 8MLP |
7,257 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.7A (Ta), 13.5A (Tc) | 4.5V, 10V | 100mOhm @ 5.7A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 1055 pF @ 30 V | - | 2.1W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
FDP6035ALMOSFET N-CH 30V 48A TO220-3 |
4,851 |
|
Datasheet | PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 12mOhm @ 24A, 10V | 3V @ 250µA | 18 nC @ 5 V | ±20V | 1250 pF @ 15 V | - | 52W (Tc) | -65°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
NVMFS5A140PLZT1GMOSFET P-CH 40V 20A/140A 5DFN |
7,355 |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 20A (Ta), 140A (Tc) | 4.5V, 10V | 4.2mOhm @ 50A, 10V | 2.6V @ 1mA | 136 nC @ 10 V | ±20V | 7400 pF @ 20 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
HUF75645S3SMOSFET N-CH 100V 75A D2PAK |
7,540 |
|
Datasheet | UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 14mOhm @ 75A, 10V | 4V @ 250µA | 238 nC @ 20 V | ±20V | 3790 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FDMS8560SMOSFET N-CH 25V 30A/70A 8PQFN |
2,129 |
|
Datasheet | PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 30A (Ta), 70A (Tc) | 4.5V, 10V | 1.8mOhm @ 30A, 10V | 2.2V @ 1mA | 68 nC @ 10 V | ±12V | 4350 pF @ 13 V | - | 2.5W (Ta), 65W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
NTTFS4C025NTAGNFET U8FL 30V 65A 6.1MOH |
7,243 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RFG40N10MOSFET N-CH 100V 40A TO247-3 |
7,280 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 40mOhm @ 40A, 10V | 4V @ 250µA | 300 nC @ 20 V | ±20V | - | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
HUF75631S3SMOSFET N-CH 100V 33A D2PAK |
4,739 |
|
Datasheet | UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Tc) | 10V | 40mOhm @ 33A, 10V | 4V @ 250µA | 79 nC @ 20 V | ±20V | 1220 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
MTD6N20ET4MOSFET N-CH 200V 6A DPAK |
2,164 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 6A (Tc) | - | 700mOhm @ 3A, 10V | 4V @ 250µA | 21 nC @ 10 V | - | 480 pF @ 25 V | - | - | - | - | - | Surface Mount | DPAK |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
