FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTP75N03-006MOSFET N-CH 30V 75A TO220AB |
7,134 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 6.5mOhm @ 37.5A, 10V | 2V @ 250µA | 75 nC @ 5 V | ±20V | 5635 pF @ 25 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
FQU13N06LTU-WSMOSFET N-CH 60V 11A IPAK |
23,543 |
|
Datasheet | QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 5V, 10V | 115mOhm @ 5.5A, 10V | 2.5V @ 250µA | 6.4 nC @ 5 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
2SK4101FS-V-HNCH 10V DRIVE SERIES |
1,082 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDB8442-F085MOSFET N-CH 40V 28A TO263AB |
6,903 |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 28A (Ta) | 10V | 5mOhm @ 80A, 10V | 4V @ 250µA | 235 nC @ 10 V | ±20V | 12200 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

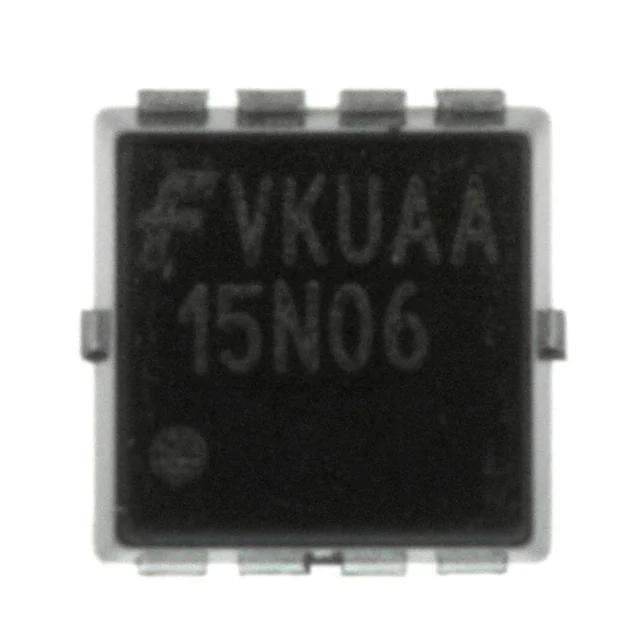

FDMC15N06MOSFET N-CH 55V 2.4A/15A 8MLP |
7,611 |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.4A (Ta), 15A (Tc) | 10V | 900mOhm @ 15A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
|
NTP5404NRGMOSFET N-CH 40V 24A/167A TO220AB |
4,215 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 167A (Tc) | 5V, 10V | 4.5mOhm @ 40A, 10V | 3.5V @ 250µA | 125 nC @ 10 V | ±20V | 7000 pF @ 32 V | - | 5.4W (Ta), 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
2SJ660-DL-EPCH 4V DRIVE SERIES |
737 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMS7558SMOSFET N-CH 25V 32A/49A 8QFN |
2,126 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 32A (Ta), 49A (Tc) | 4.5V, 10V | 1.25mOhm @ 32A, 10V | 3V @ 1mA | 119 nC @ 10 V | ±20V | 7770 pF @ 13 V | - | 2.5W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
ATP108-TL-HMOSFET P-CH 40V 70A ATPAK |
4,916 |
|
Datasheet | - | ATPAK (2 Leads+Tab) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Ta) | 4.5V, 10V | 10.4mOhm @ 35A, 10V | - | 79.5 nC @ 10 V | ±20V | 3850 pF @ 20 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | ATPAK |
|
FDMS36101L-F085MOSFET N-CH 100V 38A POWER56 |
8,277 |
|
Datasheet | PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 38A (Tc) | 4.5V, 10V | 26mOhm @ 20A, 10V | 3V @ 250µA | 84 nC @ 10 V | ±20V | 3945 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
