FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK652R6-40C,127MOSFET N-CH 40V 120A TO220AB |
2,041 |
|
Datasheet | TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 4.5V, 10V | 2.7mOhm @ 25A, 10V | 2.8V @ 1mA | 199 nC @ 10 V | ±16V | 11334 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
PHP45NQ10T,127NEXPERIA PHP45NQ10T - 47A, 100V, |
4,659 |
|
Datasheet | TrenchMOS™ | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 47A (Tc) | 10V | 25mOhm @ 25A, 10V | 4V @ 1mA | 61 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9509-75A,127MOSFET N-CH 75V 75A TO220AB |
3,678 |
|
Datasheet | TrenchMOS™ | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tj) | 4.5V, 10V | 8.5mOhm @ 25A, 10V | 2V @ 1mA | - | ±10V | 8840 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
PSMN7R8-120ESQPOWER FIELD-EFFECT TRANSISTOR, 7 |
430 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A (Tc) | 10V | 7.9mOhm @ 25A, 10V | 4V @ 1mA | 167 nC @ 10 V | ±20V | 9473 pF @ 60 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|

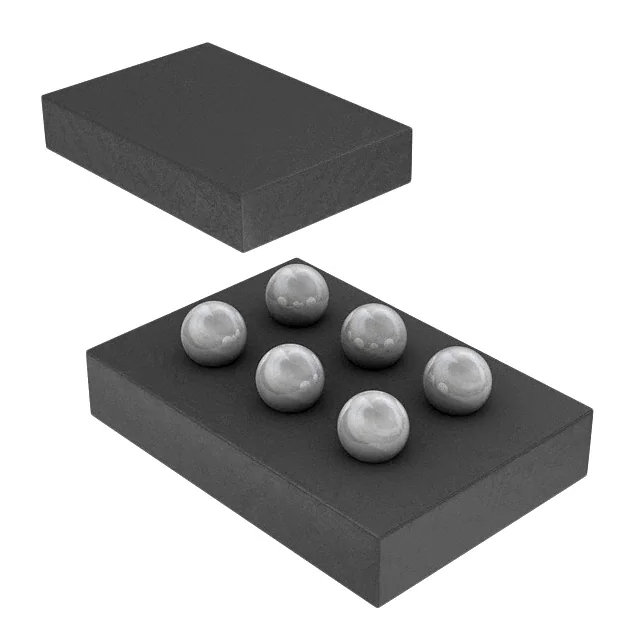

PMCM650VNEZMOSFET N-CH 12V 6.4A 6WLCSP |
445,500 |
|
Datasheet | - | 6-XFBGA, WLCSP | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 6.4A (Ta) | 4.5V | 25mOhm @ 3A, 4.5V | 900mV @ 250µA | 15.4 nC @ 4.5 V | ±8V | 1060 pF @ 6 V | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
|
BUK9505-30A,127MOSFET N-CH 30V 75A TO220AB |
6,736 |
|
Datasheet | TrenchMOS™ | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 4.6mOhm @ 25A, 10V | 2V @ 1mA | - | ±10V | 8600 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK7504-40A,127MOSFET N-CH 40V 75A TO220AB |
6,891 |
|
Datasheet | TrenchMOS™ | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 4.5mOhm @ 25A, 10V | 4V @ 1mA | 117 nC @ 10 V | ±20V | 5730 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK7109-75AIE,118MOSFET N-CH 75V 75A D2PAK |
1,754 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BUK761R4-30E,118MOSFET N-CH 30V 120A D2PAK |
8,113 |
|
Datasheet | TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 10V | 1.45mOhm @ 25A, 10V | 4V @ 1mA | 130 nC @ 10 V | ±20V | 9580 pF @ 25 V | - | 324W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK961R5-30E,118MOSFET N-CH 30V 120A D2PAK |
9,425 |
|
Datasheet | TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 5V, 10V | 1.3mOhm @ 25A, 10V | 2.1V @ 1mA | 93.4 nC @ 5 V | ±10V | 14500 pF @ 25 V | - | 324W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
