FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMN30XPEAXSMALL SIGNAL MOSFET FOR AUTOMOTI |
6,000 |
|
Datasheet | TrenchMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.4A (Ta) | 2.5V, 8V | 33mOhm @ 5.4A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
PMZB950UPEYLMOSFET P-CH 20V 500MA DFN1006B-3 |
8,320 |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.2V, 4.5V | 1.4Ohm @ 500mA, 4.5V | 950mV @ 250µA | 2.1 nC @ 4.5 V | ±8V | 43 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
PMN230ENEAXMOSFET N-CH 60V 1.8A 6TSOP |
7,478 |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Ta) | 4.5V, 10V | 222mOhm @ 1.8A, 10V | 2.7V @ 250µA | 3.8 nC @ 10 V | ±20V | 110 pF @ 30 V | - | 625mW (Ta), 5.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|

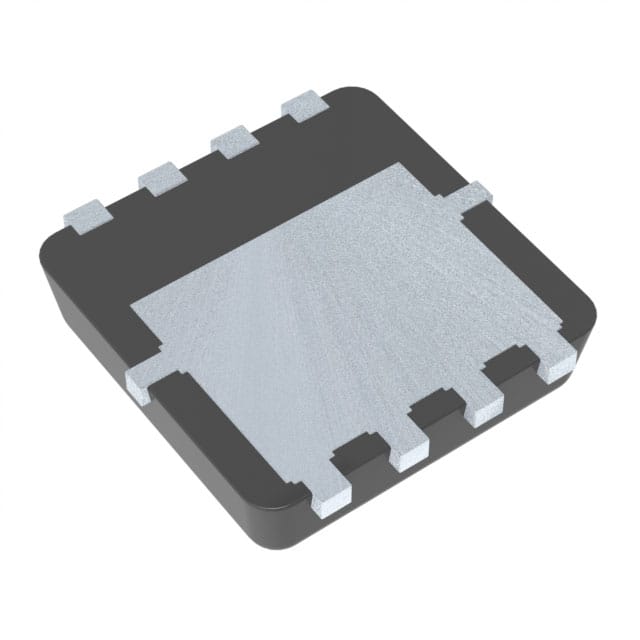

PXN9R0-30QLJPXN9R0-30QL/SOT8002/MLPAK33 |
4,681 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.4A (Ta), 41.8A (Tc) | 4.5V, 10V | 9.1mOhm @ 11.4A, 10V | 2.5V @ 250µA | 20.7 nC @ 10 V | ±20V | 865 pF @ 15 V | - | 1.9W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXN7R7-25QLJPXN7R7-25QL/SOT8002/MLPAK33 |
5,317 |
|
Datasheet | TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 11.8A (Ta), 32A (Tc) | 4.5V, 10V | 7.7mOhm @ 11.8A, 10V | 2.2V @ 250µA | 16.6 nC @ 10 V | ±20V | 770 pF @ 12.5 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXN6R2-25QLJPXN6R2-25QL/SOT8002/MLPAK33 |
4,963 |
|
Datasheet | TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 13.1A (Ta), 65A (Tc) | 4.5V, 10V | 6.2mOhm @ 13.1A, 10V | 2.2V @ 250µA | 25.5 nC @ 10 V | ±20V | 1200 pF @ 12.5 V | - | 1.7W (Ta), 40.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
PMV74EPERMOSFET P-CH 30V 2.8A TO236AB |
11,445 |
|
Datasheet | TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 4.5V, 10V | 90mOhm @ 2.8A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 356 pF @ 15 V | - | 510mW (Ta), 6.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|
PXP020-20QXJPXP020-20QX/SOT8002/MLPAK33 |
6,181 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta), 23.5A (Tc) | 2.5V, 4.5V | 20mOhm @ 7.7A, 4.5V | 1.25V @ 250µA | 29.1 nC @ 4.5 V | ±12V | 1900 pF @ 10 V | - | 1.7W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXP011-20QXJPXP011-20QX/SOT8002/MLPAK33 |
5,885 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta), 56.6A (Tc) | 2.5V, 4.5V | 11.4mOhm @ 10.5A, 4.5V | 1.25V @ 250µA | 65.1 nC @ 4.5 V | ±12V | 4200 pF @ 10 V | - | 1.8W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PMPB19R0UPEXSMALL SIGNAL MOSFETS FOR PORTABL |
2,156 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.6A (Ta) | 1.5V, 4.5V | 21mOhm @ 7.6A, 4.5V | 900mV @ 250µA | 24 nC @ 4.5 V | ±10V | 1275 pF @ 10 V | - | 1.8W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
