FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT20M38BVRGMOSFET N-CH 200V 67A TO247 |
44 |
|
Datasheet | POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 67A (Tc) | 10V | 38mOhm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | ±30V | 6120 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT56F50B2MOSFET N-CH 500V 56A T-MAX |
58 |
|
Datasheet | POWER MOS 8™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 56A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 2.5mA | 220 nC @ 10 V | ±30V | 8800 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|

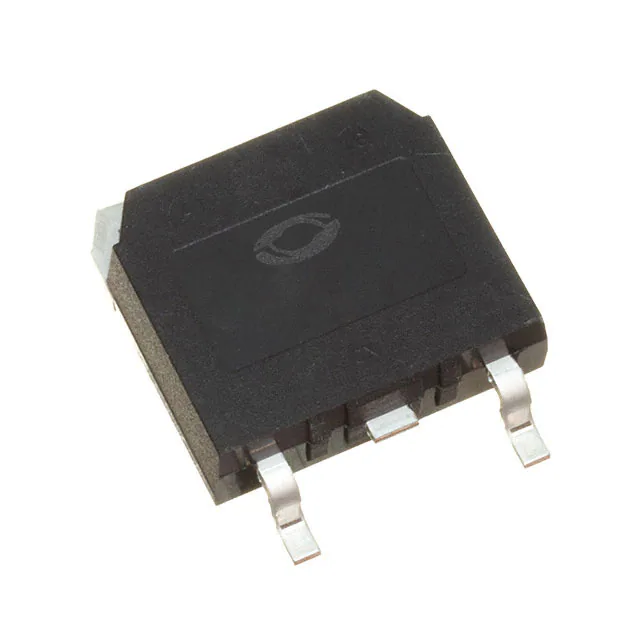

MSC080SMA120SSICFET N-CH 1200V 35A D3PAK |
24 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 35A | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 182W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
|
APT5014BLLGMOSFET N-CH 500V 35A TO247 |
41 |
|
Datasheet | POWER MOS 7® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 35A (Tc) | 10V | 140mOhm @ 17.5A, 10V | 5V @ 1mA | 72 nC @ 10 V | ±30V | 3261 pF @ 25 V | - | 403W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
MSC035SMA070SMOSFET N-CH 700V D3PAK |
68 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 65A (Tc) | 20V | 44mOhm @ 30A, 20V | 2.7V @ 1mA | 99 nC @ 20 V | +23V, -10V | 2010 pF @ 700 V | - | 206W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
|
APT106N60B2C6MOSFET N-CH 600V 106A T-MAX |
38 |
|
Datasheet | CoolMOS™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 106A (Tc) | 10V | 35mOhm @ 53A, 10V | 3.5V @ 3.4mA | 308 nC @ 10 V | ±20V | 8390 pF @ 25 V | - | 833W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|
APT5010LVRGMOSFET N-CH 500V 47A TO264 |
19 |
|
Datasheet | POWER MOS V® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 47A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | - | - | Through Hole | TO-264 [L] |
|
|
APT29F100B2MOSFET N-CH 1000V 30A T-MAX |
11 |
|
Datasheet | POWER MOS 8™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 30A (Tc) | 10V | 440mOhm @ 16A, 10V | 5V @ 2.5mA | 260 nC @ 10 V | ±30V | 8500 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|

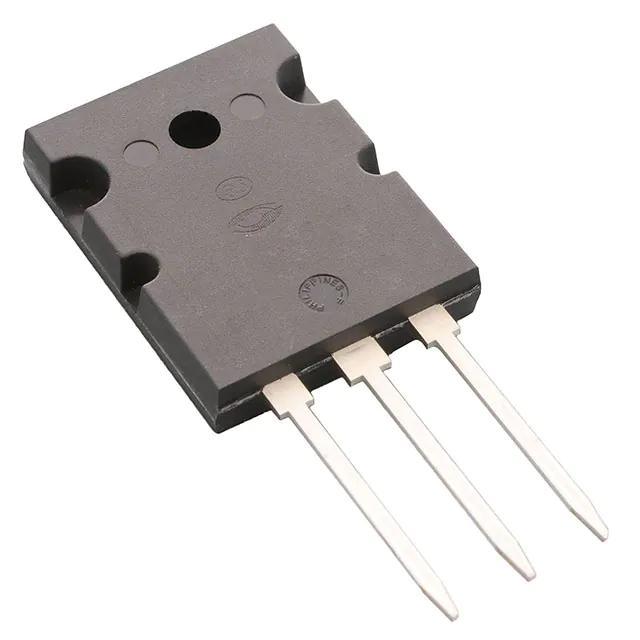

APT106N60LC6MOSFET N-CH 600V 106A TO264 |
38 |
|
Datasheet | CoolMOS™ | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 106A (Tc) | 10V | 35mOhm @ 53A, 10V | 3.5V @ 3.4mA | 308 nC @ 10 V | ±20V | 8390 pF @ 25 V | - | 833W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (L) |
|
|
APT48M80LMOSFET N-CH 800V 49A TO264 |
82 |
|
Datasheet | - | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 49A (Tc) | 10V | 200mOhm @ 24A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9330 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 [L] |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
