FETs, MOSFETs
Explore FETs, MOSFETs parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4833ADY-T1-E3MOSFET P-CH 30V 4.6A 8SO |
8,812 |
|
Datasheet | LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Tc) | 4.5V, 10V | 72mOhm @ 3.6A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 750 pF @ 15 V | Schottky Diode (Isolated) | 1.93W (Ta), 2.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI5445BDC-T1-E3MOSFET P-CH 8V 5.2A 1206-8 |
3,997 |
|
Datasheet | TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.2A (Ta) | 1.8V, 4.5V | 33mOhm @ 5.2A, 4.5V | 1V @ 250µA | 21 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|

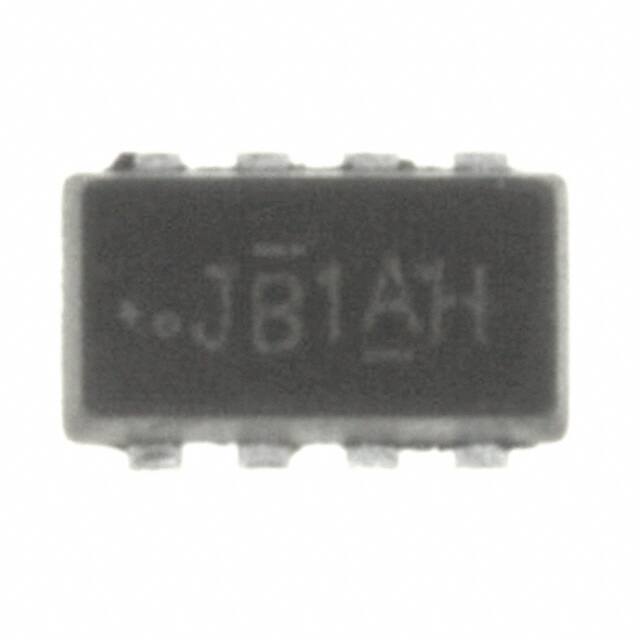

SI5855DC-T1-E3MOSFET P-CH 20V 2.7A 1206-8 |
7,548 |
|
Datasheet | TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.7A, 4.5V | 1V @ 250µA | 7.7 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI7100DN-T1-E3MOSFET N-CH 8V 35A PPAK1212-8 |
7,752 |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 35A (Tc) | 2.5V, 4.5V | 3.5mOhm @ 15A, 4.5V | 1V @ 250µA | 105 nC @ 8 V | ±8V | 3810 pF @ 4 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI7136DP-T1-E3MOSFET N-CH 20V 30A PPAK SO-8 |
6,117 |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 3380 pF @ 10 V | - | 5W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7382DP-T1-E3MOSFET N-CH 30V 14A PPAK SO-8 |
5,329 |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 4.7mOhm @ 24A, 10V | 3V @ 250µA | 40 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7384DP-T1-E3MOSFET N-CH 30V 11A PPAK SO-8 |
6,292 |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 18A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7485DP-T1-E3MOSFET P-CH 20V 12.5A PPAK SO-8 |
5,476 |
|
Datasheet | - | PowerPAK® SO-8 | Cut Tape (CT) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 12.5A (Ta) | - | 7.3mOhm @ 20A, 4.5V | 900mV @ 1mA | 150 nC @ 5 V | - | - | - | - | - | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7703EDN-T1-E3MOSFET P-CH 20V 4.3A PPAK1212-8 |
6,506 |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.3A (Ta) | 1.8V, 4.5V | 48mOhm @ 6.3A, 4.5V | 1V @ 800µA | 18 nC @ 4.5 V | ±12V | - | Schottky Diode (Isolated) | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
|
SI7858ADP-T1-E3MOSFET N-CH 12V 20A PPAK SO-8 |
6,100 |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 20A (Ta) | 2.5V, 4.5V | 2.6mOhm @ 29A, 4.5V | 1.5V @ 250µA | 80 nC @ 4.5 V | ±8V | 5700 pF @ 6 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SI8402DB-T1-E1MOSFET N-CH 20V 5.3A 2X2 4-MFP |
8,984 |
|
Datasheet | - | 4-XFBGA, CSPBGA | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.3A (Ta) | - | 37mOhm @ 1A, 4.5V | 1V @ 250µA | 26 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | 4-Microfoot |
|
SUM110N04-03P-E3MOSFET N-CH 40V 110A TO263 |
8,621 |
|
Datasheet | TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.1mOhm @ 30A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-04-E3MOSFET N-CH 40V 110A TO263 |
6,153 |
|
Datasheet | TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.5mOhm @ 30A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 3.75W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-2M3L-E3MOSFET N-CH 40V 110A TO263 |
2,902 |
|
Datasheet | TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 3V @ 250µA | 360 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM52N20-39P-E3MOSFET N-CH 200V 52A TO263 |
2,053 |
|
Datasheet | TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 52A (Tc) | 10V, 15V | 38mOhm @ 20A, 15V | 4.5V @ 250µA | 185 nC @ 15 V | ±25V | 4220 pF @ 25 V | - | 3.12W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
2SK2719(F)MOSFET N-CH 900V 3A TO3P |
7,557 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Ta) | 10V | 4.3Ohm @ 1.5A, 10V | 4V @ 1mA | 25 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
|
2SK2847(F)MOSFET N-CH 900V 8A TO3PIS |
5,627 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Ta) | 10V | 1.4Ohm @ 4A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±30V | 2040 pF @ 25 V | - | 85W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2917(F)MOSFET N-CH 500V 18A TO3PIS |
3,466 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 18A (Ta) | 10V | 270mOhm @ 10A, 10V | 4V @ 1mA | 80 nC @ 10 V | ±30V | 3720 pF @ 10 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2967(F)MOSFET N-CH 250V 30A TO3P |
6,449 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Ta) | 10V | 68mOhm @ 15A, 10V | 3.5V @ 1mA | 132 nC @ 10 V | ±20V | 5400 pF @ 10 V | - | 150W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
2SK2993(TE24L,Q)MOSFET N-CH 250V 20A TO220SM |
3,849 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 20A (Ta) | 10V | 105mOhm @ 10A, 10V | 3.5V @ 1mA | 100 nC @ 10 V | ±20V | 4000 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-220SM |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
