FETs, MOSFETs
Explore FETs, MOSFETs parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQA407CEJW-T1_GE3AUTOMOTIVE P-CHANNEL 20 V (D-S) |
5,888 |
|
Datasheet | TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 2.5V, 4.5V | 25mOhm @ 4.5A, 4.5V | 1.3V @ 250µA | 24 nC @ 4.5 V | ±12V | 2100 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK®SC-70W-6 |
|
DMP2039UFDE4-7MOSFET P-CH 25V 7.3A 6DFN |
2,935 |
|
Datasheet | - | 6-PowerXDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 25 V | 7.3A (Ta) | 1.8V, 4.5V | 26mOhm @ 6.4A, 4.5V | 1V @ 250µA | 28.2 nC @ 4.5 V | ±8V | 2530 pF @ 15 V | - | 690mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN2020-6 |
|
DMG7401SFG-13MOSFET P-CH 30V 9.8A PWRDI3333-8 |
1,415 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 20V | 11mOhm @ 12A, 20V | 3V @ 250µA | 58 nC @ 10 V | ±25V | 2987 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
|
NTTFS5C680NLTAGMOSFET N-CH 60V 7.82A/20A 8WDFN |
1,330 |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.82A (Ta), 20A (Tc) | 4.5V, 10V | 26.5mOhm @ 10A, 10V | 2.2V @ 13µA | 6 nC @ 10 V | ±20V | 327 pF @ 25 V | - | 3W (Ta), 20W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
PJQ4404P_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
4,998 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 60A (Tc) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 2W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4448P-AU_R2_000A140V N-CHANNEL ENHANCEMENT MODE M |
4,790 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 11mOhm @ 8A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | ±20V | 1040 pF @ 20 V | - | 2.4W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
RQ5E030RPTLMOSFET P-CH 30V 3A TSMT3 |
2,900 |
|
Datasheet | - | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4V, 10V | 75mOhm @ 3A, 10V | 2.5V @ 1mA | 5.2 nC @ 5 V | ±20V | 480 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
PJL9414_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
2,317 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SIAA02DJ-T1-GE3MOSFET N-CH 20V 22A/52A PPAK |
7,180 |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 22A (Ta), 52A (Tc) | 2.5V, 10V | 4.7mOhm @ 8A, 10V | 1.6V @ 250µA | 33 nC @ 10 V | +12V, -8V | 1250 pF @ 10 V | - | 3.5W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
ACMSP3415-HFMOSFET P-CH 20V 4A SOT23-3 |
2,872 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.8V, 4.5V | 50mOhm @ 4A, 4.5V | 1V @ 250µA | 11 nC @ 4.5 V | ±10V | 1600 pF @ 10 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
DMN4036LK3-13MOSFET N-CH 40V 8.5A TO252-3 |
1,802 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8.5A (Ta) | 4.5V, 10V | 36mOhm @ 12A, 10V | 3V @ 250µA | 9.2 nC @ 10 V | ±20V | 453 pF @ 20 V | - | 2.12W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
NTLUS030N03CTAGMOSFET N-CH 30V 4.5A 6UDFN |
1,888 |
|
Datasheet | µCool™ | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V, 10V | 18mOhm @ 6A, 10V | 2.2V @ 250µA | 8 nC @ 10 V | ±20V | 400 pF @ 15 V | - | 640mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|
TSM4NB60CH C5GMOSFET N-CH 600V 4A TO251 |
14,316 |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 4.5V @ 250µA | 14.5 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|

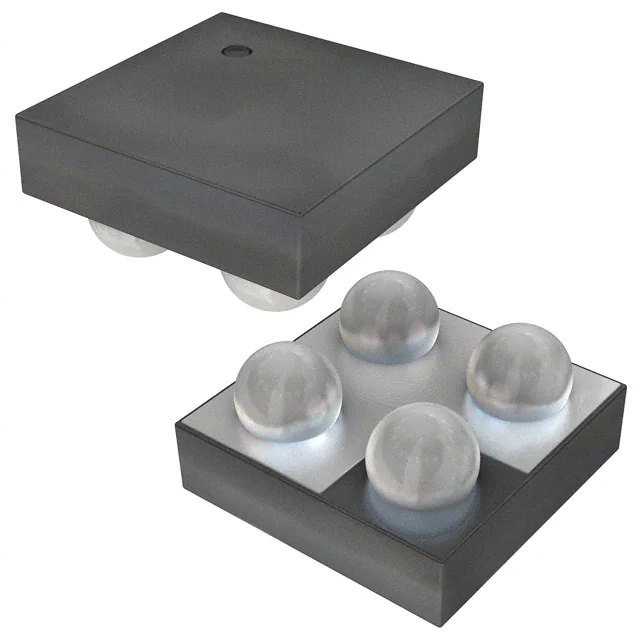

SI8424CDB-T1-E1MOSFET N-CH 8V 4MICROFOOT |
1,980 |
|
Datasheet | TrenchFET® | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8 V | 6.3A (Ta) | 1.2V, 4.5V | 20mOhm @ 2A, 4.5V | 800mV @ 250µA | 40 nC @ 4.5 V | ±5V | 2340 pF @ 4 V | - | 1.1W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
SQA446CEJW-T1_GE3AUTOMOTIVE N-CHANNEL 20 V (D-S) |
38,713 |
|
Datasheet | TrenchFET® | 6-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 2.5V, 4.5V | 17.5mOhm @ 4.5A, 4.5V | 1.3V @ 250µA | 10 nC @ 4.5 V | ±12V | 910 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK®SC-70W-6 |
|
RF6E045AJTCRMOSFET N-CHANNEL 30V 4.5A TUMT6 |
4,548 |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V | 23.7mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 8.1 nC @ 4.5 V | ±12V | 900 pF @ 15 V | - | 1W (Tc) | 150°C (TJ) | - | - | Surface Mount | TUMT6 |
|
PSMN013-30YLC,115MOSFET N-CH 30V 32A LFPAK56 |
4,438 |
|
Datasheet | - | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Tc) | 10V | 13.6mOhm @ 10A, 10V | 1.95V @ 1mA | 8.3 nC @ 10 V | ±20V | 521 pF @ 15 V | - | 26W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
DMP2066LSS-13MOSFET P-CH 20V 6.5A 8SOP |
3,726 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 5.8A, 4.5V | 1.2V @ 250µA | - | ±12V | 820 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
RQ5C025TPTLMOSFET P-CH 20V 2.5A TSMT3 |
2,990 |
|
Datasheet | - | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 95mOhm @ 2.5A, 4.5V | 2V @ 1mA | 7 nC @ 4.5 V | ±12V | 630 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
RQ5E025SPTLMOSFET P-CH 30V 2.5A TSMT3 |
2,983 |
|
Datasheet | - | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4V, 10V | 98mOhm @ 2.5A, 10V | 2.5V @ 1mA | 5.4 nC @ 5 V | ±20V | 460 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
