FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPU60R600C6BKMA1MOSFET N-CH 600V 7.3A TO251-3 |
8,565 |
|
Datasheet | CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
|
IPU60R950C6BKMA1MOSFET N-CH 600V 4.4A TO251-3 |
9,376 |
|
Datasheet | CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 130µA | 1.5 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
IPB65R045C7ATMA1MOSFET N-CH 650V 46A D2PAK |
9,993 |
|
Datasheet | CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB65R225C7ATMA1MOSFET N-CH 650V 11A D2PAK |
5,619 |
|
Datasheet | CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 225mOhm @ 4.8A, 10V | 4V @ 240µA | 20 nC @ 10 V | ±20V | 996 pF @ 400 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
.jpg "IRFS7434-7PPBF")
|
IRFS7434-7PPBFMOSFET N-CH 40V 240A D2PAK |
4,115 |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 6V, 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
IRFR7446PBFMOSFET N-CH 40V 56A TO252 |
9,720 |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 6V, 10V | 3.9mOhm @ 56A, 10V | 3.9V @ 100µA | 130 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 98W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
AUIRFP4409MOSFET N-CH 300V 38A TO247AC |
9,392 |
|
Datasheet | HEXFET® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 69mOhm @ 24A, 10V | 5V @ 250µA | 125 nC @ 10 V | ±20V | 5168 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|

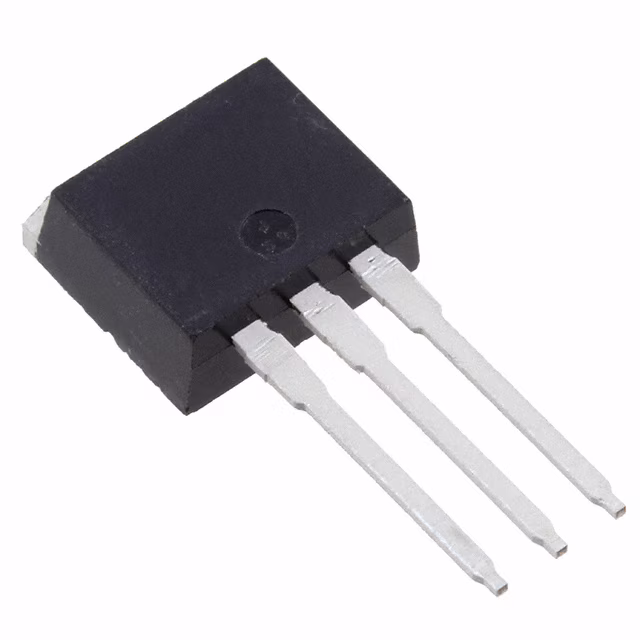

AUIRFSL8409MOSFET N-CH 40V 195A TO262 |
4,342 |
|
Datasheet | HEXFET® | TO-262-3 Short Leads, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
IRFHM9391TRPBFMOSFET P-CH 30V 11A 8PQFN |
5,704 |
|
Datasheet | HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 14.6mOhm @ 11A, 10V | 2.4V @ 25µA | 16 nC @ 10 V | ±25V | 1543 pF @ 25 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3), Power33 |
|
IRL6283MTRPBFMOSFET N-CH 20V 38A DIRECTFET |
3,209 |
|
Datasheet | HEXFET®, StrongIRFET™ | DirectFET™ Isometric MD | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 38A (Ta), 211A (Tc) | 2.5V, 4.5V | 0.75mOhm @ 50A, 10V | 1.1V @ 100µA | 158 nC @ 4.5 V | ±12V | 8292 pF @ 10 V | - | 2.1W (Ta), 63W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MD |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
