FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPTC015N10NM5ATMA1MOSFET N-CH 100V 35A/354A HDSOP |
2,766 |
|
Datasheet | OptiMOS™ 5 | 16-PowerSOP Module | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Ta), 354A (Tc) | 6V, 10V | 1.5mOhm @ 100A, 10V | 3.8V @ 275µA | 208 nC @ 10 V | ±20V | 16000 pF @ 50 V | - | 3.8W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HDSOP-16-2 |
|
SPW47N65C3FKSA1MOSFET N-CH 650V 47A TO247-3 |
5,397 |
|
Datasheet | CoolMOS™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 47A (Tc) | 10V | 70mOhm @ 30A, 10V | 3.9V @ 2.7mA | 255 nC @ 10 V | ±20V | 7000 pF @ 25 V | - | 415W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
IRLMS5703TRMOSFET P-CH 30V 2.3A 6-TSOP |
6,925 |
|
Datasheet | - | SOT-23-6 | Cut Tape (CT) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.3A (Ta) | - | 200mOhm @ 1.6A, 10V | 1V @ 250µA | 11 nC @ 10 V | - | 170 pF @ 25 V | - | - | - | - | - | Surface Mount | Micro6™(SOT23-6) |
|
IGT60R190D1SATMA1GANFET N-CH 600V 12.5A 8HSOF |
7,183 |
|
Datasheet | CoolGaN™ | 8-PowerSFN | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 12.5A (Tc) | - | - | 1.6V @ 960µA | - | -10V | 157 pF @ 400 V | - | 55.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HSOF-8-3 |
|
|
IRLMS6702TRMOSFET P-CH 20V 2.4A 6-TSOP |
4,270 |
|
Datasheet | - | SOT-23-6 | Cut Tape (CT) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.4A (Ta) | - | 200mOhm @ 1.6A, 4.5V | 700mV @ 250µA (Min) | 8.8 nC @ 4.5 V | - | 210 pF @ 15 V | - | - | - | - | - | Surface Mount | Micro6™(SOT23-6) |
|
IPZA60R024P7XKSA1MOSFET N-CH 600V 101A TO247-4-3 |
2,846 |
|
Datasheet | CoolMOS™ P7 | TO-247-4 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 101A (Tc) | 10V | 24mOhm @ 42A, 10V | 4V @ 2.03mA | 164 nC @ 10 V | ±20V | 7144 pF @ 400 V | - | 291W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-4-3 |
|
GS66504B-TRGS66504B-TR |
8,803 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 6V | 130mOhm @ 4.5A, 6V | 1.3V @ 3.5mA | 3 nC @ 6 V | +7V, -10V | 130 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|

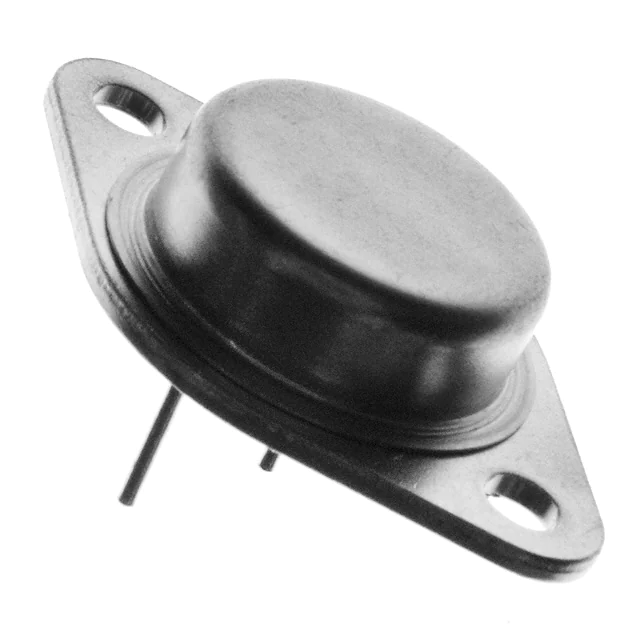

IRF450MOSFET N-CH 500V 12A TO204AA |
6,123 |
|
Datasheet | HEXFET® | TO-204AA, TO-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 12A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
IRFP4568PBFMOSFET N-CH 150V 171A TO247AC |
3 |
|
Datasheet | HEXFET® | TO-247-3 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 150 V | 171A (Tc) | 10V | 5.9mOhm @ 103A, 10V | 5V @ 250µA | 227 nC @ 10 V | ±30V | 10470 pF @ 50 V | - | 517W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IMSQ120R053M2HHXUMA1SIC DISCRETE |
9,196 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
