FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRF4905SMOSFET P-CH 55V 42A D2PAK |
3,073 |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 55 V | 42A (Tc) | 10V | 20mOhm @ 42A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPB018N10N5ATMA1TRENCH >=100V |
294 |
|
Datasheet | OptiMOS™ 5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Ta), 176A (Tc) | 6V, 10V | 1.83mOhm @ 100A, 10V | 3.8V @ 270µA | 210 nC @ 10 V | ±20V | 16000 pF @ 50 V | - | 3.8W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|

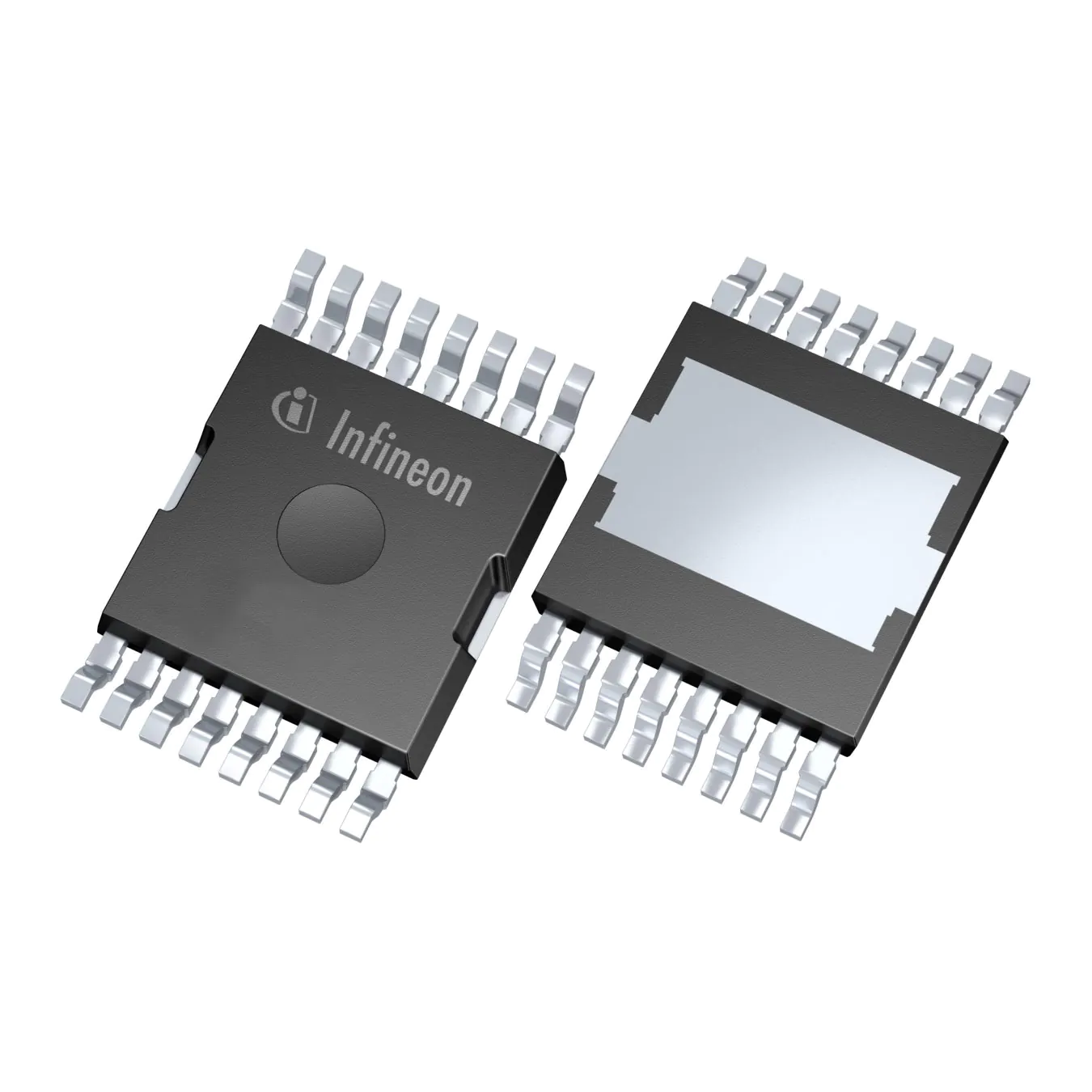

IPTC012N08NM5ATMA1MOSFET N-CH 80V 40A/396A HDSOP |
186 |
|
Datasheet | OptiMOS™ 5 | 16-PowerSOP Module | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 40A (Ta), 396A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.8V @ 275µA | 219 nC @ 10 V | ±20V | 16000 pF @ 40 V | - | 3.8W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HDSOP-16-2 |
|
AUIRF2804LMOSFET N-CH 40V 195A TO262 |
959 |
|
Datasheet | HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 2mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
AUIRFB8409MOSFET N-CH 40V 195A TO220AB |
1,986 |
|
Datasheet | HEXFET® | TO-220-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.3mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
AUIRF1324WLMOSFET N-CH 24V 240A TO262-3 |
986 |
|
Datasheet | HEXFET® | TO-262-3 Wide Leads | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 24 V | 240A (Tc) | 10V | 1.3mOhm @ 195A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 7630 pF @ 19 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262-3 Wide |
|
IPW60R075CPAFKSA1AUTOMOTIVE |
174 |
|
Datasheet | CoolMOS™ | TO-247-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 39A (Tc) | 10V | 75mOhm @ 26A, 10V | 3.5V @ 1.74mA | 116 nC @ 10 V | ±20V | 4000 pF @ 100 V | - | 313W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-41 |
|
|
BTS240AHKSA1N-CHANNEL POWER MOSFET |
12,772 |
|
Datasheet | - | TO-218-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 58A (Tc) | 10V | 18mOhm @ 47A, 10V | 3.5V @ 1mA | - | ±20V | 4300 pF @ 25 V | - | 170W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO218-3-1 |
|
AUIRFS8409-7PMOSFET N-CH 40V 240A D2PAK |
300 |
|
Datasheet | HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 0.75mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
IGO60R070D1AUMA2GAN HV |
785 |
|
Datasheet | CoolGaN™ | 20-PowerSOIC (0.433", 11.00mm Width) | Tape & Reel (TR) | Last Time Buy | N-Channel | GaNFET (Gallium Nitride) | 600 V | 31A (Tc) | - | - | 1.6V @ 2.6mA | - | -10V | 380 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-85 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
