FET, MOSFET Arrays
Explore FET, MOSFET Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPCP8401(TE85L,F)MOSFET N/P-CH 20V/12V 0.1A PS-8 |
9,897 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V, 12V | 100mA, 5.5A | 3Ohm @ 10mA, 4V | 1.1V @ 100µA | - | 9.3pF @ 3V | 1W | 150°C (TJ) | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
TPC8212-H(TE12LQ,MMOSFET 2N-CH 30V 6A 8SOP |
4,004 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 6A | 21mOhm @ 3A, 10V | 2.3V @ 1mA | 16nC @ 10V | 840pF @ 10V | 450mW | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
|
TPC8213-H(TE12LQ,MMOSFET 2N-CH 60V 5A 8SOP |
4,331 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 5A | 50mOhm @ 2.5A, 10V | 2.3V @ 1mA | 11nC @ 10V | 625pF @ 10V | 450mW | 150°C (TJ) | - | - | Surface Mount | 8-SOP (5.5x6.0) |
|
SI7501DN-T1-GE3MOSFET N/P-CH 30V 5.4A PPAK 1212 |
7,641 |
|
Datasheet | - | PowerPAK® 1212-8 Dual | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel, Common Drain | Logic Level Gate | 30V | 5.4A, 4.5A | 35mOhm @ 7.7A, 10V | 3V @ 250µA | 14nC @ 10V | - | 1.6W | - | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|

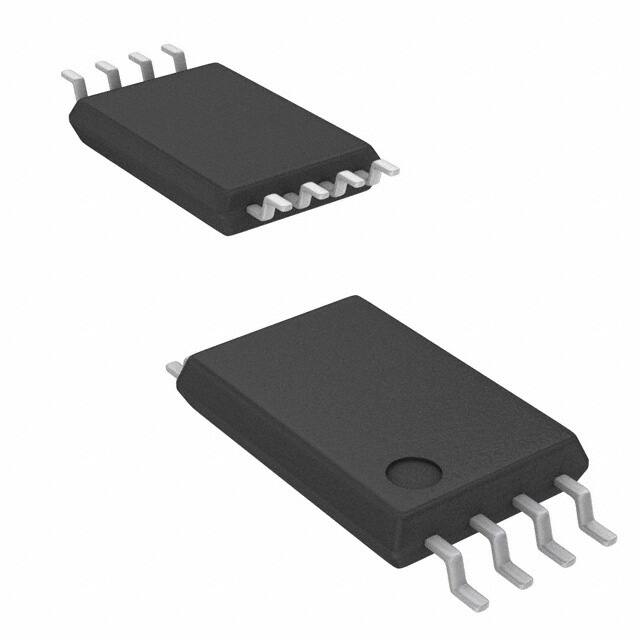

SIB911DK-T1-GE3MOSFET 2P-CH 20V 2.6A PPAK8X8 |
7,216 |
|
Datasheet | TrenchFET® | PowerPAK® SC-75-6L Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 2.6A | 295mOhm @ 1.5A, 4.5V | 1V @ 250µA | 4nC @ 8V | 115pF @ 10V | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6L Dual |
|
FDD8424H_F085MOSFET N/P-CH 40V 9A/6.5A TO252 |
3,155 |
|
Datasheet | PowerTrench® | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 40V | 9A, 6.5A | 24mOhm @ 9A, 10V | 3V @ 250µA | 20nC @ 10V | 1000pF @ 20V | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
UP04979G0LMOSFET N/P-CH 50V/30V SSMINI6-F2 |
8,127 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 50V, 30V | 100mA | 12Ohm @ 10mA, 4V | 1.5V @ 1µA | - | - | 125mW | 125°C (TJ) | - | - | Surface Mount | SSMini6-F2 |
|
FDG6332C-F085MOSFET N/P-CH 20V 0.7A SC88 |
5,170 |
|
Datasheet | PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 700mA, 600mA | 300mOhm @ 700mA, 4.5V | 1.5V @ 250µA | 1.5nC @ 4.5V | 113pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-88 (SC-70-6) |
|
DMP57D5UV-7MOSFET 2P-CH 50V 0.16A SOT563 |
7,469 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 50V | 160mA | 6Ohm @ 100mA, 4V | 1V @ 250µA | - | 29pF @ 25V | 400mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
FDC6036P_F077MOSFET 2P-CH 20V 5A SSOT6 |
3,838 |
|
Datasheet | PowerTrench® | 6-SSOT Flat-lead, SuperSOT™-6 FLMP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 5A | 44mOhm @ 5A, 4.5V | 1.5V @ 250µA | 14nC @ 4.5V | 992pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
2N7002DW L6327MOSFET 2N-CH 60V 0.3A SOT363 |
2,781 |
|
Datasheet | OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 300mA | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.6nC @ 10V | 20pF @ 25V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
|
|
BSD223P L6327MOSFET 2P-CH 20V 0.39A SOT363 |
8,392 |
|
Datasheet | OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 390mA | 1.2Ohm @ 390mA, 4.5V | 1.2V @ 1.5µA | 0.62nC @ 4.5V | 56pF @ 15V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
|
|
BSD235C L6327MOSFET N/P-CH 20V 0.95A SOT363 |
7,620 |
|
Datasheet | OptiMOS™ | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 950mA, 530mA | 350mOhm @ 950mA, 4.5V | 1.2V @ 1.6µA | 0.34nC @ 4.5V | 47pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT363-PO |
|
|
BSD235N L6327MOSFET 2N-CH 20V 0.95A SOT363 |
2,922 |
|
Datasheet | OptiMOS™ 2 | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 950mA | 350mOhm @ 950mA, 4.5V | 1.2V @ 1.6µA | 0.32nC @ 4.5V | 63pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SOT363-PO |
|
BSL205NL6327HTSA1MOSFET 2N-CH 20V 2.5A TSOP6-6 |
5,752 |
|
Datasheet | OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 2.5A | 50mOhm @ 2.5A, 4.5V | 1.2V @ 11µA | 3.2nC @ 4.5V | 419pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL214NL6327HTSA1MOSFET 2N-CH 20V 1.5A TSOP6-6 |
9,996 |
|
Datasheet | OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 1.5A | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.8nC @ 5V | 143pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL215CL6327HTSA1MOSFET N/P-CH 20V 1.5A TSOP6-6 |
6,722 |
|
Datasheet | OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 1.5A | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.73nC @ 4.5V | 143pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL315PL6327HTSA1MOSFET 2P-CH 30V 1.5A TSOP6-6 |
9,622 |
|
Datasheet | OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 1.5A | 150mOhm @ 1.5A, 10V | 2V @ 11µA | 2.3nC @ 5V | 282pF @ 15V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
|
BSL316CL6327HTSA1MOSFET N/P-CH 30V 1.4A TSOP6-6 |
9,943 |
|
Datasheet | OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 1.4A, 1.5A | 160mOhm @ 1.4A, 10V | 2V @ 3.7µA | 0.6nC @ 5V | 94pF @ 15V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSOP6-6 |
|
MTM763200LBFMOSFET N/P-CH 20V 1.9A WSMINI6 |
2,852 |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 20V | 1.9A, 1.2A | 105mOhm @ 1A, 4V | 1.3V @ 1mA | - | 280pF @ 10V | 700mW | 150°C (TJ) | - | - | Surface Mount | WSMini6-F1-B |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
