FET, MOSFET Arrays
Explore FET, MOSFET Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

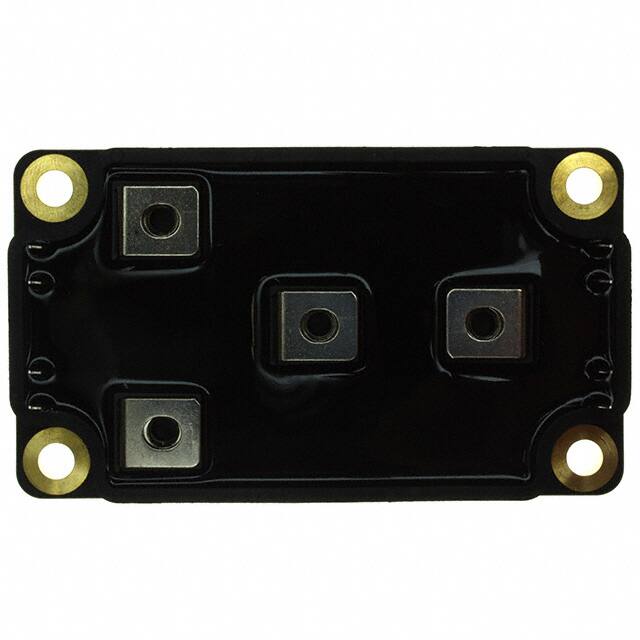

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
8,924 |
|
Datasheet | POWER MOS 7® | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6-P |
8,239 |
|
Datasheet | POWER MOS 7® | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
CAS100H12AM1MOSFET 2N-CH 1200V 168A MODULE |
4,424 |
|
Datasheet | Z-FET™ | Module | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 168A | 20mOhm @ 20A, 20V | 3.1V @ 50mA | - | 9500pF @ 800V | 568W | - | - | - | Chassis Mount | Module |
|
|
CAS110M12BM2SIC 1200V 110A |
3,405 |
|
Datasheet | - | Module | Bulk | Not For New Designs | Silicon Carbide (SiC) | - | - | 1200V (1.2kV) | 110A | - | - | - | - | - | - | - | - | Chassis Mount | - |
.jpg "MSCSM120HM16CT3AG")
|
MSCSM120HM16CT3AGMOSFET 4N-CH 1200V 173A SP3F |
9,755 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
QJD1210SA1MOSFET 2N-CH 1200V 100A MODULE |
4,557 |
|
Datasheet | - | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 520W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
QJD1210SB1SIC 1200V 10A MOD |
7,524 |
|
Datasheet | * | - | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
5,946 |
|
Datasheet | CoolMOS™ | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | 13000pF @ 100V | 625W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
CCS050M12CM2MOSFET 6N-CH 1200V 87A MODULE |
5,161 |
|
Datasheet | Z-FET™ Z-Rec™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 87A (Tc) | 34mOhm @ 50A, 20V | 2.3V @ 2.5mA | 180nC @ 20V | 2810pF @ 800V | 337W | 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
WAS110M12BM2RF MOSFET 1200V |
5,967 |
|
Datasheet | - | - | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QJD1210SA2MOSFET 2N-CH 1200V 100A MODULE |
4,350 |
|
Datasheet | - | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 415W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
APTMC170AM60CT1AGMOSFET 2N-CH 1700V 50A SP1 |
9,853 |
|
Datasheet | - | SP1 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 50A (Tc) | 60mOhm @ 50A, 20V | 2.3V @ 2.5mA (Typ) | 190nC @ 20V | 3080pF @ 1000V | 350W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
MSCSM70HM05CAGSIC MOSFET |
2,214 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MSCSM70TAM10CTPAGMOSFET 6N-CH 700V 238A SP6-P |
3,512 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM70AM025CT6AGMOSFET 700V 538A SP6C |
8,918 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | - | - | 700V | 538A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP6C |
|
MSCSM120TAM16CTPAGMOSFET 6N-CH 1200V 171A SP6-P |
8,055 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 171A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 728W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
MSCSM120HM083CAGSIC MOSFET |
3,522 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCSM120AM042CT6AGMOSFET 2N-CH 1200V 495A SP6C |
7,444 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
MSCSM70AM025CT6LIAGMOSFET 2N-CH 700V 689A SP6C LI |
8,656 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA (Typ) | 1290nC @ 20V | 27000pF @ 700V | 1882W (Tc) | - | - | - | Chassis Mount | SP6C LI |
|
|
QJD1210010MOSFET 2N-CH 1200V 100A MODULE |
2,949 |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A (Tc) | 25mOhm @ 100A, 20V | 5V @ 10mA | 500nC @ 20V | 10200pF @ 800V | 1080W | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
