FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJT7828_R1_00001MOSFET 2N-CH 30V 0.3A SOT363 |
195 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 300mA (Ta) | 1.2Ohm @ 300mA, 4.5V | 1V @ 250µA | 0.9nC @ 4.5V | 45pF @ 10V | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
PJT7872B_R1_00001MOSFET 2N-CH 60V 0.25A SOT363 |
922 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 250mA (Ta) | 3Ohm @ 600mA, 10V | 2.5V @ 250µA | 0.82nC @ 4.5V | 34pF @ 25V | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
2N7002KDW-AU_R1_000A1MOSFET 2N-CH 60V 0.25A SOT363 |
5,828 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 250mA (Ta) | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.8nC @ 5V | 35pF @ 25V | 350mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
|
PJT7812_R1_00001MOSFET 2N-CH 30V 0.5A SOT363 |
2,924 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 500mA (Ta) | 1.2Ohm @ 500mA, 4.5V | 1.1V @ 250µA | 0.87nC @ 4.5V | 34pF @ 15V | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
PJX8812_R1_00001MOSFET 2N-CH 30V 0.35A SOT563 |
3,742 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 350mA (Ta) | 1.2Ohm @ 350mA, 4.5V | 1.1V @ 250µA | 0.87nC @ 4.5V | 34pF @ 15V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
PJS6801_S1_00001MOSFET 2P-CH 30V 3.2A SOT23-6 |
3,519 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 3.2A (Ta) | 74mOhm @ 3.2A, 10V | 1.3V @ 250µA | 15nC @ 10V | 633pF @ 15V | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
PJQ1821_R1_00001MOSFET 2P-CH 20V 0.6A 6DFN |
4,869 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 600mA (Ta) | 600mOhm @ 300mA, 4.5V | 1V @ 250µA | 1.1nC @ 4.5V | 51pF @ 10V | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1010-6L |
|
|
PJS6830_S1_00001MOSFET 2N-CH 20V 2A SOT23-6 |
5,559 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 2A (Ta) | 150mOhm @ 2A, 4.5V | 1V @ 250µA | 1.8nC @ 4.5V | 92pF @ 10V | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|

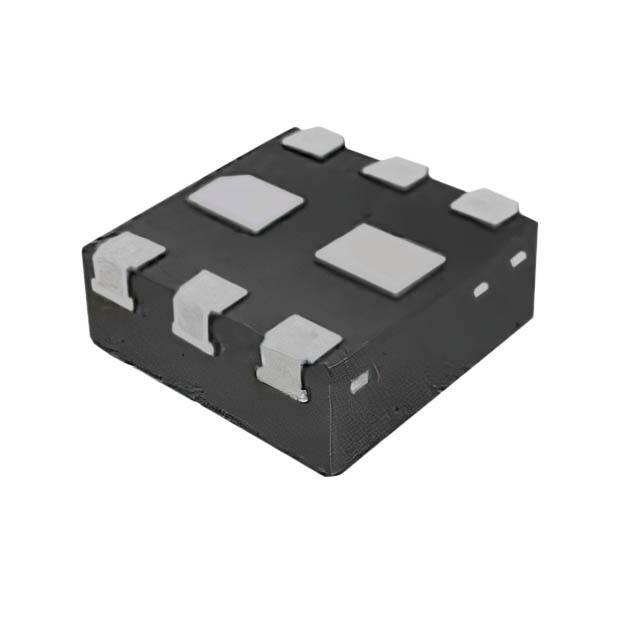

PJQ1820_R1_00001MOSFET 2N-CH 20V 0.8A 6DFN |
2,566 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Not For New Designs | - | 2 N-Channel (Dual) | - | 20V | 800mA (Ta) | 300mOhm @ 500mA, 4.5V | 1V @ 250µA | 1.1nC @ 4.5V | 46pF @ 10V | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1010-6L |
|
|
PJS6835_S2_00001MOSFET 2P-CH 20V 0.5A SOT23-6 |
6,836 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.2V Drive | 20V | 500mA (Ta) | 1.2Ohm @ 500mA, 4.5V | 1V @ 250µA | 1.4nC @ 4.5V | 38pF @ 10V | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
