FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMFD5C650NLT1GMOSFET 2N-CH 60V 21A 8DFN |
9,168 |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 21A (Ta), 111A (Tc) | 4.2mOhm @ 20A, 10V | 2.2V @ 98µA | 37nC @ 10V | 2546pF @ 25V | 3.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
FDMD8260LMOSFET 2N-CH 60V 15A 12POWER |
6,146 |
|
Datasheet | PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 15A | 5.8mOhm @ 15A, 10V | 3V @ 250µA | 68nC @ 10V | 5245pF @ 30V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
FDMD84100MOSFET 2N-CH 100V 7A PWR 3.3X5 |
9,989 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Source | - | 100V | 7A | 20mOhm @ 7A, 10V | 4V @ 250µA | 16nC @ 10V | 980pF @ 50V | 2.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power 3.3x5 |
|
|
NVMJD010N10MCLTWGMOSFET 2N-CH 100V 11.8A 8LFPAK |
3,482 |
|
Datasheet | - | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 100V | 11.8A (Ta), 62A (Tc) | 10mOhm @ 17A, 10V | 3V @ 97µA | 26.4nC @ 10V | 1795pF @ 50V | 3.1W (Ta), 84W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
FDMS3604ASMOSFET 2N-CH 30V 13A/23A POWER56 |
4,937 |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 13A, 23A | 8mOhm @ 13A, 10V | 2.7V @ 250µA | 29nC @ 10V | 1695pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
FDMS7700SMOSFET 2N-CH 30V 12A/22A POWER56 |
6,017 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 22A | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 28nC @ 10V | 1750pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

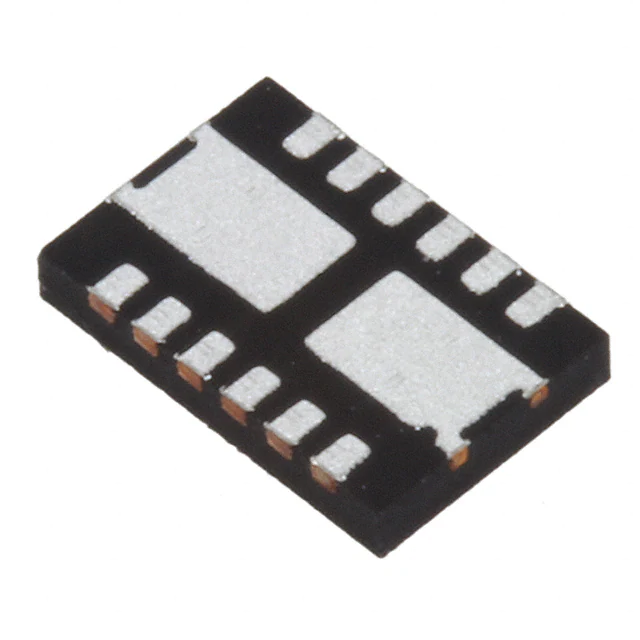

FDMD82100MOSFET 2N-CH 100V 7A 12POWER |
8,540 |
|
Datasheet | PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 7A | 19mOhm @ 7A, 10V | 4V @ 250µA | 17nC @ 10V | 1070pF @ 50V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
FDMD8280MOSFET 2N-CH 80V 11A 12POWER |
3,624 |
|
Datasheet | PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 80V | 11A | 8.2mOhm @ 11A, 10V | 4V @ 250µA | 44nC @ 10V | 3050pF @ 40V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
|
FDMD8260LET60MOSFET 2N-CH 60V 15A 12POWER |
7,272 |
|
Datasheet | PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 15A | 5.8mOhm @ 15A, 10V | 3V @ 250µA | 68nC @ 10V | 5245pF @ 30V | 1.1W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
|
FAM65CR51XZ2MOSFET 2N-CH 650V 64A APMCD-B16 |
4,920 |
|
Datasheet | - | 12-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 650V | 64A (Tc) | 51mOhm @ 20A, 10V | 5V @ 3.3mA | 123nC @ 10V | 4864pF @ 400V | 463W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | APMCD-B16 |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
