FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDG6321CMOSFET N/P-CH 25V 0.5A SC88 |
14,550 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 25V | 500mA, 410mA | 450mOhm @ 500mA, 4.5V | 1.5V @ 250µA | 2.3nC @ 4.5V | 50pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
EFC6605R-TRMOSFET 2N-CH 6EFCP |
8,638 |
|
Datasheet | - | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 2.5V Drive | - | - | - | - | 19.8nC @ 4.5V | - | 1.6W | 150°C (TJ) | - | - | Surface Mount | 6-EFCP (1.9x1.46) |
|
FW274-TL-EMOSFET 2N-CH 30V 6A 8SOP |
4,632 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 6A | 37mOhm @ 6A, 10V | 2.6V @ 1mA | 9.1nC @ 10V | 490pF @ 10V | 2.2W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
FDG8850NZMOSFET 2N-CH 30V 0.75A SC88 |
3,362 |
|
Datasheet | PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 750mA | 400mOhm @ 750mA, 4.5V | 1.5V @ 250µA | 1.44nC @ 4.5V | 120pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
FDG6304PMOSFET 2P-CH 25V 0.41A SC88 |
1,703 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 25V | 410mA | 1.1Ohm @ 410mA, 4.5V | 1.5V @ 250µA | 1.5nC @ 4.5V | 62pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|

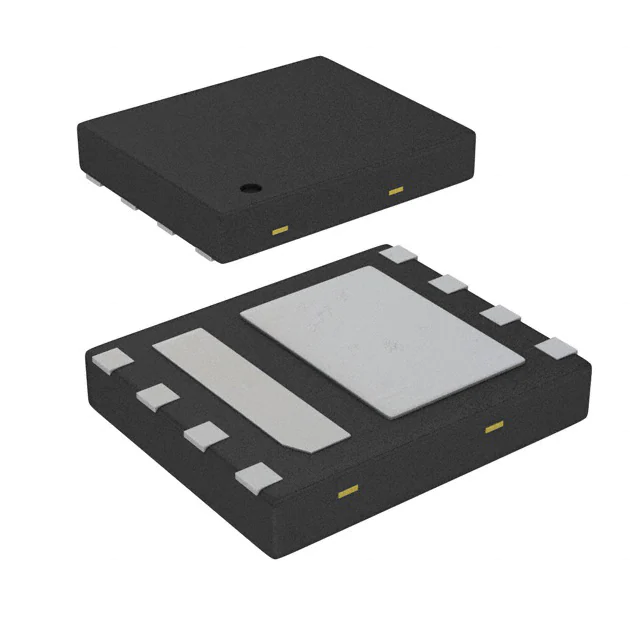

FDMS9600SMOSFET 2N-CH 30V 12A/16A 8MLP |
7,576 |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 16A | 8.5mOhm @ 12A, 10V | 3V @ 250µA | 13nC @ 4.5V | 1705pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
FDMS3600ASMOSFET 2N-CH 25V 15A/30A POWER56 |
7,940 |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 25V | 15A, 30A | 5.6mOhm @ 15A, 10V | 2.7V @ 250µA | 27nC @ 10V | 1770pF @ 13V | 2.2W, 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
|
FW356-TL-EMOSFET N/P-CH 60V 5A 8SOP |
2,000 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Bulk | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 60V | 5A (Ta), 3.5A (Ta) | 145mOhm @ 2A, 10V | 2.6V @ 1mA | 22nC @ 10V | 990pF @ 20V | 2.3W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
FDMA1025PMOSFET 2P-CH 20V 3.1A 6MICROFET |
2,875 |
|
Datasheet | PowerTrench® | 6-VDFN Exposed Pad | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 3.1A | 155mOhm @ 3.1A, 4.5V | 1.5V @ 250µA | 4.8nC @ 4.5V | 450pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
EFC4K110NUZTDGMOSFET 2N-CH 24V 25A 10WLCSP |
6,973 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 24V | 25A | - | - | 49nC @ 4.5V | - | 2.5W | - | - | - | Surface Mount | 10-WLCSP (3.2x2.1) |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
