FET, MOSFET Arrays
Review FET, MOSFET Arrays FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120DUM042AGMOSFET 2N-CH 1200V 495A |
2 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) Common Source | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1000V | 2031W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM23CTPAGMOSFET 6N-CH 1700V 122A |
3 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 122A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 588W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
MSCSM120AM042CT6LIAGMOSFET 2N-CH 1200V 495A SP6C LI |
4 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18100pF @ 1kV | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
|
MSCSM120AM042CD3AGMOSFET 2N-CH 1200V 495A D3 |
3 |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | D3 |
|
|
MSCSM70TLM05CAGMOSFET 4N-CH 700V 464A SP6C |
7 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 700V | 464A (Tc) | 4.8mOhm @ 160A, 20V | 2.4V @ 16mA | 860nC @ 20V | 18000pF @ 700V | 1277W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
|
MSCSM170HM12CAGMOSFET 4N-CH 1700V 179A |
13 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM058CT6AGMOSFET 2N-CH 1700V 353A |
3 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1.642kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170TAM15CTPAGMOSFET 6N-CH 1700V 179A |
8 |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (Phase Leg) | - | 1700V (1.7kV) | 179A (Tc) | 15mOhm @ 90A, 20V | 3.2V @ 7.5mA | 534nC @ 20V | 9900pF @ 1000V | 843W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

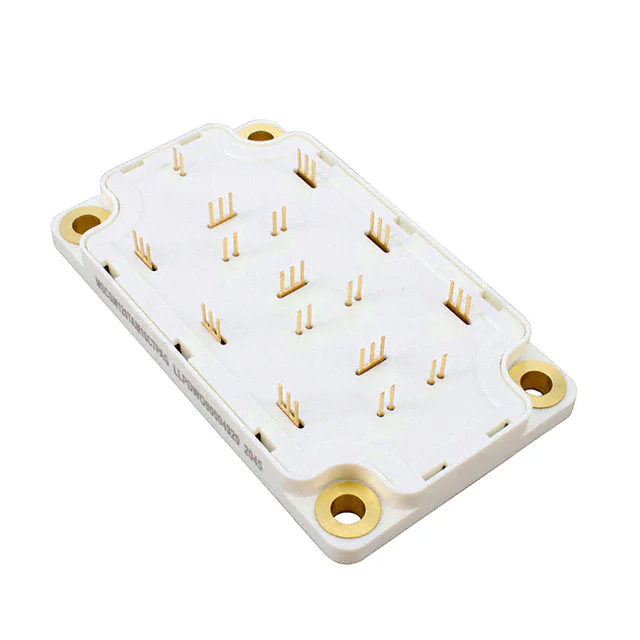

MSCSM120TAM11CTPAGMOSFET 6N-CH 1200V 251A SP6-P |
2 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 251A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1.042kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM120AM03CT6LIAGMOSFET 2N-CH 1200V 805A SP6C LI |
2 |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 805A (Tc) | 3.1mOhm @ 400A, 20V | 2.8V @ 10mA | 2320nC @ 20V | 30200pF @ 1kV | 3.215kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
Frequently Asked Questions
What are FET, MOSFET Arrays components used for?
FET, MOSFET Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FET, MOSFET Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FET, MOSFET Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
