Encoders
Explore Encoders parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

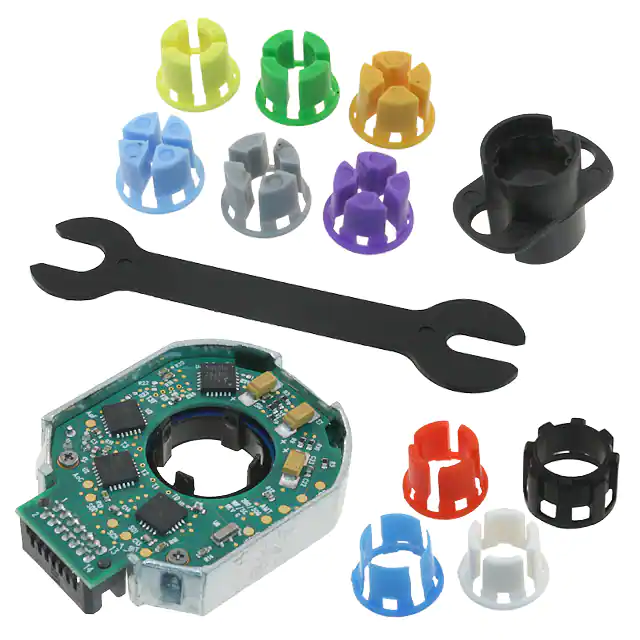

AMT303LD-VROTARY ENCODER INCREMENT 250PPR |
1,077 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 250 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 400PPR |
1,038 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 400 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 500PPR |
4,961 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 500 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 512PPR |
4,690 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 512 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 800PPR |
3,567 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 800 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 1000PPR |
2,765 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 1000 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT303LD-VROTARY ENCODER INCREMENT 1024PPR |
2,126 |
|
Datasheet | AMT303 | Box | Obsolete | Verified | Incremental | Commutation, CW, 2 Pole, with Line Driver | 1024 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
EVE-GA1F2224BROTARY ENCODER MECHANICAL 24PPR |
1,333 |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
AS5140H-ASSTROTARY ENCODER MAGNETIC 512PPR |
3,288 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Not Verified | Magnetic | PWM | 512 | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
EVE-GC2F2524MROTARY ENCODER MECHANICAL 24PPR |
3,443 |
|
Datasheet | EVEG | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-KD2F3024MROTARY ENCODER MECHANICAL 24PPR |
2,353 |
|
Datasheet | EVEK | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
AEAT-9000-1GSH0ROTARY ENCODER OPTICAL 2048PPR |
4,434 |
|
Datasheet | - | Bulk | Obsolete | Not Verified | Optical | Binary (Absolute) | 2048 | 5V | - | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|
EPS1D-F19-AE0036LROTARY ENCODER MECHANICAL 36PPR |
2,112 |
|
Datasheet | EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 36 | - | 4.8mm Dia Flatted End | No | Yes | PCB, Surface Mount | Vertical | PC Pin | 200K | - | - |
|
PEC11-4215K-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,261 |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4220F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,966 |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
4,050 |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4220K-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,350 |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4117F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,604 |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,968 |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-B24-EC0024LROTARY ENCODER MECHANICAL 24PPR |
1,028 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
