Encoders
Explore Encoders parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM14R0D-M25-L064SROTARY ENCODER OPTICAL 64PPR |
1,210 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14A0D-C24-R008SROTARY OPTICAL ENCODER - 14MM |
1,246 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 8 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
|
EM14C0D-E28-L032SROTARY OPTICAL ENCODER - 14MM |
1,598 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 32 | 4.75V ~ 5.25V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-R25-L032SROTARY OPTICAL ENCODER - 14MM |
3,254 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 32 | 4.75V ~ 5.25V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-R25-L064SROTARY OPTICAL ENCODER - 14MM |
2,477 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 64 | 4.75V ~ 5.25V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
REC16B50-201ROTARY ENCODER OPTICAL 50PPR |
1,624 |
|
Datasheet | REC16 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 50 | 5V | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-9000#T00ROTARY ENCODER OPTICAL 2000PPR |
3,688 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 2000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
C14N16N-A3ROTARY ENCODER OPTICAL 16PPR |
4,568 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
25LR15-QROTARY ENCODER MECHANICAL 24PPR |
2,777 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR22-GROTARY ENCODER MECHANICAL 16PPR |
3,183 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR22-HROTARY ENCODER MECHANICAL 16PPR |
2,584 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Hexadecimal (Absolute) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

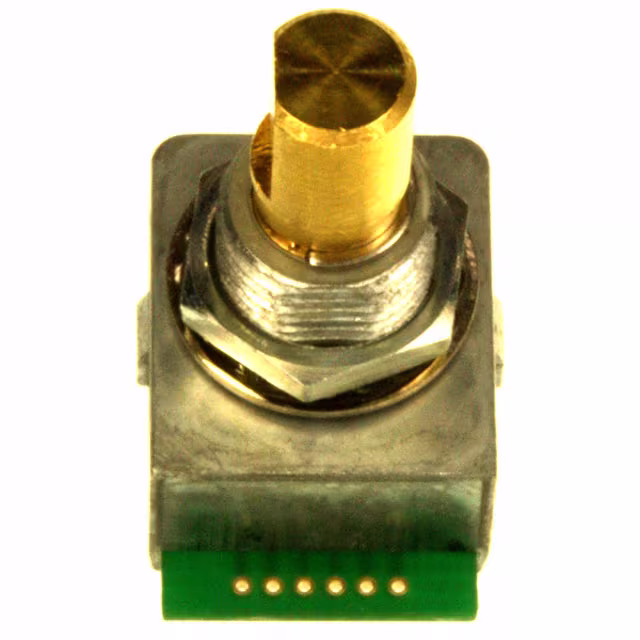

C14D16N-A3ROTARY ENCODER OPTICAL 16PPR |
2,369 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

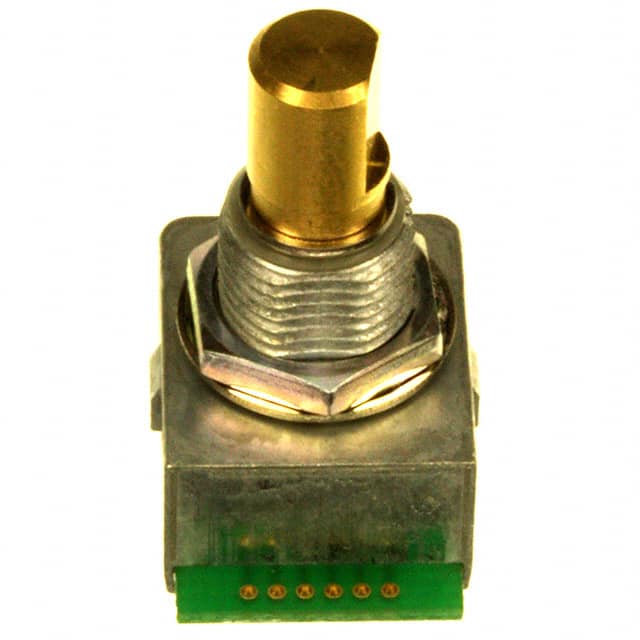

C14D32N-A3ROTARY ENCODER OPTICAL 32PPR |
3,096 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
EM14R0B-R20-L064NROTARY ENCODER OPTICAL 64PPR |
3,374 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

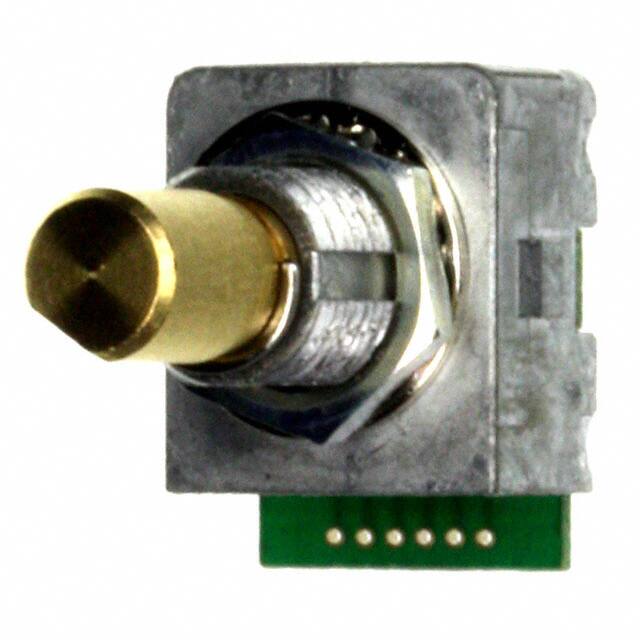

C14N16P-A3ROTARY ENCODER OPTICAL 16PPR |
2,582 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EM14A1A-C24-L032SROTARY ENCODER OPTICAL 32PPR |
1,789 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EM14R1D-R20-L032SROTARY ENCODER OPTICAL 32PPR |
4,197 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Slotted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EM14A1A-B24-R032SROTARY ENCODER OPTICAL 32PPR |
2,619 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Slotted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 200K | - | - |
|
|
EM14C1D-E24-L008SROTARY ENCODER OPTICAL 8PPR |
3,507 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/8" Dia Slotted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EM14C1D-E28-L032SROTARY ENCODER OPTICAL 32PPR |
4,676 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/8" Dia Slotted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
Frequently Asked Questions
What are Encoders components used for?
Encoders components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Encoders part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Encoders parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
