Encoders
Explore Encoders parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVE-VGHFL816BROTARY ENCODER MECHANICAL 16PPR |
1,386 |
|
Datasheet | EVEV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
3315Y-001-016LROTARY ENCODER MECHANICAL 16PPR |
217 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
3315C-111-016LROTARY ENCODER MECHANICAL 16PPR |
161 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 25K | - | - |
|
EVE-WRHJR012BROTARY ENCODER MECHANICAL 12PPR |
551 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 12 | 10V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVE-YBCAJ016BROTARY ENCODER MECHANICAL 16PPR |
399 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YBCAJ008BROTARY ENCODER MECHANICAL 8PPR |
406 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVE-UPCAH516BENCODER MECH QUAD VERT SOLDR LUG |
0 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
EVE-UPCAH508BROTARY ENCODER MECHANICAL 8PPR |
254 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
EVE-UBCAH508BROTARY ENCODER MECHANICAL 8PPR |
173 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
EVE-UBCAH516BROTARY ENCODER MECHANICAL 16PPR |
920 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
290VAB0R201B1ROTARY ENCODER MECHANICAL 20PPR |
400 |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Round End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
482016564002WS-ENTV INCREMENTAL ENCODER SWIT |
135 |
|
Datasheet | WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
PEC09-2120K-T0012ROTARY ENCODER MECHANICAL 12PPR |
885 |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ECW0J-B16-BE0024LROTARY ENCODER MECHANICAL 24PPR |
226 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1D-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
129 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

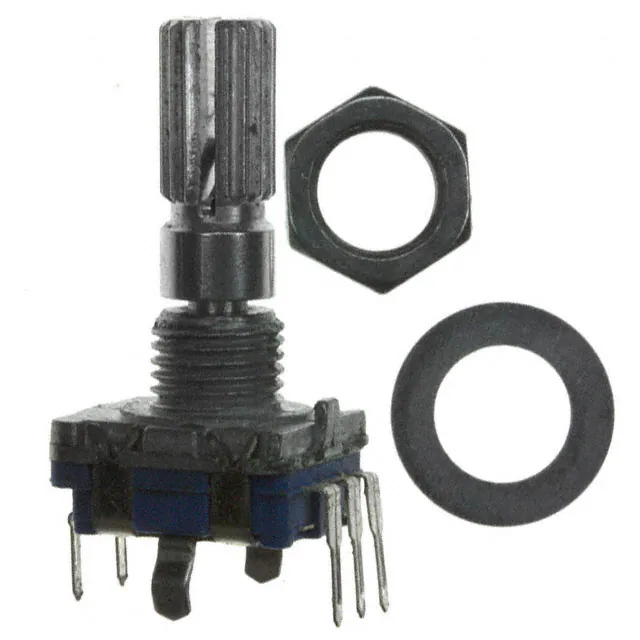

ACZ11BR1E-20KQD1-20CROTARY ENCODER INCREMENT 20PPR |
873 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
482012714003WS-ENTV INCREMENTAL ENCODER SWIT |
111 |
|
Datasheet | WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
3315Y-001-006LROTARY ENCODER MECHANICAL 6PPR |
240 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ECW0D-B24-AE0024LROTARY ENCODER MECHANICAL 24PPR |
533 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
229 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | Solder Lug | 200K | - | - |
