Microprocessors
Explore Microprocessors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMC68MH360CAI25LIC MPU M683XX 25MHZ 240FQFP |
2,967 |
|
Datasheet | 240-BFQFP | M683xx | Box | Obsolete | CPU32+ | 1 Core, 32-Bit | 25MHz | Communications; CPM | DRAM | No | - | 10Mbps (1) | - | - | 5.0V | -40°C ~ 85°C (TA) | - | - | - | Surface Mount | 240-FQFP (32x32) | SCC, SMC, SPI |
|
AM3894CCYG135IC MPU SITARA 1.35GHZ 1031FCBGA |
3,154 |
|
Datasheet | 1031-BFBGA, FCBGA | Sitara™ | Tray | Last Time Buy | ARM® Cortex®-A8 | 1 Core, 32-Bit | 1.35GHz | Multimedia; NEON™ SIMD | DDR2, DDR3 | Yes | HDMI, HDVPSS | 10/100/1000Mbps (2) | SATA 3Gbps (1) | USB 2.0 + PHY (2) | 1.8V, 3.3V | 0°C ~ 95°C (TJ) | - | - | - | Surface Mount | 1031-FCBGA (25x25) | I2C, McASP, McBSP, SPI, SD/SDIO, UART |
|
MC68020FE16EIC MPU M680X0 166MHZ 132CQFP |
1,872 |
|
Datasheet | 132-BCQFP | M680x0 | Tray | Obsolete | 68020 | 1 Core, 32-Bit | 166MHz | - | - | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 132-CQFP (24x24) | - |
|

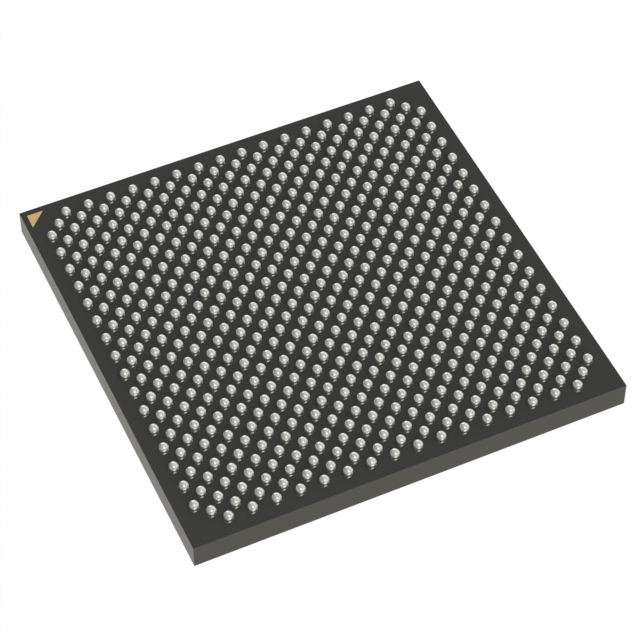

MIMX8QX5FVLFZACI.MX 8QUADXPLUS 21X21 |
2,896 |
|
Datasheet | 609-BFBGA | i.MX8Q | Tray | Active | ARM® Cortex®-A53, ARM® Cortex®-M4F | 3 Core, 64-Bit | 1.2GHz, 264MHz | Multimedia; NEON, Hi-Fi4 DSP | DDR3L SDRAM, LPDDR4 DRAM | Yes | LCD, LVDS, MIPI-CSI, MIPI-DSI | 10/100/1000Mbps (2) | - | USB 2.0 OTG + PHY (1), USB 3.0 OTG + PHY (1) | 1.8V, 2.5V, 3.3V | - | - | - | 3DES, A-HAB, ARM TZ, CAAM, DES, MD5, SHA, SNVS | Surface Mount | 609-FBGA (21x21) | CANbus, I2C, MMC/SD/SDIO, PCIe, QSPI, UART |
|
KMC68EN360VR25VLIC MPU M683XX 25MHZ 357BGA |
3,867 |
|
Datasheet | 357-BBGA | M683xx | Box | Obsolete | CPU32+ | 1 Core, 32-Bit | 25MHz | Communications; CPM | DRAM | No | - | 10Mbps (1) | - | - | 3.3V | 0°C ~ 70°C (TA) | - | - | - | Surface Mount | 357-PBGA (25x25) | SCC, SMC, SPI |
|
R9A09G057H44GBG#BC0RZ/V2H CA55 QUAD ISP&GPU 19MM FU |
1,648 |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCIMX6QP6AVT8AAIC MPU I.MX6QP 852MHZ 624FCBGA |
3,638 |
|
Datasheet | 624-FBGA, FCBGA | i.MX6QP | Tray | Active | ARM® Cortex®-A9 | 4 Core, 32-Bit | 852MHz | Multimedia; NEON™ SIMD | LPDDR2, DDR3L, DDR3 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|

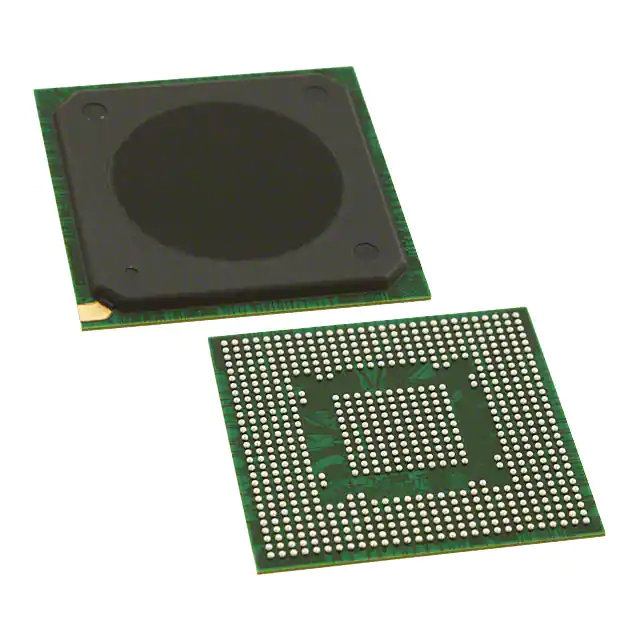

P1021PSE2HFBIC MPU Q OR IQ 800MHZ 689BGA |
4,248 |
|
Datasheet | 689-TePBGA II | QorIQ P1 | Tray | Obsolete | PowerPC e500v2 | 2 Core, 32-Bit | 800MHz | Communications; QUICC Engine, Security; SEC 3.3 | DDR2, DDR3 | No | - | 10/100/1000Mbps (3) | - | USB 2.0 + PHY (2) | - | 0°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-PBGA-PGE | DUART, I2C, MMC/SD, SPI |
|
LS1026AXN8Q1AIC MPU QORIQ 1.6GHZ 780FCPBGA |
1,327 |
|
Datasheet | 780-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A72 | 2 Core, 64-Bit | 1.6GHz | - | DDR4 | - | - | 10GbE (2), 2.5GbE (1), 1GbE (4) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 780-FCPBGA (23x23) | - |
|
T1013NSN7PQAIC MPU QORIQ T1 1.4GHZ 525FCPBGA |
4,889 |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1014NXE7KQAIC MPU QORIQ T1 1GHZ 780FBGA |
3,466 |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
KMPC8377ECVRALGIC MPU MPC83XX 667MHZ PBGA689 |
1,663 |
|
Datasheet | 689-BBGA Exposed Pad | MPC83xx | Tray | Obsolete | PowerPC e300c4s | 1 Core, 32-Bit | 667MHz | Security; SEC 3.0 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | SATA 3Gbps (2) | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, MMC/SD, PCI, SPI |
|
|
KMPC8378ECVRALGIC MPU MPC83XX 667MHZ PBGA689 |
4,916 |
|
Datasheet | 689-BBGA Exposed Pad | MPC83xx | Tray | Obsolete | PowerPC e300c4s | 1 Core, 32-Bit | 667MHz | Security; SEC 3.0 | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 125°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 689-TEPBGA II (31x31) | DUART, I2C, MMC/SD, PCI, SPI |
|
|
T1014NXN7MQAIC MPU QORIQ T1 1.2GHZ 780FBGA |
2,593 |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1024NXN7KQAIC MPU QORIQ T1 1GHZ 780FBGA |
1,216 |
|
Datasheet | 780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
MPC8347EVVAJDIC MPU MPC83XX 533MHZ 672LBGA |
1,301 |
|
Datasheet | 672-LBGA | MPC83xx | Tray | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 533MHz | Security; SEC | DDR | No | - | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (2) | 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 672-LBGA (35x35) | DUART, I2C, PCI, SPI |
|
|
R9A09G057H48GBG#BC0RZ/V2H CA55 QUAD ISP&GPU SECURE1 |
1,858 |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MPC8360ECVVAJDGIC MPU MPC83XX 533MHZ 740TBGA |
4,387 |
|
Datasheet | 740-LBGA | MPC83xx | Tray | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 533MHz | Communications; QUICC Engine, Security; SEC | DDR, DDR2 | No | - | 10/100/1000Mbps (1) | - | USB 1.x (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 740-TBGA (37.5x37.5) | DUART, HDLC, I2C, PCI, SPI, UART |
|
|
T1023NXE7KQAIC MPU QORIQ T1 1GHZ 525FCPBGA |
3,364 |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
T1023NXN7MQAIC MPU QORIQ T1 1.2GHZ 525FCPBGA |
2,659 |
|
Datasheet | 525-FBGA, FCBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 2 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 525-FCPBGA (19x19) | I2C, MMC/SD, PCIe, SPI, UART |
Frequently Asked Questions
What are Microprocessors components used for?
Microprocessors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Microprocessors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Microprocessors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
