CPLDs (Complex Programmable Logic Devices)
Review CPLDs (Complex Programmable Logic Devices) Embedded components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATF750LVC-15PIIC CPLD 10MC 15NS 24DIP |
3,206 |
|
Datasheet | ATF750LVC | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 3V ~ 5.5V | - | 10 | - | 10 | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|
ATF750LVC-15SCIC CPLD 10MC 15NS 24SO |
1,950 |
|
Datasheet | ATF750LVC | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Verified | EE PLD | 15 ns | 3V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 24-SO |
|
|
ATF750LVC-15SIIC CPLD 10MC 15NS 24SO |
3,135 |
|
Datasheet | ATF750LVC | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 3V ~ 5.5V | - | 10 | - | 10 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SO |
|
ATV2500B-12JCIC CPLD 24MC 12NS 44PLCC |
4,823 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 12 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|

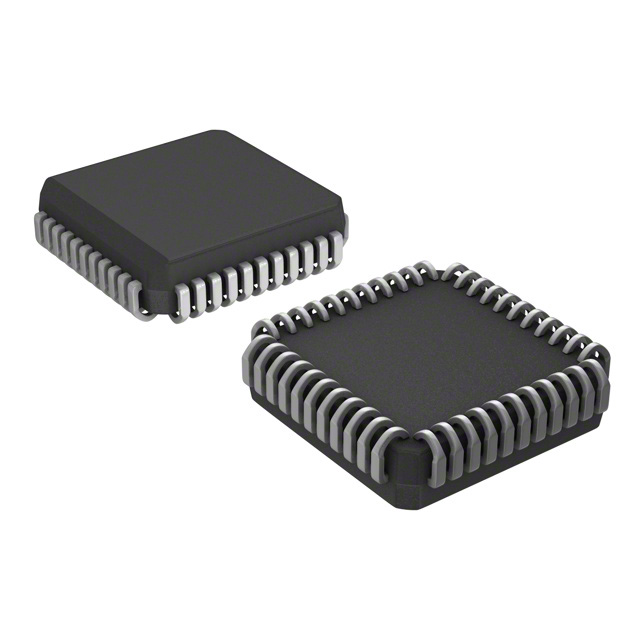

ATV2500B-12KCIC CPLD 24MC 12NS 44JLCC |
1,709 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 12 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500B-15KCIC CPLD 24MC 15NS 44JLCC |
1,080 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 15 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500BL-20JIIC CPLD 24MC 20NS 44PLCC |
3,273 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATV2500BL-20KCIC CPLD 24MC 20NS 44JLCC |
4,125 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 20 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
|
ATV2500BL-20KIIC CPLD 24MC 20NS 44JLCC |
1,805 |
|
Datasheet | ATV2500B(L) and BQ(L) | 44-CLCC Window (J-Lead) | Tube | Obsolete | Not Verified | UV Erasable | 20 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-JLCC (16.63x16.63) |
|
ATV2500BQ-25DIIC CPLD 24MC 25NS 40CERDIP |
3,650 |
|
Datasheet | ATV2500B(L) and BQ(L) | 40-CDIP (0.600", 15.24mm) Window | Tube | Obsolete | Not Verified | UV Erasable | 25 ns | 4.5V ~ 5.5V | - | 24 | - | 24 | -40°C ~ 85°C (TA) | - | - | Through Hole | 40-Cerdip |
Frequently Asked Questions
What are CPLDs (Complex Programmable Logic Devices) components used for?
CPLDs (Complex Programmable Logic Devices) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right CPLDs (Complex Programmable Logic Devices) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
